Product Details
Data Sheet | Download Datasheet |
---|---|
Usually Ships Within | 16-18 Weeks |
Factory Location | Elgin, Illinois |
Material | Aluminum body, Aluminum Flange and Cover |
Shaft Size | 13T 16/32DP |
Shaft Type | Splined |
Pressure Rating | 3335 |
Rotation | Clockwise |
Displacement | 20 |
Gpm At 1800 Rpm | 9.51 |
Max Speed | 3300RPM |
Inlet Port | #16 SAE (1") |
Outlet Port | #12 SAE (3/4") |
Mount | SAE B 2-Bolt |
Country of Manufacture | Italy |
Height | 6.14 |
Length | 6.85 |
Width | 5.14 |
Description

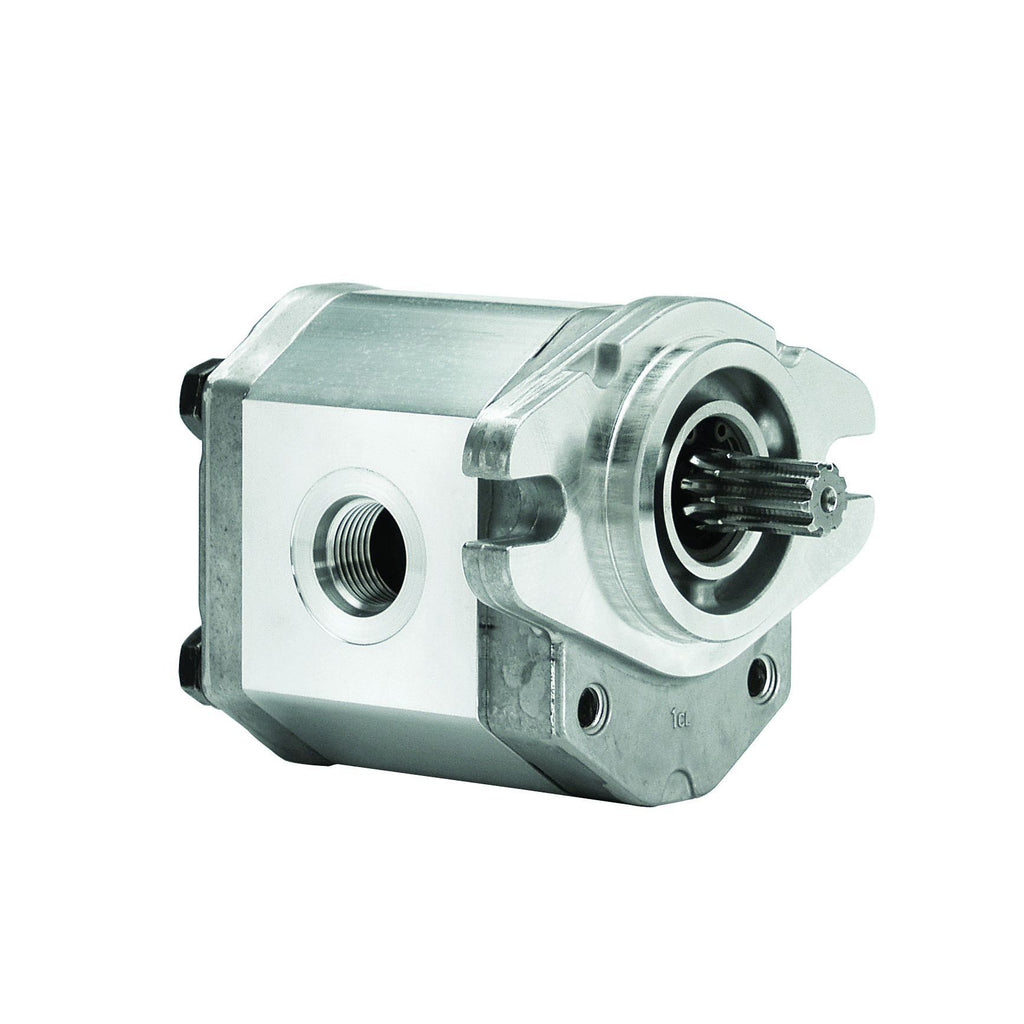

Marzocchi ALP gear pumps consist of a gear pair supported by two aluminum bushings, a body, a securing flange, and a cover. The pump body, flange, and cover are made of special high-resistant aluminum alloys for minimized deformation, even under high pressure. Gears are made of special steel which are ground and fine-finished, for an excellent surface profile. Proper tooth profile design and geometric proportions ensure low pulsation and noise levels during pump operation.
