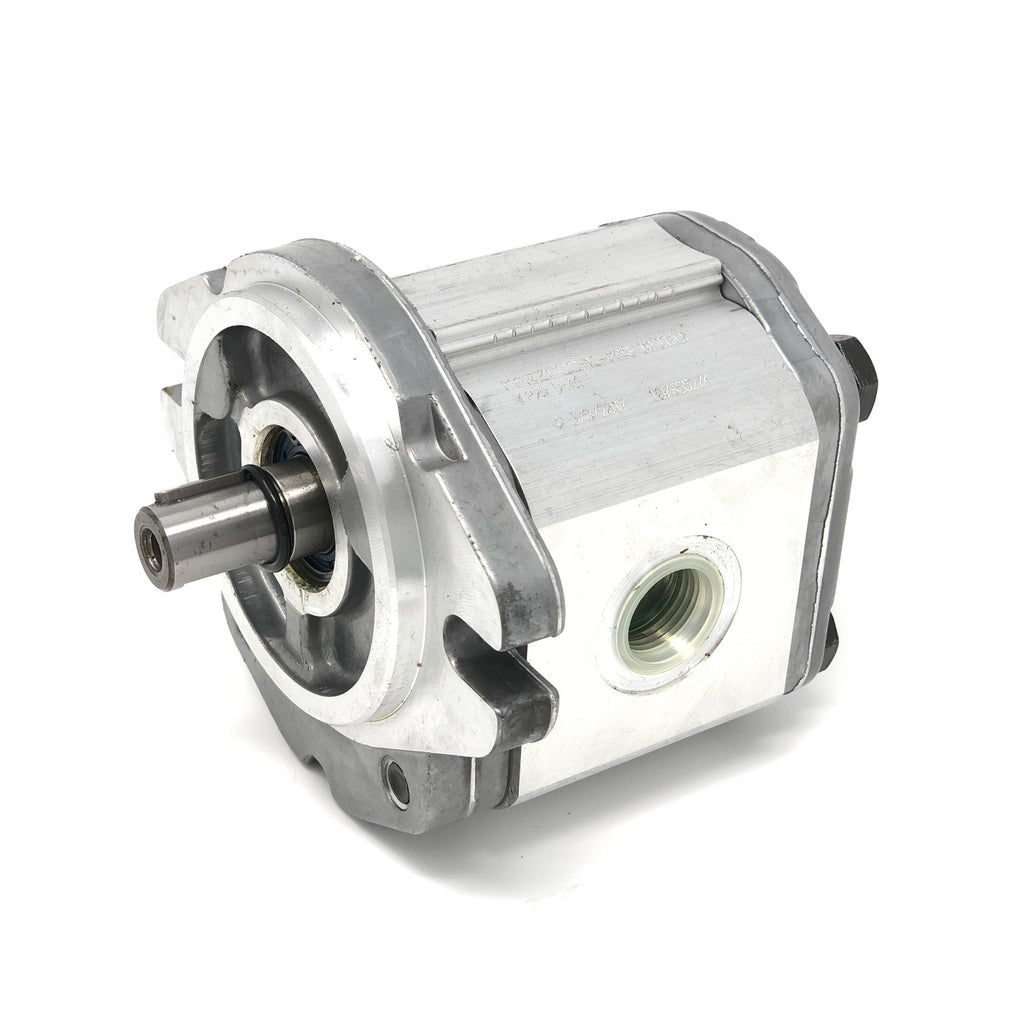

ALP1A-D-11 : Marzocchi Gear Pump, CW, 7.6cc (0.4636in3), 3.61 GPM, 2900psi, 3500 RPM, #10 SAE (5/8") In, #8 SAE (1/2") Out, Keyed Shaft 1/2" Bore x 1/8" Key, SAE AA 2-Bolt Mount
Roll over image to zoom in Click on image to zoom
ALP1A-D-11 : Marzocchi Gear Pump, CW, 7.6cc (0.4636in3), 3.61 GPM, 2900psi, 3500 RPM, #10 SAE (5/8") In, #8 SAE (1/2") Out, Keyed Shaft 1/2" Bore x 1/8" Key, SAE AA 2-Bolt Mount

ALP1A-D-11 : Marzocchi Gear Pump, CW, 7.6cc (0.4636in3), 3.61 GPM, 2900psi, 3500 RPM, #10 SAE (5/8") In, #8 SAE (1/2") Out, Keyed Shaft 1/2" Bore x 1/8" Key, SAE AA 2-Bolt Mount

Save $31.73
MarzocchiSKU: ALP1A-D-11
16-18 Weeks
02.18.A.103B
Price:
$199.27 $231.00

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet Download Datasheet
Usually Ships Within 16-18 Weeks
Factory Location Elgin, Illinois
Material Aluminum body, Aluminum Flange and Cover
Shaft Size 1/2" Bore x 1/8" Key
Shaft Type Keyed
Pressure Rating 2900
Rotation Clockwise
Displacement 7.6
Gpm At 1800 Rpm 3.61
Max Speed 3500RPM
Inlet Port #10 SAE (5/8")
Outlet Port #8 SAE (1/2")
Mount SAE AA 2-Bolt
Country of Manufacture Italy
Height 3.41
Length 4.04
Width 3.96

Description

Marzocchi ALP gear pumps consist of a gear pair supported by two aluminum bushings, a body, a securing flange, and a cover. The pump body, flange, and cover are made of special high-resistant aluminum alloys for minimized deformation, even under high pressure. Gears are made of special steel which are ground and fine-finished, for an excellent surface profile. Proper tooth profile design and geometric proportions ensure low pulsation and noise levels during pump operation.
