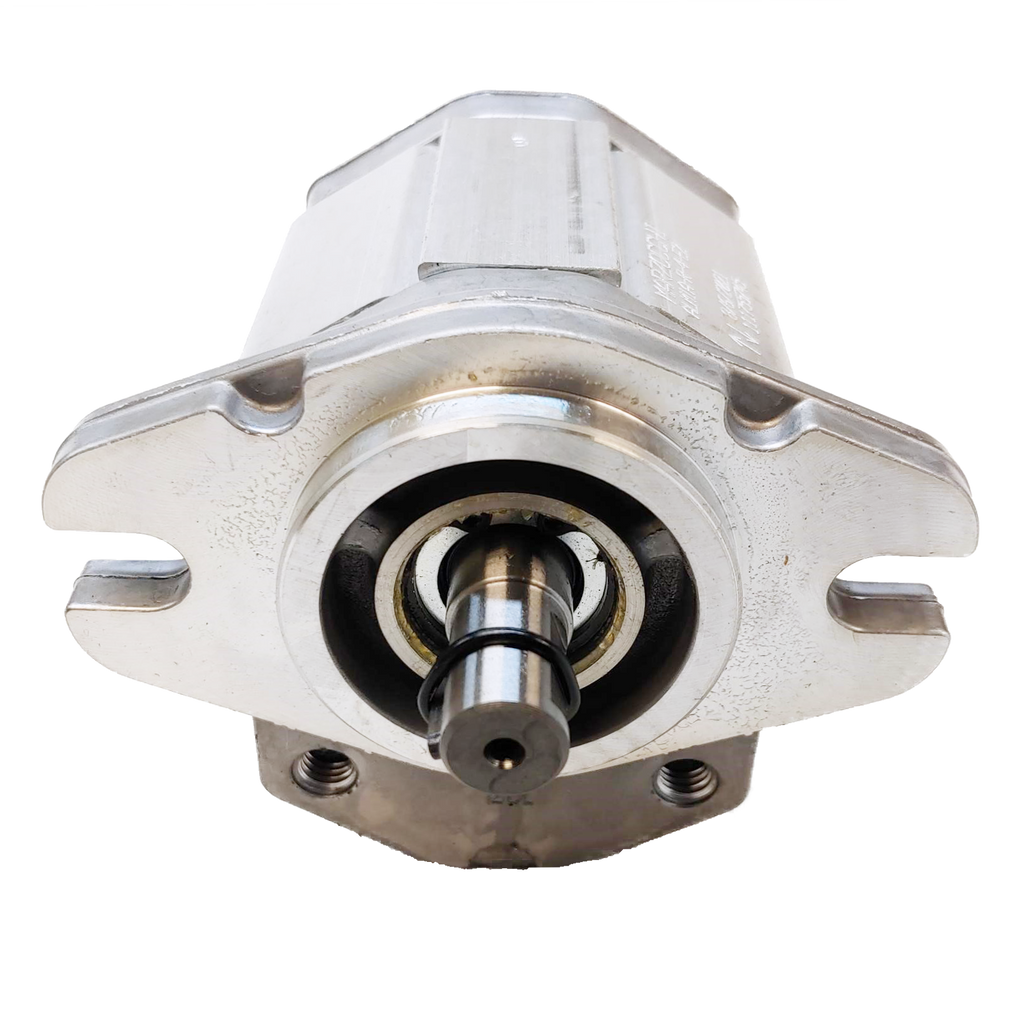

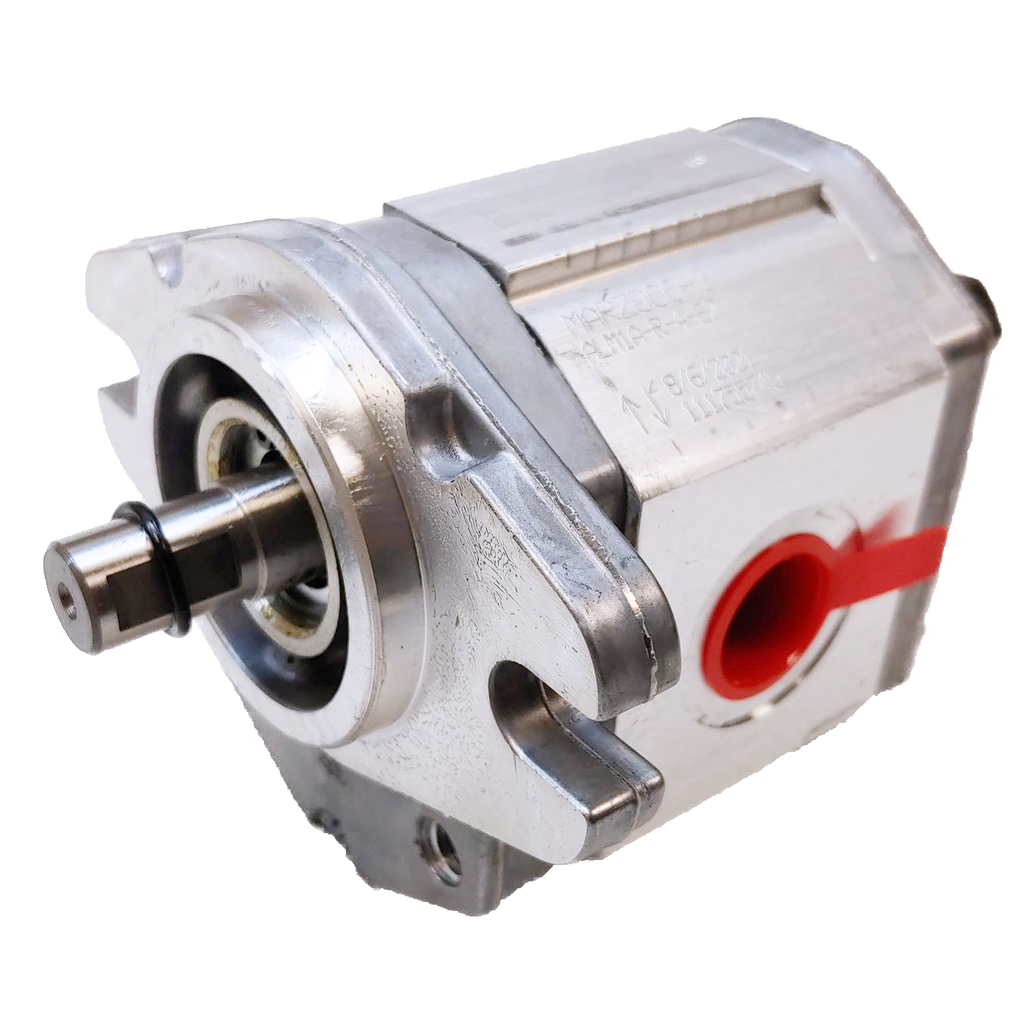

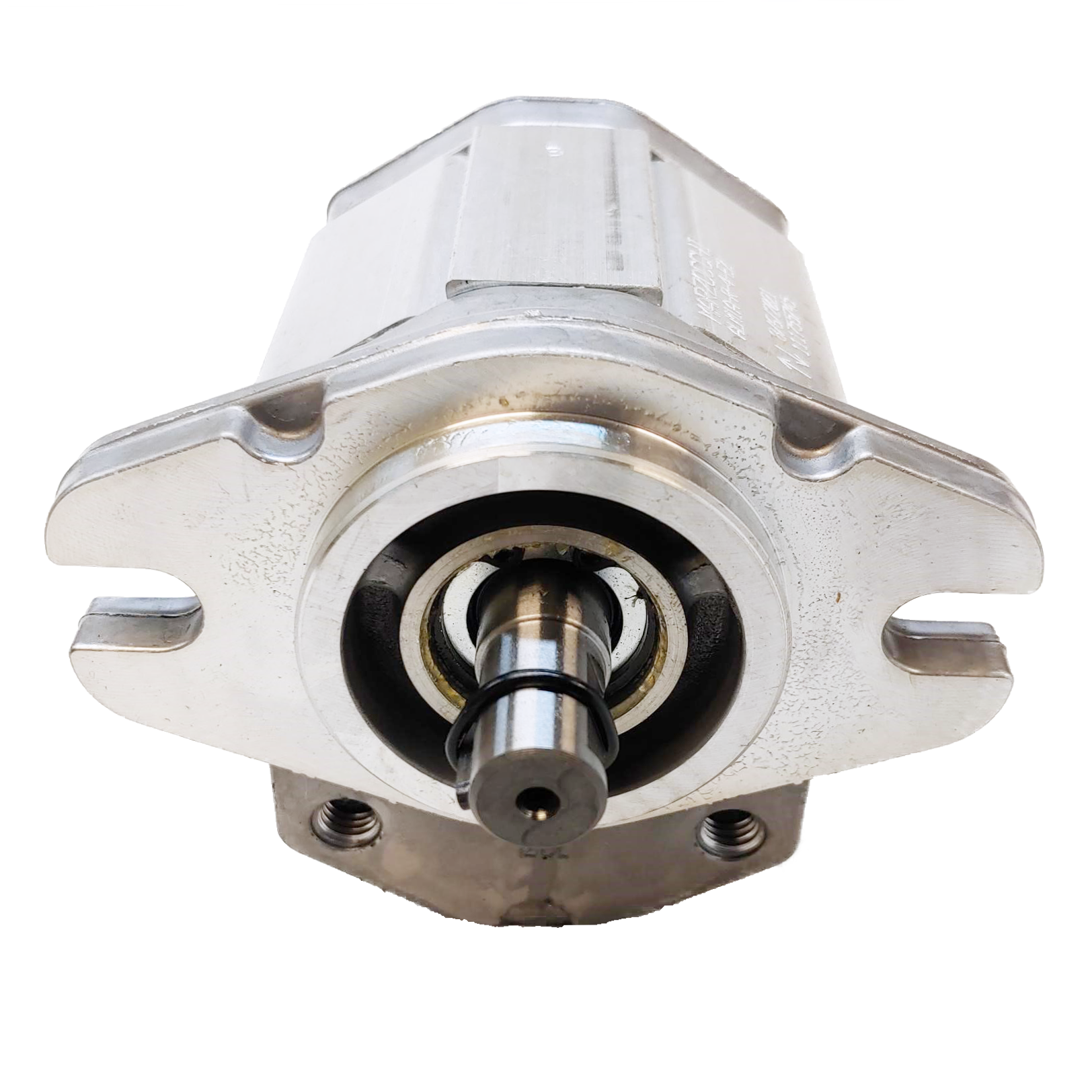

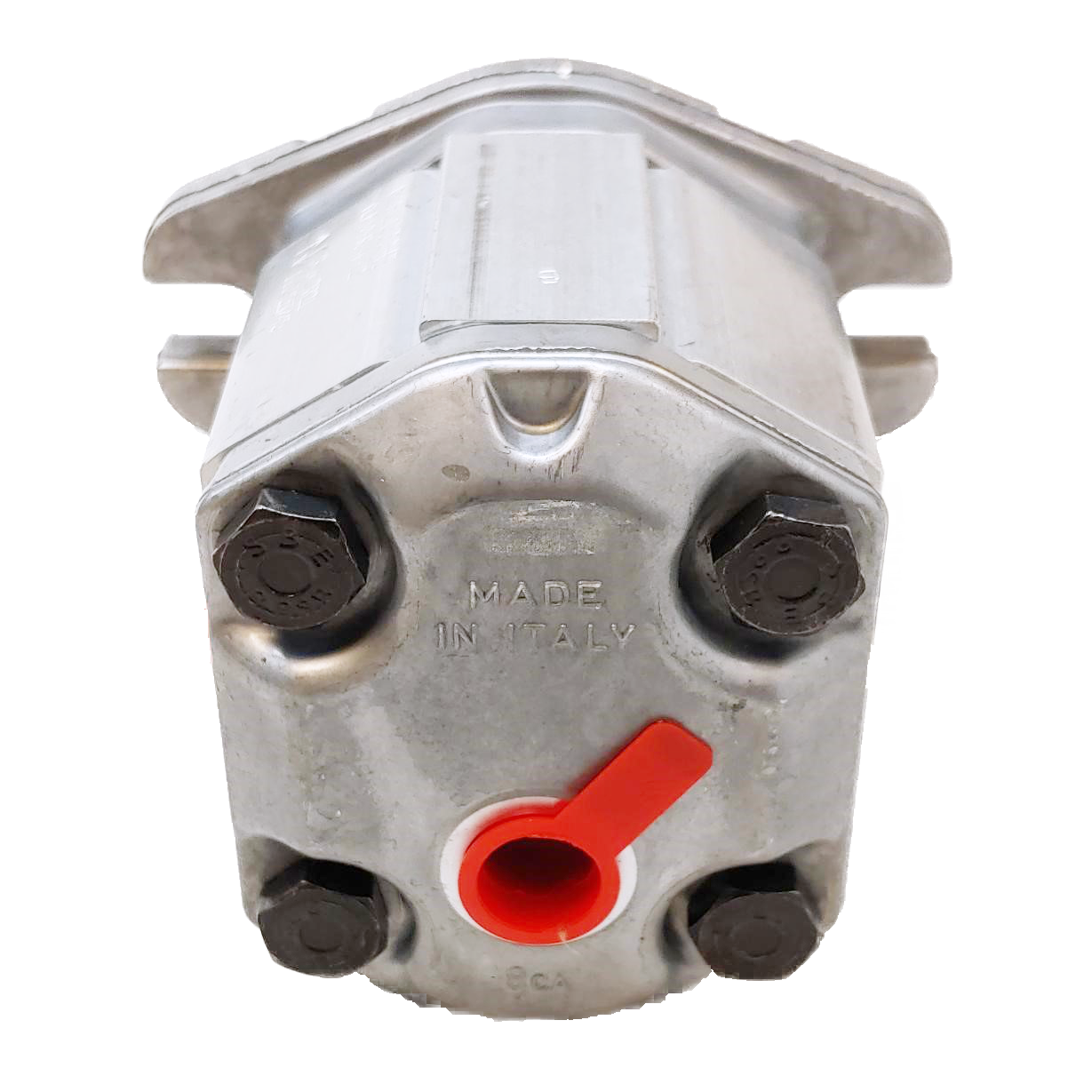

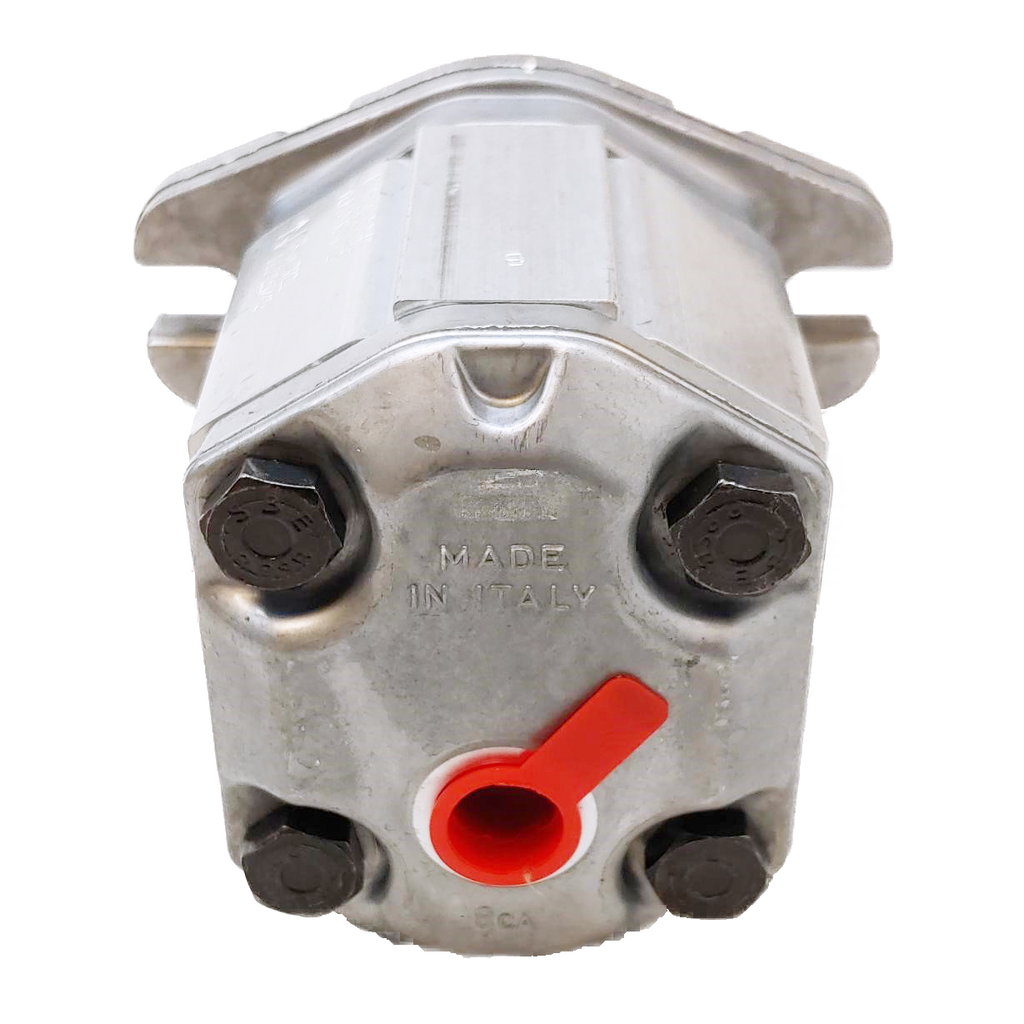

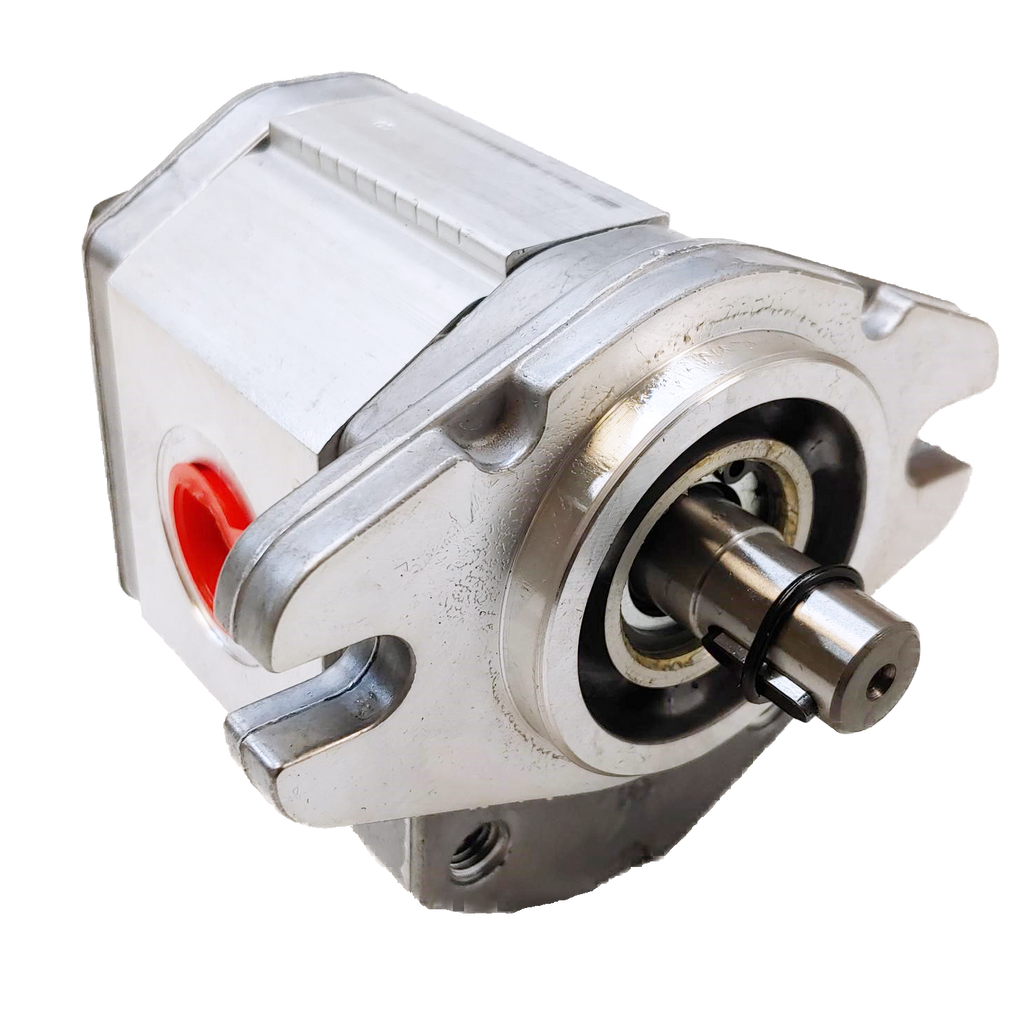

ALM1A-R-5-E2 : Marzocchi Gear Motor, Bidirectional, 3.5cc, 3625psi rated, 5000RPM, 0.5 (1/2") #8 SAE ports, 1/2" Bore x 1/8" Keyed Shaft
ALM1A-R-5-E2 : Marzocchi Gear Motor, Bidirectional, 3.5cc, 3625psi rated, 5000RPM, 0.5 (1/2") #8 SAE ports, 1/2" Bore x 1/8" Keyed Shaft
ALM1A-R-5-E2 : Marzocchi Gear Motor, Bidirectional, 3.5cc, 3625psi rated, 5000RPM, 0.5 (1/2") #8 SAE ports, 1/2" Bore x 1/8" Keyed Shaft
ALM1A-R-5-E2 : Marzocchi Gear Motor, Bidirectional, 3.5cc, 3625psi rated, 5000RPM, 0.5 (1/2") #8 SAE ports, 1/2" Bore x 1/8" Keyed Shaft
Roll over image to zoom in Click on image to zoom
ALM1A-R-5-E2 : Marzocchi Gear Motor, Bidirectional, 3.5cc, 3625psi rated, 5000RPM, 0.5 (1/2") #8 SAE ports, 1/2" Bore x 1/8" Keyed ShaftALM1A-R-5-E2 : Marzocchi Gear Motor, Bidirectional, 3.5cc, 3625psi rated, 5000RPM, 0.5 (1/2") #8 SAE ports, 1/2" Bore x 1/8" Keyed ShaftALM1A-R-5-E2 : Marzocchi Gear Motor, Bidirectional, 3.5cc, 3625psi rated, 5000RPM, 0.5 (1/2") #8 SAE ports, 1/2" Bore x 1/8" Keyed ShaftALM1A-R-5-E2 : Marzocchi Gear Motor, Bidirectional, 3.5cc, 3625psi rated, 5000RPM, 0.5 (1/2") #8 SAE ports, 1/2" Bore x 1/8" Keyed Shaft

ALM1A-R-5-E2 : Marzocchi Gear Motor, Bidirectional, 3.5cc, 3625psi rated, 5000RPM, 0.5 (1/2") #8 SAE ports, 1/2" Bore x 1/8" Keyed Shaft

Save $24.01
MarzocchiSKU: ALM1A-R-5-E2
16-Weeks
Price:
$267.99 $292.00

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 16-Weeks
Factory Location Illinois
Material Aluminum Body Aluminum Flange And Cover
Type Reversible Motor
Shaft Size 1/2" Bore x 1/8" Key
Shaft Type Keyed
Rotation Bidirectional
Displacement 3.5 (cc)
Max Speed 5000 RPM
Inlet Port 0.5 (1/2") #8 SAE
Outlet Port 0.5 (1/2") #8 SAE
Mount SAE AA 2-Bolt
Motor Pressure Rating 3625
Country of Manufacture Italy
Height 3.4
Length 2.83
Width 4.04

Description

Marzocchi Gear Motors may be unidirectional or bidirectional and manufactured in three different size groups. A very good power to weight ratio and power to size ratio allows for a wide range of displacements within each group (between 2.8 and 87cc per revolution. The drain is always external and it is through a thread port on the cover.
