Product Details
Data Sheet | Download Datasheet |
---|---|
Usually Ships Within | 1-3 Days |
Factory Stock | 4.0 |
Factory Location | Mishawaka, Indiana |
Solid Model | Click here to download |
Material | Aluminum |
Port Size | #4 SAE (1/4") |
Pressure Rating | 3000 |
Port Configuration | 180 Degree |
Number Of Stations | Two Station |
Height | 1.75 inches |
Length | 3.88 inches |
Width | 1.75 inches |
Weight | 0 |
Description

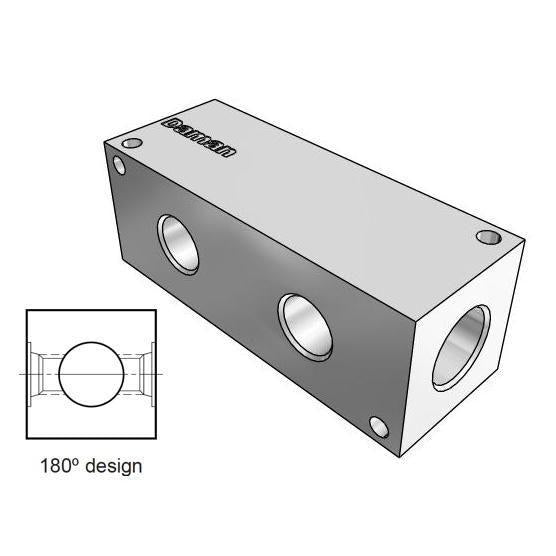

Daman Header Blocks, also known as distribution manifolds, do not have valve or pattern machined features, only ports. The purpose is to connect several oil lines with one supply (pressure) or return (tank) port. A Zero Degree Header Manifold has the outlet port on one side only. A 90 Degree Header Manifold has the outlet ports on two adjacent sides. A 180 Degree Header Manifold has the outlet ports on two opposite sides. These are available with up to 10 stations, with SAE or NPT port threads.
