Product Details
Data Sheet | Download Datasheet |
---|---|
Usually Ships Within | 5 Days |
Factory Location | Cincinnati, Ohio and Houston, Texas |
Port Size | 1" SAE Code 61 |
Style | Two-Way Block Body Flat Face Ball Valve |
O Ring Seals | Buna |
Pressure Rating | 5000 |
Body Material | Carbon Steel |
Series | AEF |
Ball Seal | POM |
Ball Pattern | On/Off |
Ball Valve Pressure Range | High Pressure (5000 to 9999psi) |
Flow Style | Two-Way |
Country of Manufacture | China |
Height | 2.56 |
Length | 5.83 |
Width | 2.56 |
Weight | 8.6 |
Ball Valve Type | Standard |
Description

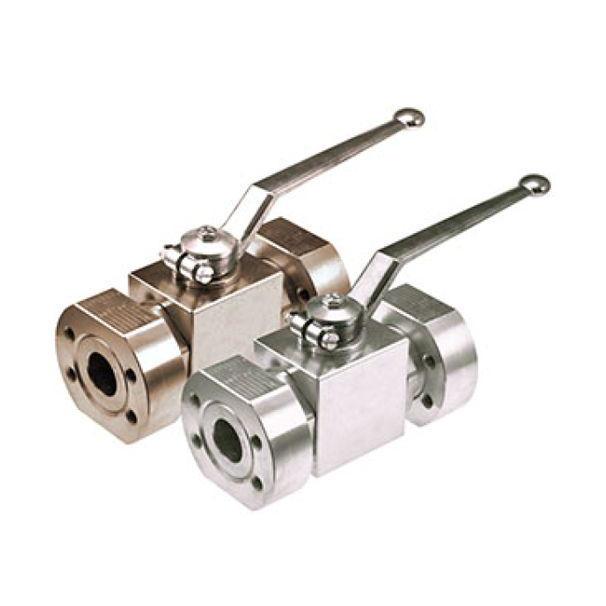

The Anchor Fluid Power AEF Series ball valve is a two-way block body flat face flange carbon steel design with zinc chromate plating and is RoHS compliant.
