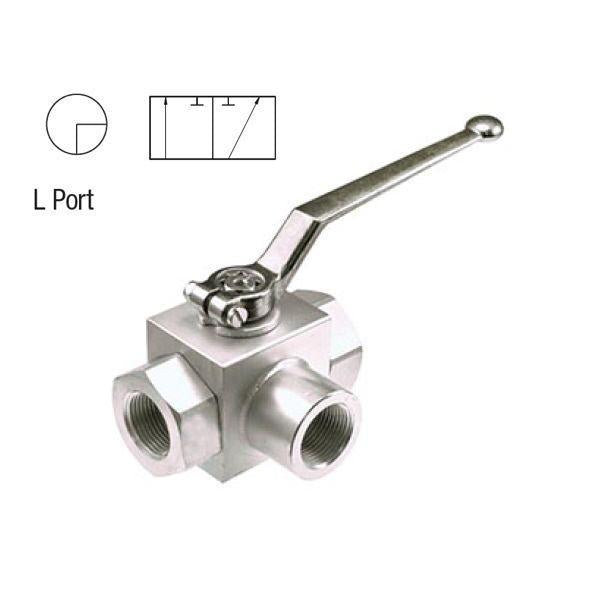

AE3KLS#4-11DB : AFP 3-Way Block Body Threaded Ball Valve, 5800psi rated, Steel, #4 SAE (1/4")
Roll over image to zoom in Click on image to zoom
AE3KLS#4-11DB : AFP 3-Way Block Body Threaded Ball Valve, 5800psi rated, Steel, #4 SAE (1/4")

AE3KLS#4-11DB : AFP 3-Way Block Body Threaded Ball Valve, 5800psi rated, Steel, #4 SAE (1/4")

Save $36.90
Anchor Fluid PowerSKU: AE3KLS#4-11DB
5 Days
Price:
$126.99 $163.89

Product Details

Data Sheet Download Datasheet
Usually Ships Within 5 Days
Factory Location Cincinnati, Ohio and Houston, Texas
Port Size #4 SAE (1/4")
Style Three-Way Block Body Threaded Ball Valve
O Ring Seals Buna
Pressure Rating 5800
Body Material Carbon Steel
Series AE3
Ball Seal POM
Ball Pattern L-Bore Diverter
Ball Valve Pressure Range High Pressure (5000 to 9999psi)
Flow Style Three-Way
Country of Manufacture China
Height 1.38
Length 2.8
Width 1.91
Weight 1.2
Ball Valve Type Standard

Description

The Anchor Fluid Power AE3K Series ball valve is a three-way block body threaded, 'true' 3-way valve, meaning this valve may be fully pressurized on all ports. This valve also offers a carbon steel design with zinc chromate plating and is RoHS compliant.
