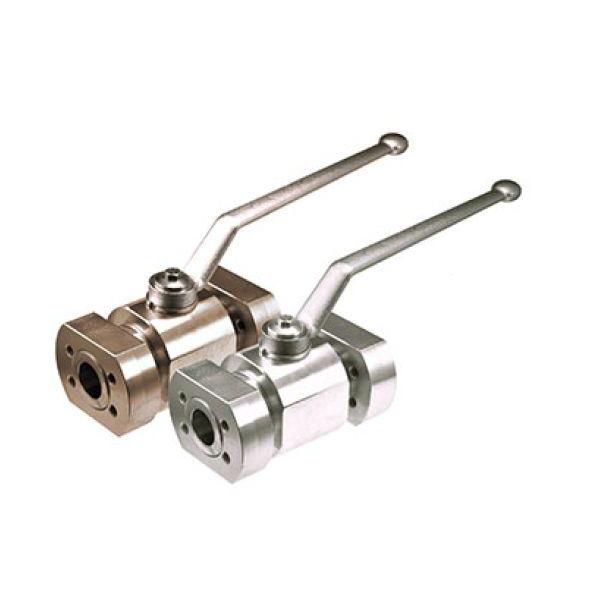

ABF3#32-11DBL : AFP 2-Way Round Body Flat Face Ball Valve, 3000psi rated, Steel, 2" SAE C61 Companion with Lock
Roll over image to zoom in Click on image to zoom
ABF3#32-11DBL : AFP 2-Way Round Body Flat Face Ball Valve, 3000psi rated, Steel, 2" SAE C61 Companion with Lock

ABF3#32-11DBL : AFP 2-Way Round Body Flat Face Ball Valve, 3000psi rated, Steel, 2" SAE C61 Companion with Lock

Anchor Fluid PowerSKU: ABF3#32-11DBL
5 Days
Price:
$1,114.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 5 Days
Factory Location Cincinnati, Ohio and Houston, Texas
Port Size 2" SAE Code 61
Style Two-Way Round Body Flat Face Ball Valve
O Ring Seals Buna
Pressure Rating 3000
Body Material Carbon Steel
Series ABF
Ball Seal POM
Ball Pattern On/Off
Ball Valve Pressure Range Medium Pressure (1000 to 4999psi)
Flow Style Two-Way
Country of Manufacture China
Height 4.49
Length 7.72
Width 4.49
Weight 33.8
Ball Valve Type Standard

Description

The Anchor Fluid Power ABF Series ball valve is a two-way round body flat face flange carbon steel design with zinc chromate plating and is RoHS compliant.
