Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Swivel |
| Series | A-FMOL |
| Country of Manufacture | Italy |
| Height | 2.36 |
| Length | 3.19 |
| Width | 2.36 |
| Weight | 1.28 |
| Side 1 Size | 1 1/2 (-24) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | M52x2 (-L42) |
| Side 2 Type | Light Duty DIN Tube |
Description

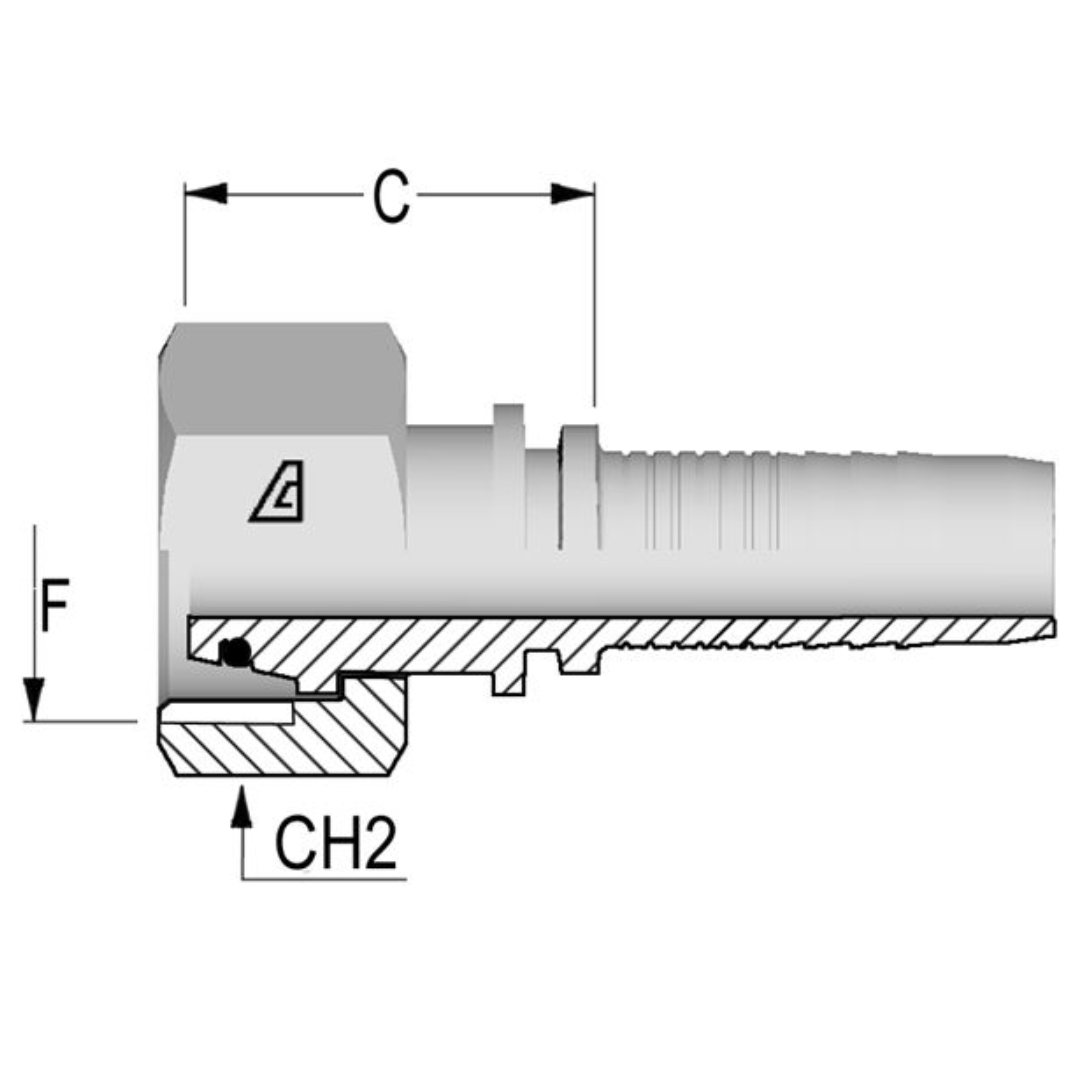

The Alfagomma A-FMOL Two-Piece Fittings are straight, carbon steel hose fittings designed to connect hoses to metric O-ring female swivel connections with a 24° seat, used with DIN 3865 light duty tubes. These fittings are part of the A Series, designed for wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and smaller ID spiral wire reinforced hoses, ranging from ³⁄₁₆" to 2" in diameter. Ferrules are small, robust components that secure the hose to the fitting, ensuring a leak-free and durable connection. The key difference between two-piece and one-piece fittings is that two-piece fittings consist of separate components, allowing for easier maintenance, disassembly, and replacement of individual parts, whereas one-piece fittings are a single, fixed unit. This flexibility makes two-piece fittings ideal for various hose types, offering reliable, long-lasting performance across multiple fluid power applications.
