Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Swivel |
| Series | A-FKOS |
| Country of Manufacture | Italy |
| Height | 2.17 |
| Length | 3.46 |
| Width | 2.17 |
| Weight | 1.93 |
| Side 1 Size | 1 1/2 (-24) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | M42x1.5 |
| Side 2 Type | Komatsu |
Description

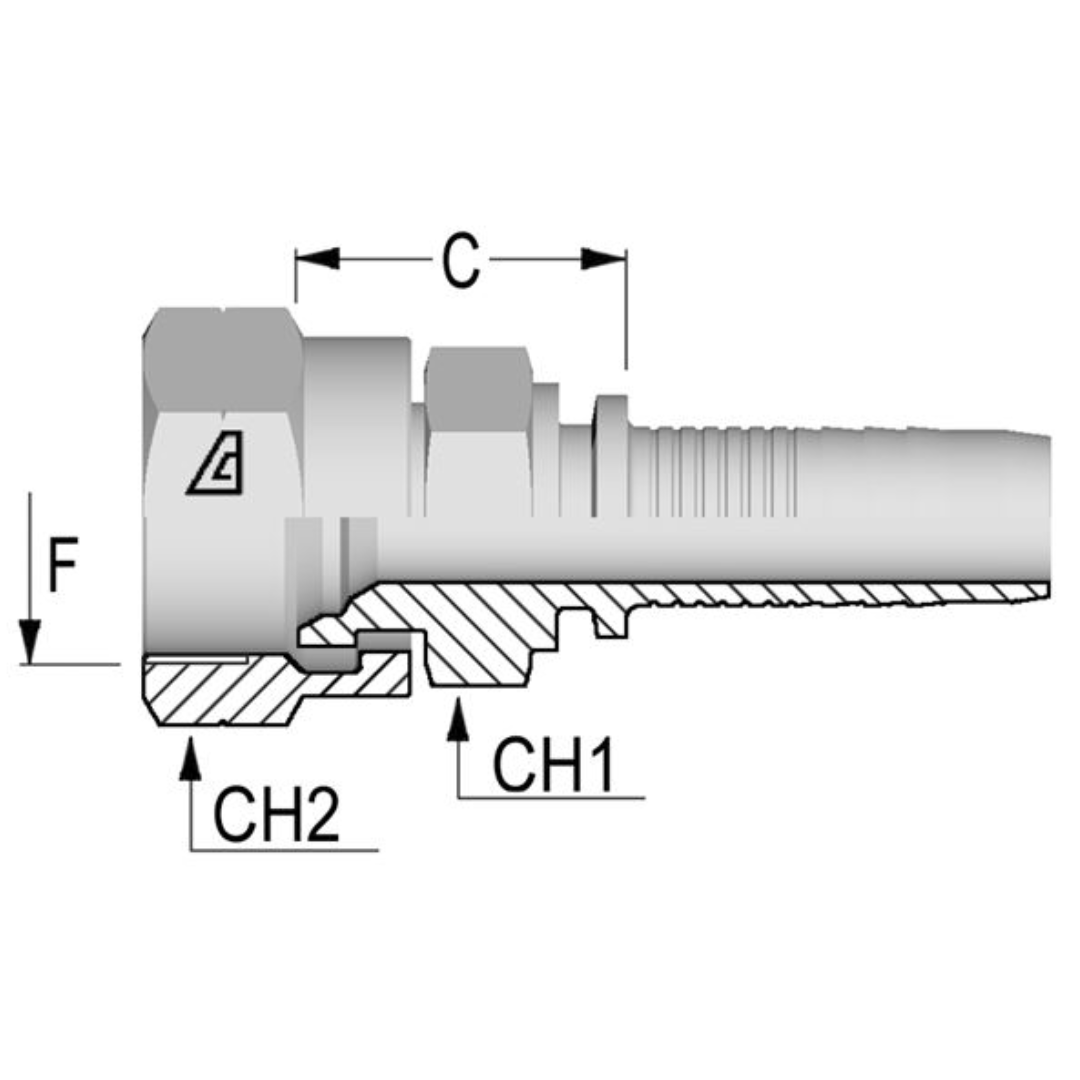

The Alfagomma A-FKOS Two-Piece Fittings are straight, carbon steel hose ends designed to connect with Komatsu Female fittings. These fittings are part of a two-piece system, which means they consist of two main parts: the hose end and a ferrule. Ferrules are small, metal rings that are used to secure the hose onto the fitting, ensuring a tight, leak-proof seal. This two-piece design makes it easier to replace individual components, whereas one-piece fittings are solid and require complete replacement if damaged. These fittings are suitable for a wide range of hoses, including wire and textile braided hoses, thermoplastic hoses, Flexor 4, and PTFE hoses in sizes from ³⁄₁₆" to 2" and Alfabiotech hoses from ³⁄₈" to 1 ¼". The two-piece A Series Fittings provide flexibility and durability, offering strong, reliable connections for high-pressure hydraulic systems, including those in heavy machinery and industrial applications.
