Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 60-Degree |
| Pressure Rating | 3000 |
| Fitting Style | Rigid |
| Series | A-C616 |
| Country of Manufacture | Italy |
| Height | 2.38 |
| Length | 11.89 |
| Width | 2.38 |
| Weight | 2.95 |
| Side 1 Size | 1 1/2 (-24) |
| Side 1 Type | Hose |
| Side 2 Gender | Flange |
| Side 2 Size | 60.3 (-2.38) |
| Side 2 Type | Code 61 |
Description

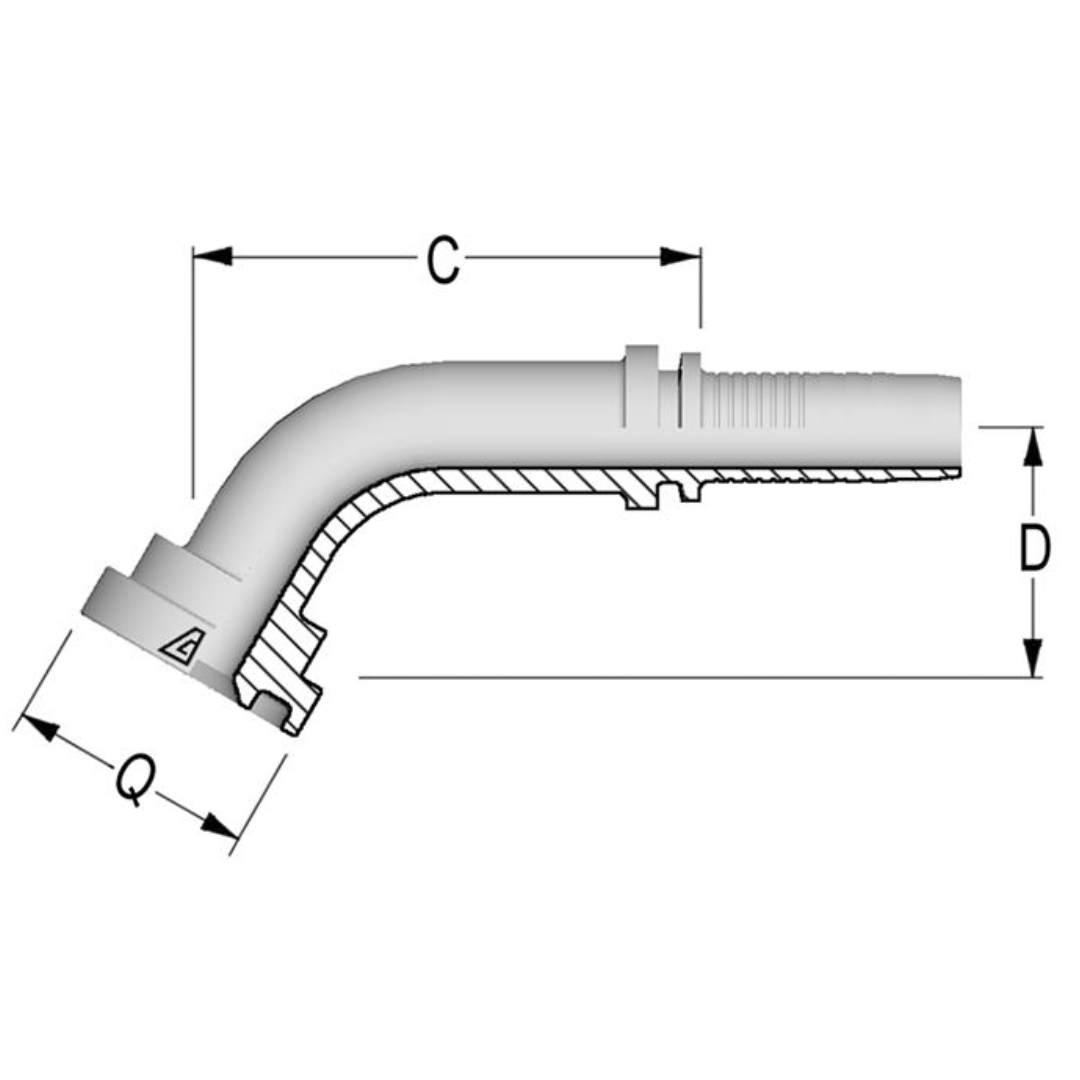

The Alfagomma A-C616 Two-Piece Fittings are 60-degree, carbon steel hose fittings designed with an O-ring flange that meets SAE J518 Code 61 standards, providing secure, high-pressure connections for a wide range of industrial hoses. These fittings utilize a two-piece design, which includes a ferrule—a metal or plastic component that compresses the hose against the fitting to form a tight, leak-proof seal. The difference between two-piece and one-piece fittings is that two-piece fittings consist of separate parts (ferrule and fitting body), allowing for easier installation and more flexibility, especially in maintenance, while one-piece fittings come pre-assembled and offer quicker use but less flexibility. The A-C616 fitting is suitable for wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech hoses from ³⁄₁₆" to 2" in diameter, including Alfabiotech 3000 (1 ¼" and 1 ½") and Alfabiotech 4000 (³⁄₈" to 1 ¼"). This fitting ensures reliable and long-lasting connections in demanding applications, making it ideal for use in industrial environments that require secure, high-pressure hose connections.
