Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | A-MMSL |
| Country of Manufacture | Italy |
| Height | 1.81 |
| Length | 3.15 |
| Width | 1.81 |
| Weight | 0.79 |
| Side 1 Size | 1 1/4 (-20) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | M45x2 (-L35) |
| Side 2 Type | Light Duty DIN Tube |
Description

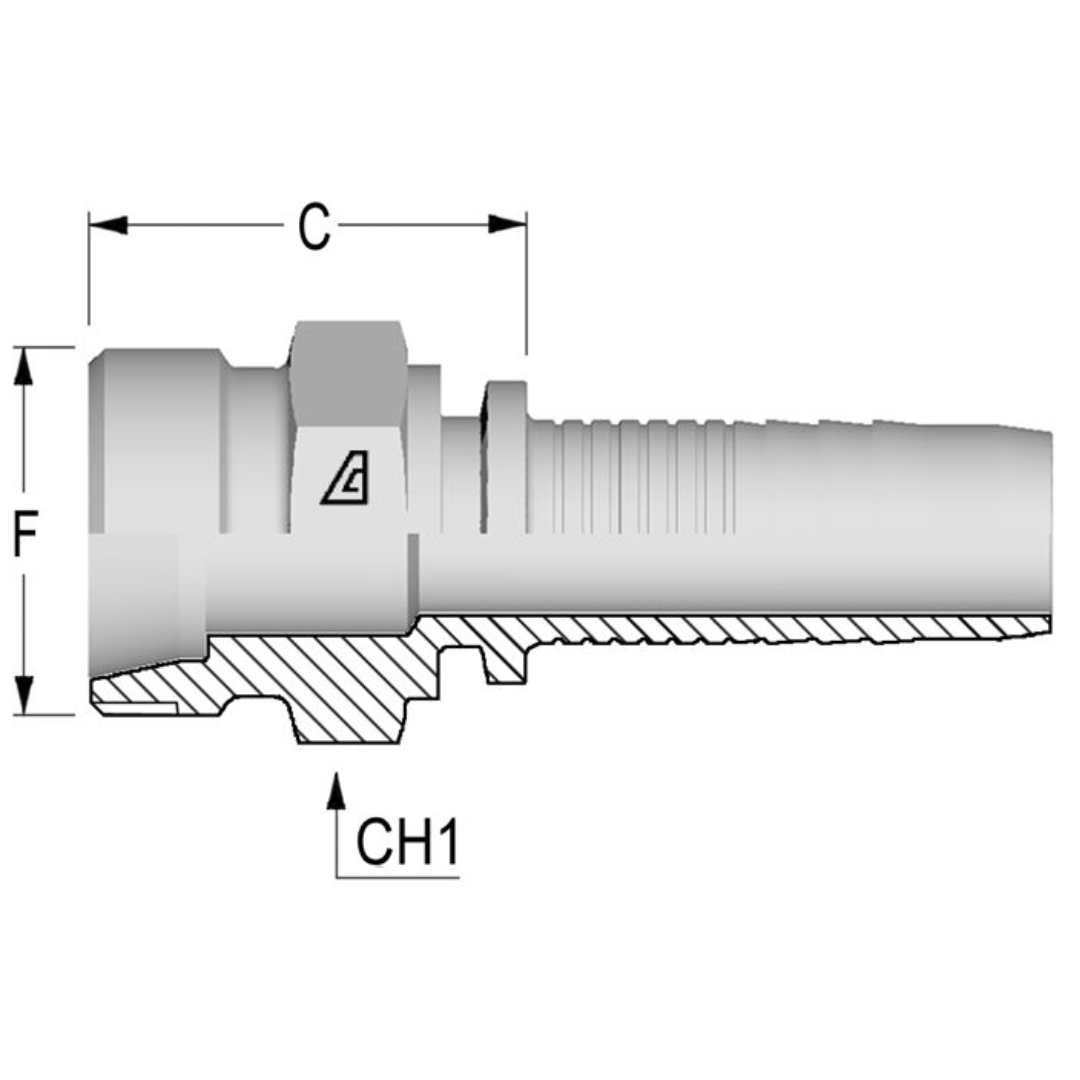

The Alfagomma A-MMSL Two-Piece Fittings are straight, carbon steel hose fittings designed to connect hoses to metric male fittings with a 24° seat, specifically for use with DIN 3853 light duty tubes. These fittings are part of the A Series, suitable for wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and smaller ID spiral wire reinforced hoses, ranging from ³⁄₁₆" to 2" in diameter. Ferrules are small, durable components used to securely attach the hose to the fitting, preventing leaks and ensuring a strong connection. The difference between two-piece and one-piece fittings lies in the construction: two-piece fittings consist of separate components, which allow for easier maintenance and replacement of individual parts, while one-piece fittings are a single, fixed unit. These two-piece fittings offer flexibility, ease of maintenance, and reliable performance for fluid power systems, making them ideal for a range of hose types and applications.
