Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Swivel |
| Series | A-FBPO |
| Country of Manufacture | Italy |
| Height | 2.17 |
| Length | 3.3 |
| Width | 2.17 |
| Weight | 1.32 |
| Side 1 Size | 1 1/4 (-20) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 1 1/2-11 (-24) |
| Side 2 Type | BSPP |
Description

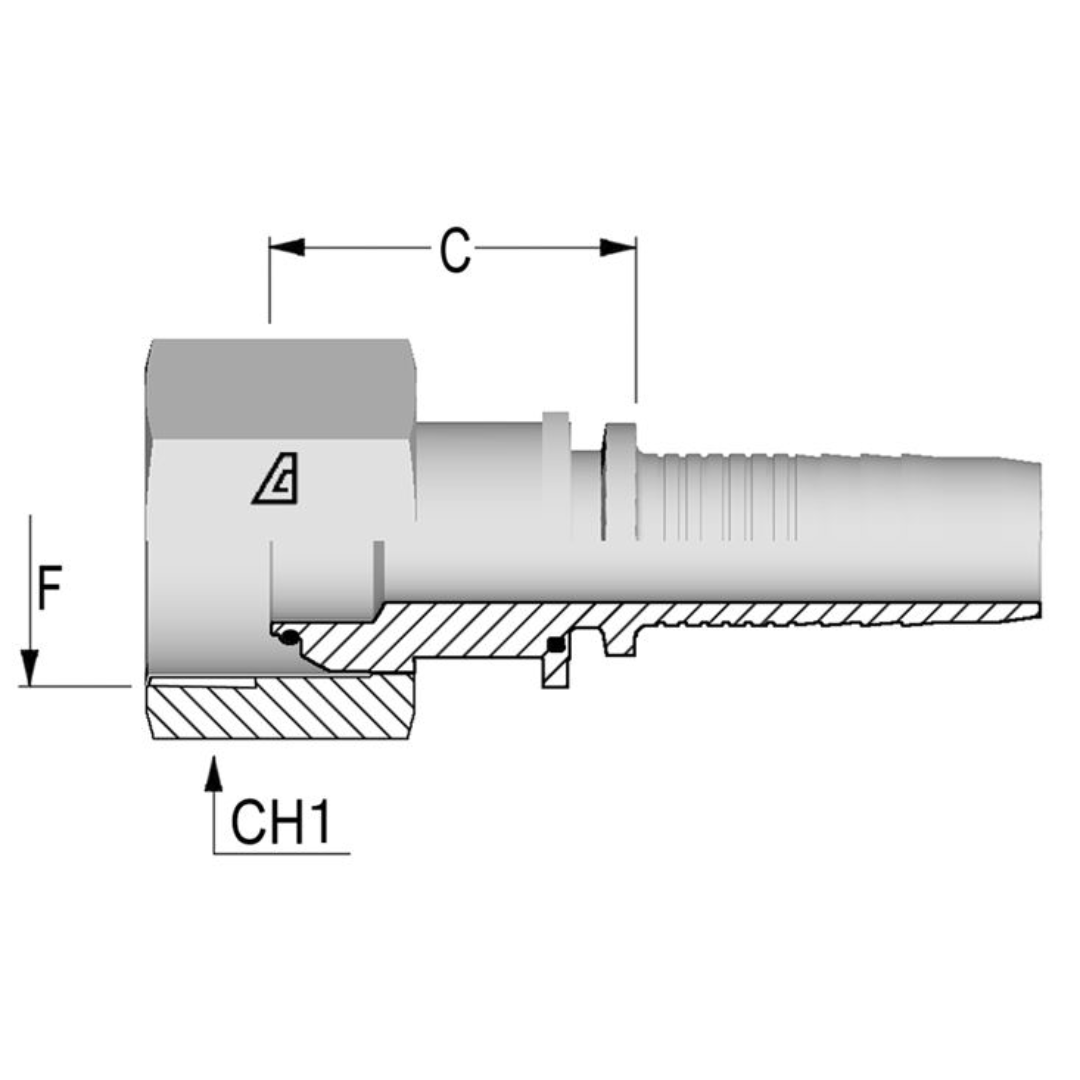

The Alfagomma A-FBPO Two-Piece Fittings are straight, carbon steel connectors designed to link hoses to BSP (British Standard Pipe) O-ring female swivel 60° cone connections. These fittings consist of two parts: the hose end and a separate O-ring female swivel, which ensures a tight, leak-free connection. The use of ferrules—small, cylindrical metal rings—helps securely attach the hose to the fitting, preventing leaks and maintaining pressure within the system. The difference between two-piece and one-piece fittings is that two-piece fittings allow for easier maintenance and replacement of individual components, while one-piece fittings are integrated into a single unit, offering a more rigid connection. A-FBPO fittings are compatible with various hose types, including wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and smaller ID spiral wire reinforced hoses, providing a reliable and efficient solution for high-pressure fluid systems.
