Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Pressure Rating | 6000 |
| Fitting Style | Rigid |
| Series | A-C629 |
| Country of Manufacture | Italy |
| Height | 2.5 |
| Length | 7.72 |
| Width | 2.5 |
| Weight | 2.09 |
| Side 1 Size | 1 1/4 (-20) |
| Side 1 Type | Hose |
| Side 2 Gender | Flange |
| Side 2 Size | 1 1/2 (-24) |
| Side 2 Type | Code 62 |
Description

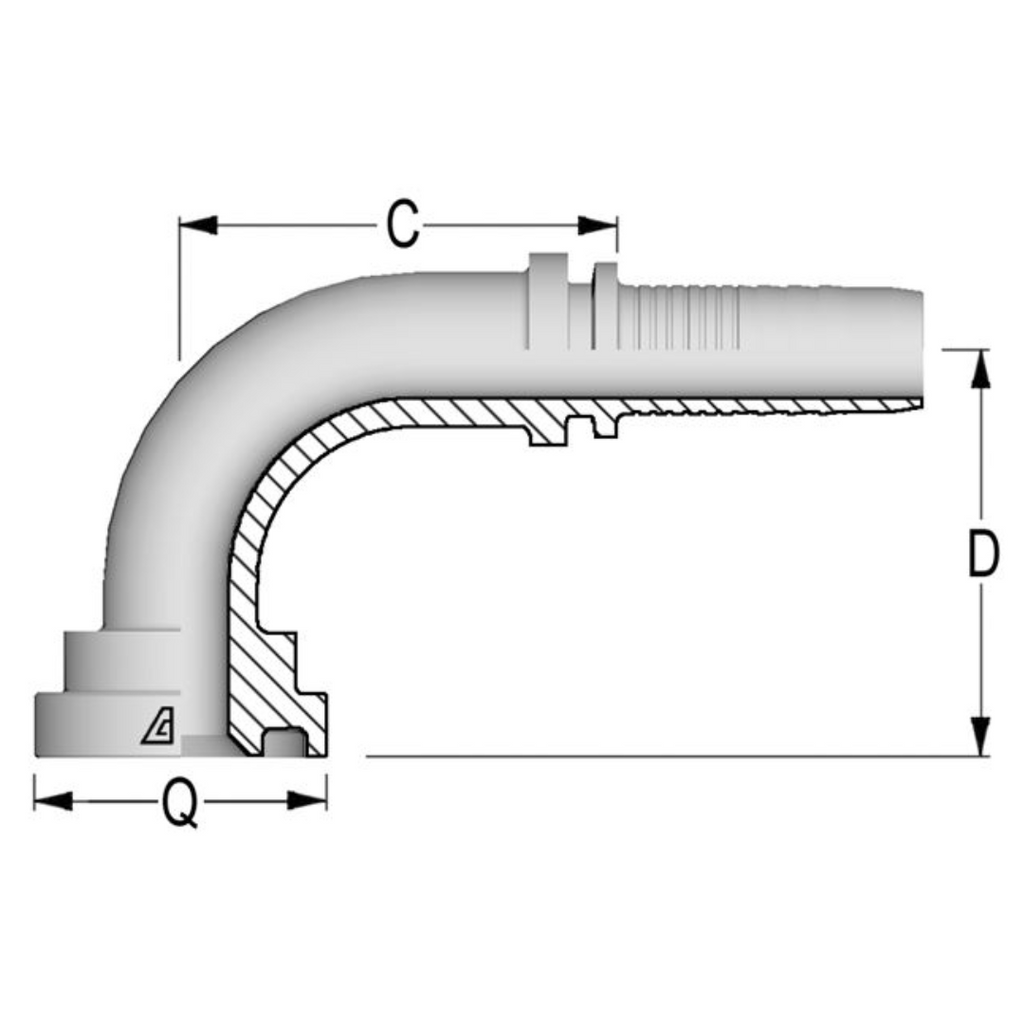

The Alfagomma A-C629 Two-Piece Fittings are 90-degree carbon steel hose fittings designed for durable, leak-proof connections in industrial fluid power systems. These fittings feature an O-ring flange that complies with SAE J518 Code 62, ensuring a secure and high-pressure seal. Ferrules are metal inserts that help secure the hose to the fitting by compressing it tightly, creating a strong, leak-resistant connection. The difference between two-piece and one-piece fittings is that two-piece fittings consist of separate components, such as the fitting and ferrule, allowing for easier maintenance, repair, and customization. In contrast, one-piece fittings are pre-assembled for quicker installation but offer less flexibility. The A-C629 Two-Piece Fittings are compatible with wire and textile braided hoses, thermoplastic hoses, Flexor 4, and PTFE hoses, as well as Alfabiotech 3000 and 4000 hoses in sizes ranging from ³⁄₁₆" to 2" ID, offering versatile and reliable solutions for a wide range of fluid handling applications.
