Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Pressure Rating | 3000 |
| Fitting Style | Rigid |
| Series | A-C61S |
| Country of Manufacture | Italy |
| Height | 2.38 |
| Length | 4.61 |
| Width | 2.38 |
| Weight | 1.12 |
| Side 1 Size | 1 1/4 (-20) |
| Side 1 Type | Hose |
| Side 2 Gender | Flange |
| Side 2 Size | 1 1/2 (-24) |
| Side 2 Type | Code 61 |
Description

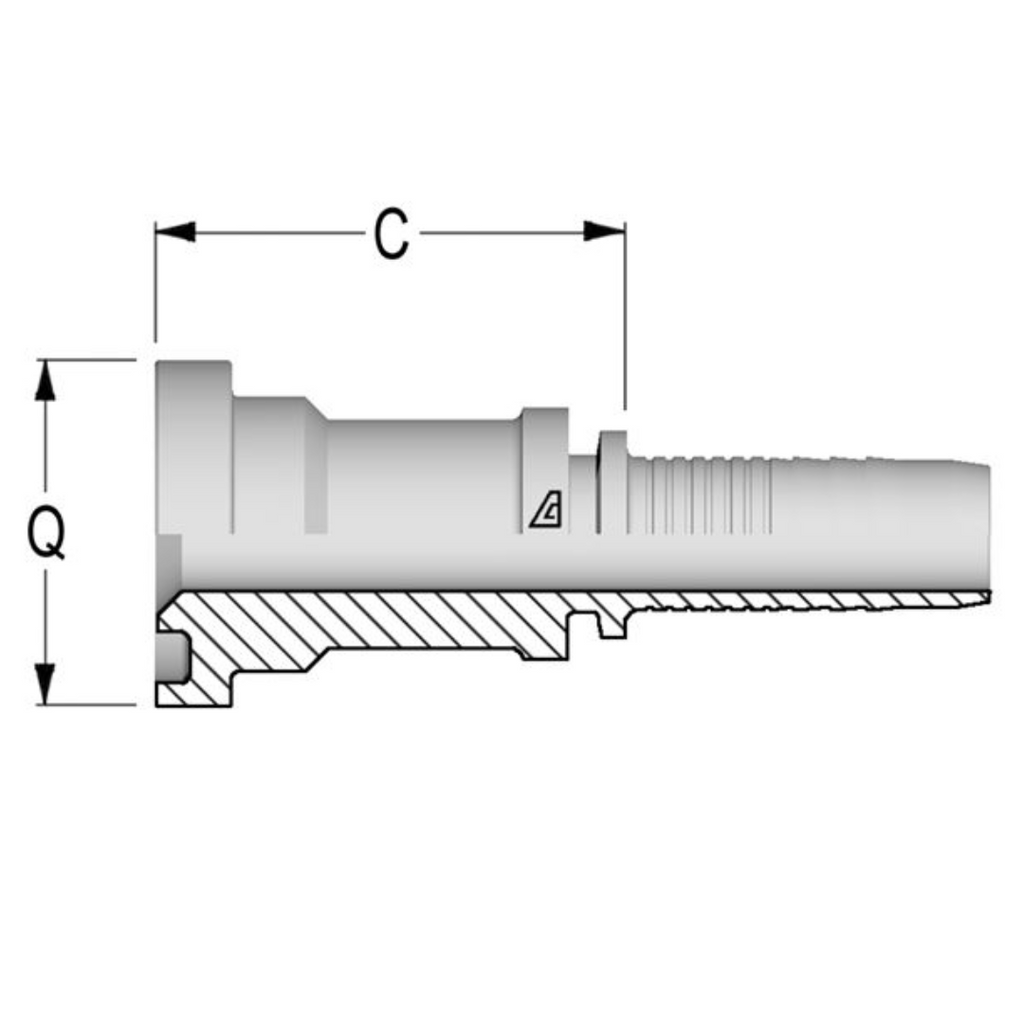

The Alfagomma A-C61S Two-Piece Fittings are straight, carbon steel hose fittings designed to securely connect hoses to equipment with an O-ring flange, meeting SAE J518 Code 61 standards. These fittings feature a two-piece design, which includes a ferrule—a metal or plastic ring that compresses the hose against the fitting, creating a tight, leak-proof seal. The main difference between two-piece and one-piece fittings is that two-piece fittings have separate components (the ferrule and fitting body), offering more flexibility for installation and easier replacement, while one-piece fittings are pre-assembled for faster installation but offer less flexibility. The A-C61S fitting is ideal for use with wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech hoses from ³⁄₁₆" to 2" in diameter, including Alfabiotech 3000 (1 ¼" and 1 ½") and Alfabiotech 4000 (³⁄₈" to 1 ¼") hoses. This reliable fitting ensures long-lasting, secure connections in demanding industrial applications, offering flexibility and durability for high-pressure systems.
