Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 30-Degree |
| Fitting Style | Rigid |
| Series | A-C613 |
| Country of Manufacture | Italy |
| Height | 2.38 |
| Length | 6.42 |
| Width | 2.38 |
| Weight | 1.26 |
| Side 1 Size | 1 1/4 (-20) |
| Side 1 Type | Hose |
| Side 2 Gender | Flange |
| Side 2 Size | 1 1/2 (-24) |
| Side 2 Type | Code 61 |
Description

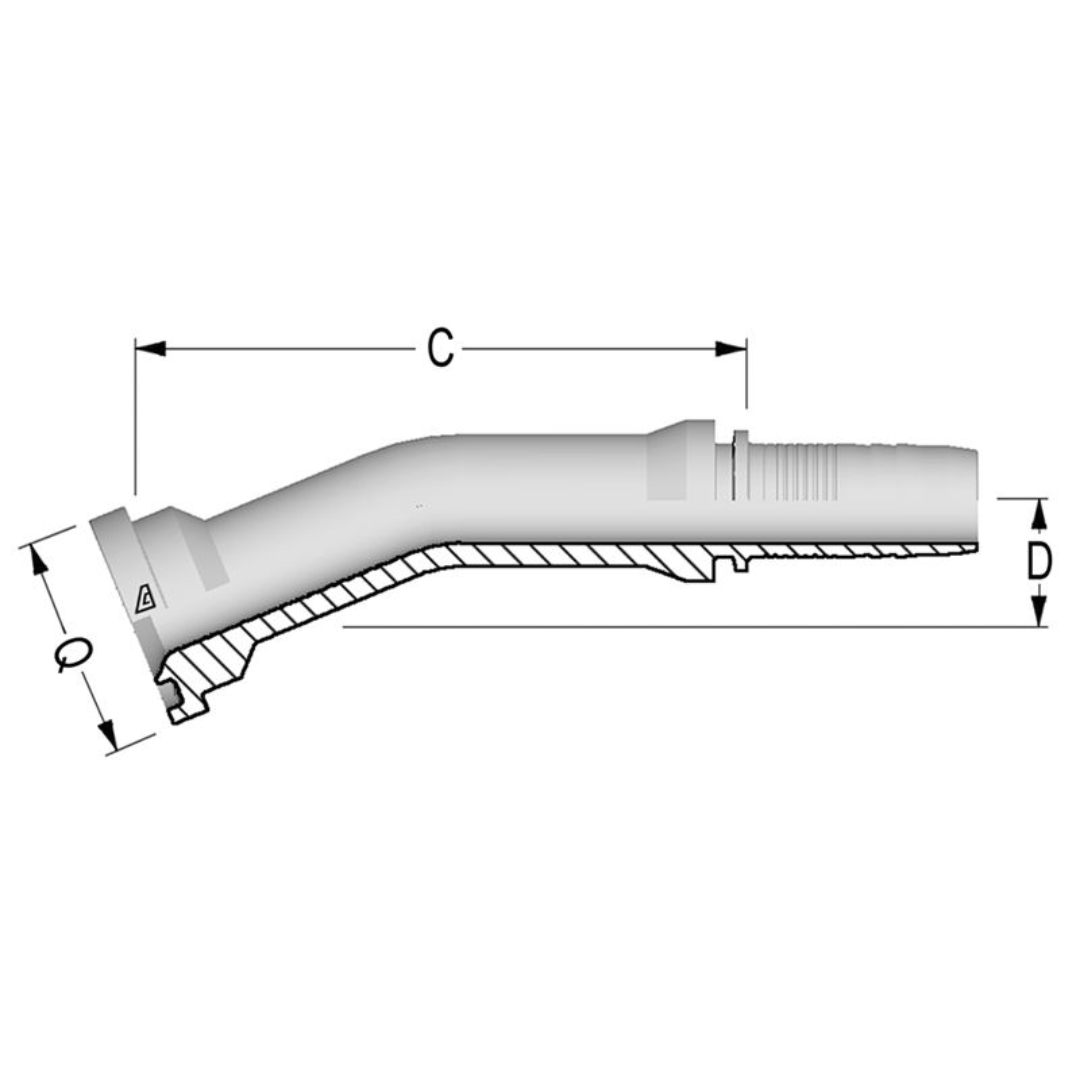

The Alfagomma A-C613 Two-Piece Fittings are 30-degree, carbon steel hose fittings that feature an O-ring flange designed to meet SAE J518 Code 61 standards. These fittings utilize a two-piece construction, which includes a ferrule—a metal or plastic component that compresses the hose securely against the fitting to form a leak-proof seal. The primary difference between two-piece and one-piece fittings is that two-piece fittings have separate parts (ferrule and fitting body), offering more flexibility in installation and maintenance, while one-piece fittings are pre-assembled for quicker use but lack this flexibility. The A-C613 fitting is compatible with wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech hoses from ³⁄₁₆" to 2" in diameter, including Alfabiotech 3000 (1 ¼" and 1 ½") and Alfabiotech 4000 (³⁄₈" to 1 ¼"). This design ensures secure and long-lasting connections in demanding, high-pressure applications, making it ideal for a range of industrial uses.
