Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Swivel |
| Series | A-FJIS |
| Country of Manufacture | Italy |
| Height | 1.81 |
| Length | 3.11 |
| Width | 1.81 |
| Weight | 1.19 |
| Side 1 Size | 1 1/4 (-20) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 11/4-11 (-20) |
| Side 2 Type | JIS |
Description

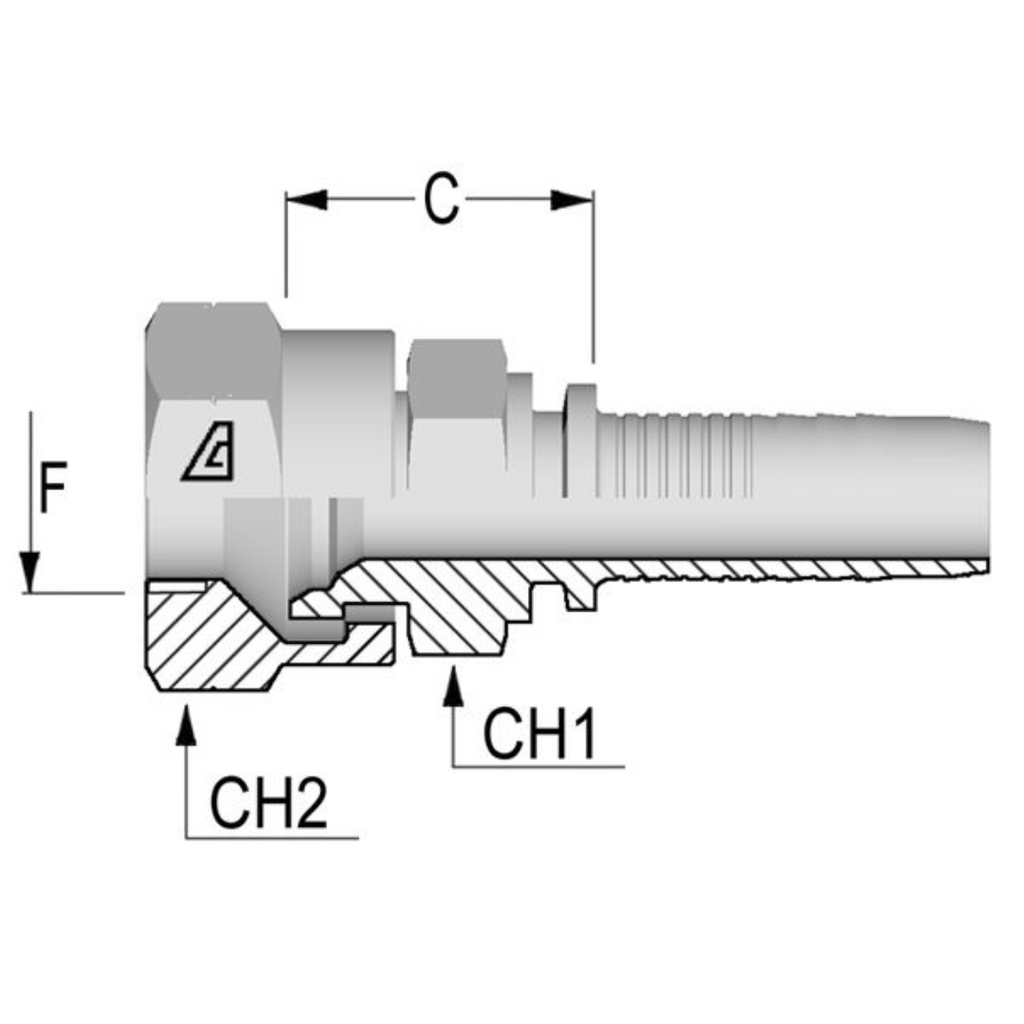

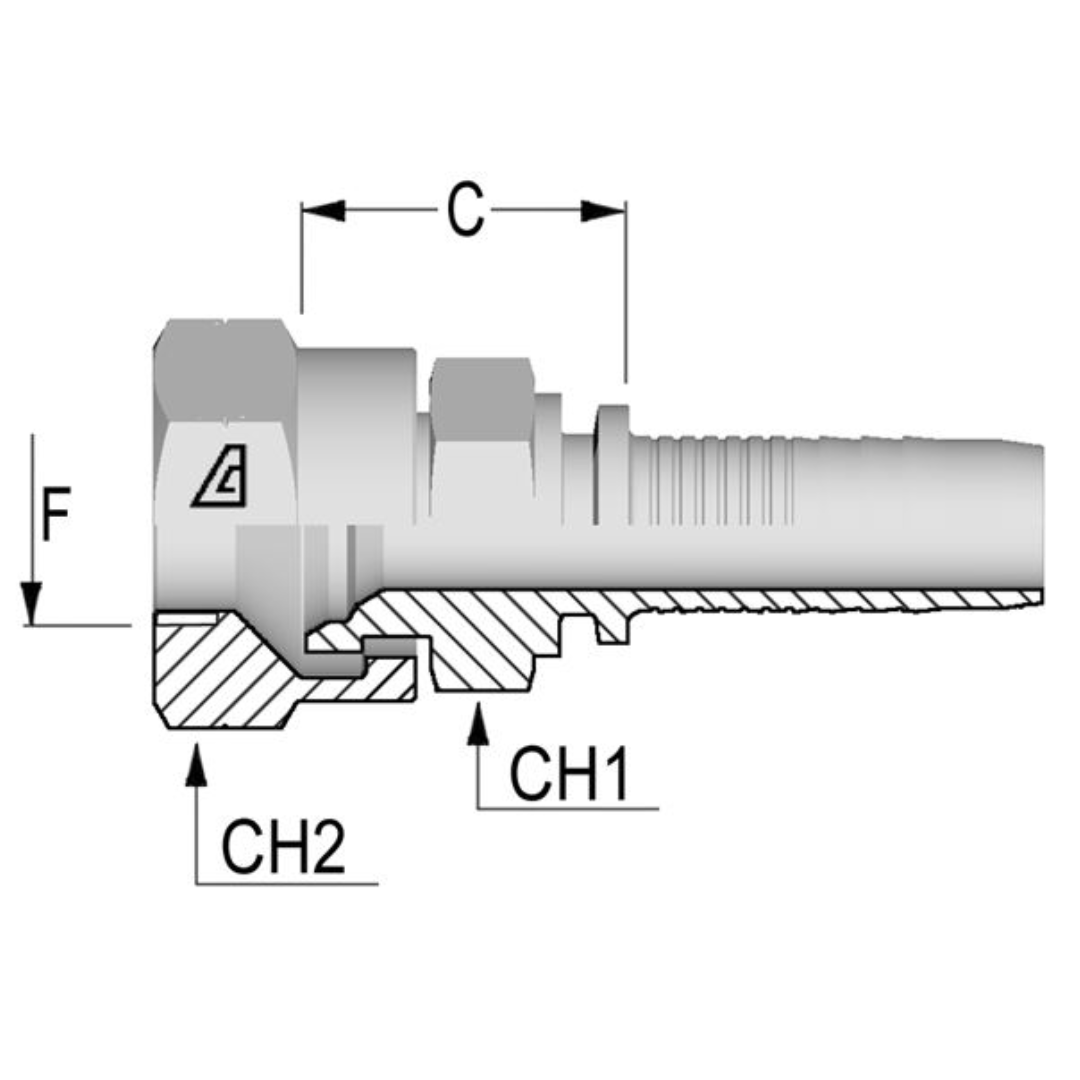

The Alfagomma A-FJIS Two-Piece Fittings are high-quality, straight, carbon steel hose ends designed to connect to JIS (Japanese Industrial Standard) Female Swivel fittings with a 30° seat, specifically following the B 8363 Type F standard. These fittings are part of a two-piece system, which consists of the hose end and a ferrule, a small metal ring that helps create a strong, leak-proof seal by securing the hose to the fitting. Ferrules are crucial in ensuring the fitting remains firmly attached under high-pressure conditions. The difference between two-piece and one-piece fittings is that two-piece fittings allow for easier maintenance and replacement of individual components, while one-piece fittings are solid and require complete replacement if any part becomes damaged. The A Series Two-Piece Fittings are compatible with various hoses, including wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech hoses, in sizes ranging from ³⁄₁₆" to 2". These fittings are ideal for applications that demand durable, secure, and leak-proof connections in fluid power systems.
