Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Swivel |
| Series | A-FMOH |
| Country of Manufacture | Italy |
| Height | 1.97 |
| Length | 3.39 |
| Width | 1.97 |
| Weight | 0.97 |
| Side 1 Size | 1 (-16) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | M42x2 (-S30) |
| Side 2 Type | Heavy Duty DIN Tube |
Description

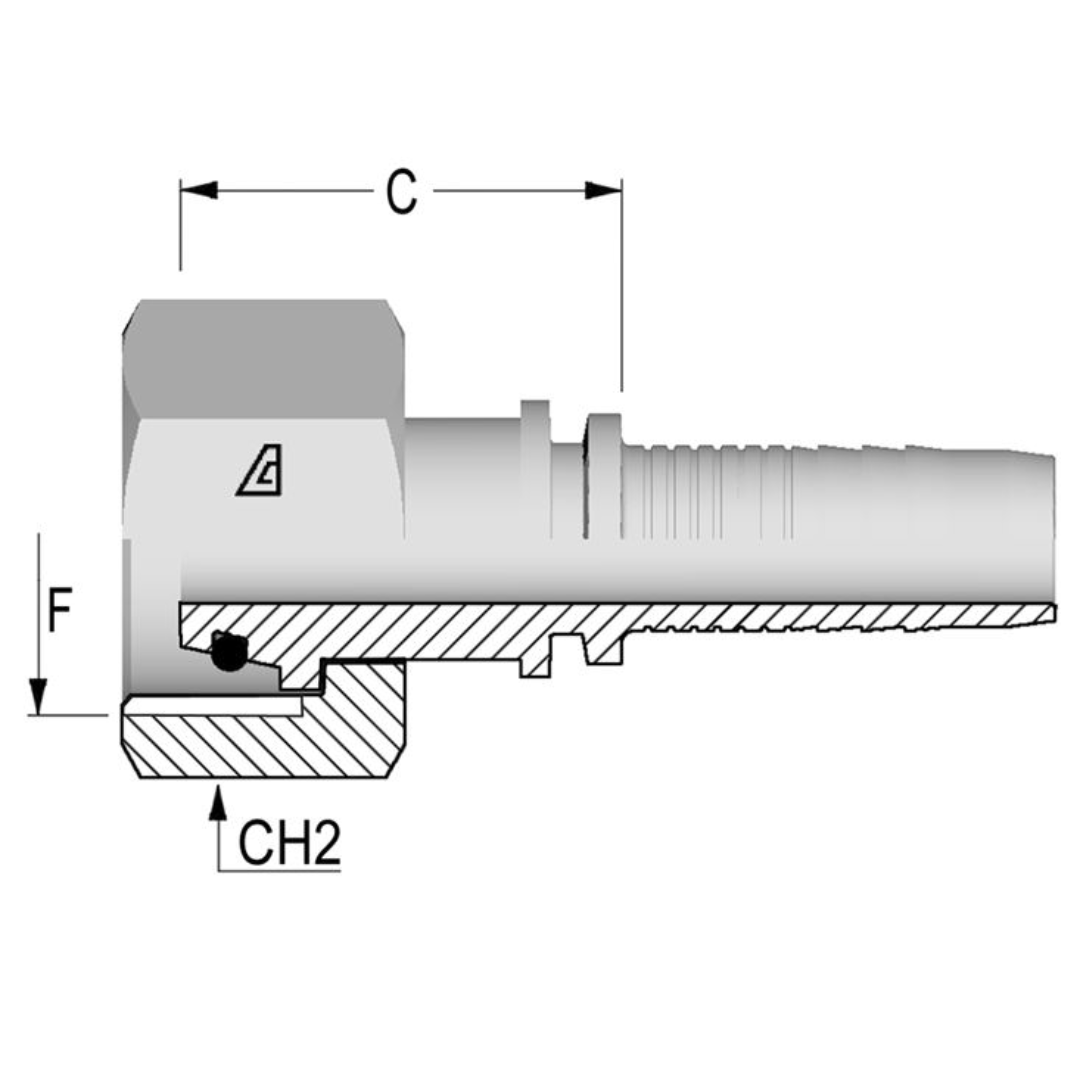

The Alfagomma A-FMOH Two-Piece Fittings are straight, carbon steel hose end fittings designed for use with metric O-ring female swivel 24° seat connections, specifically for DIN 3865 heavy-duty DIN tubes. These fittings are suitable for wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech hoses ranging from ³⁄₁₆" to 2" in diameter, and certain smaller ID spiral wire reinforced hoses. Ferrules are metal inserts used to ensure a secure and tight connection between the hose and fitting, preventing leaks. The primary difference between two-piece and one-piece fittings is that two-piece fittings are made up of two separate parts, which allow for easier maintenance and replacement of individual components, whereas one-piece fittings are solid, offering durability but less flexibility. The two-piece design provides more versatility and is ideal for applications that require flexibility, making repairs simpler and more cost-effective.
