Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 45-Degree |
| Fitting Style | Swivel |
| Series | A-FM4L |
| Country of Manufacture | Italy |
| Height | 1.61 |
| Length | 7.2 |
| Width | 1.61 |
| Weight | 0.74 |
| Side 1 Size | 1 (-16) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | M36x2 (-L28) |
| Side 2 Type | Light Duty DIN Tube |
Description

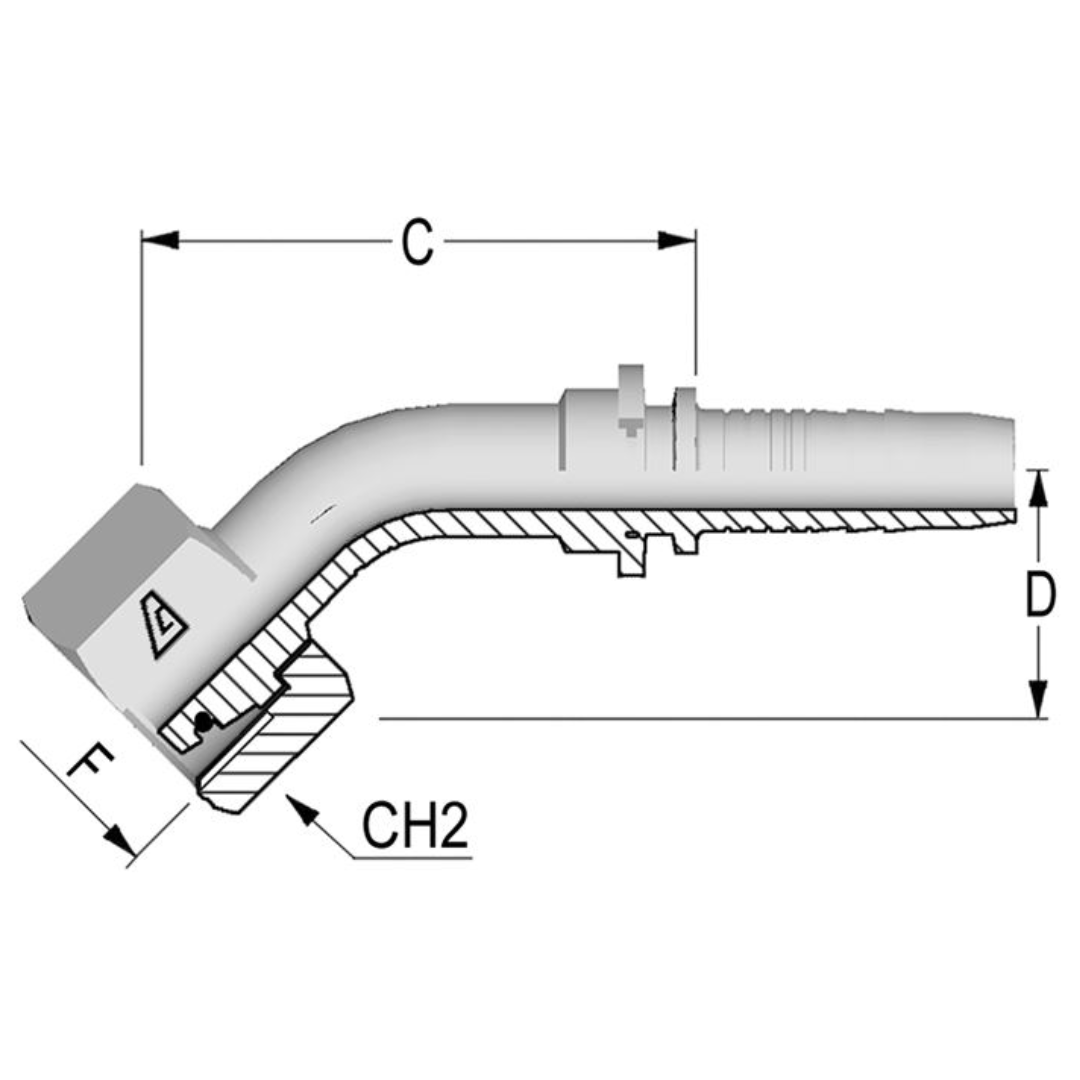

The Alfagomma A-FM4L Two-Piece Fittings are 45-degree, carbon steel hose end fittings designed for connecting hoses to metric O-ring female swivel connections with a 24° seat, used with DIN 3865 light duty DIN tubes. These fittings are part of the A Series and are suitable for wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and smaller ID spiral wire reinforced hoses, ranging from ³⁄₁₆" to 2" in diameter. Ferrules are small, durable components that secure the hose to the fitting, ensuring a leak-free and stable connection. The difference between two-piece and one-piece fittings lies in their design: two-piece fittings consist of separate parts, offering the benefit of flexibility and ease of maintenance (e.g., replacing a worn part), while one-piece fittings are a single, fixed unit. The two-piece design is ideal for various applications, providing long-lasting, reliable performance for fluid power systems.
