Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Fitting Style | Rigid |
| Series | A-MSP9 |
| Country of Manufacture | Italy |
| Height | 0.98 |
| Length | 5.76 |
| Width | 0.98 |
| Weight | 0.82 |
| Side 1 Size | 1 (-16) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 25mm |
| Side 2 Type | Standpipe |
Description

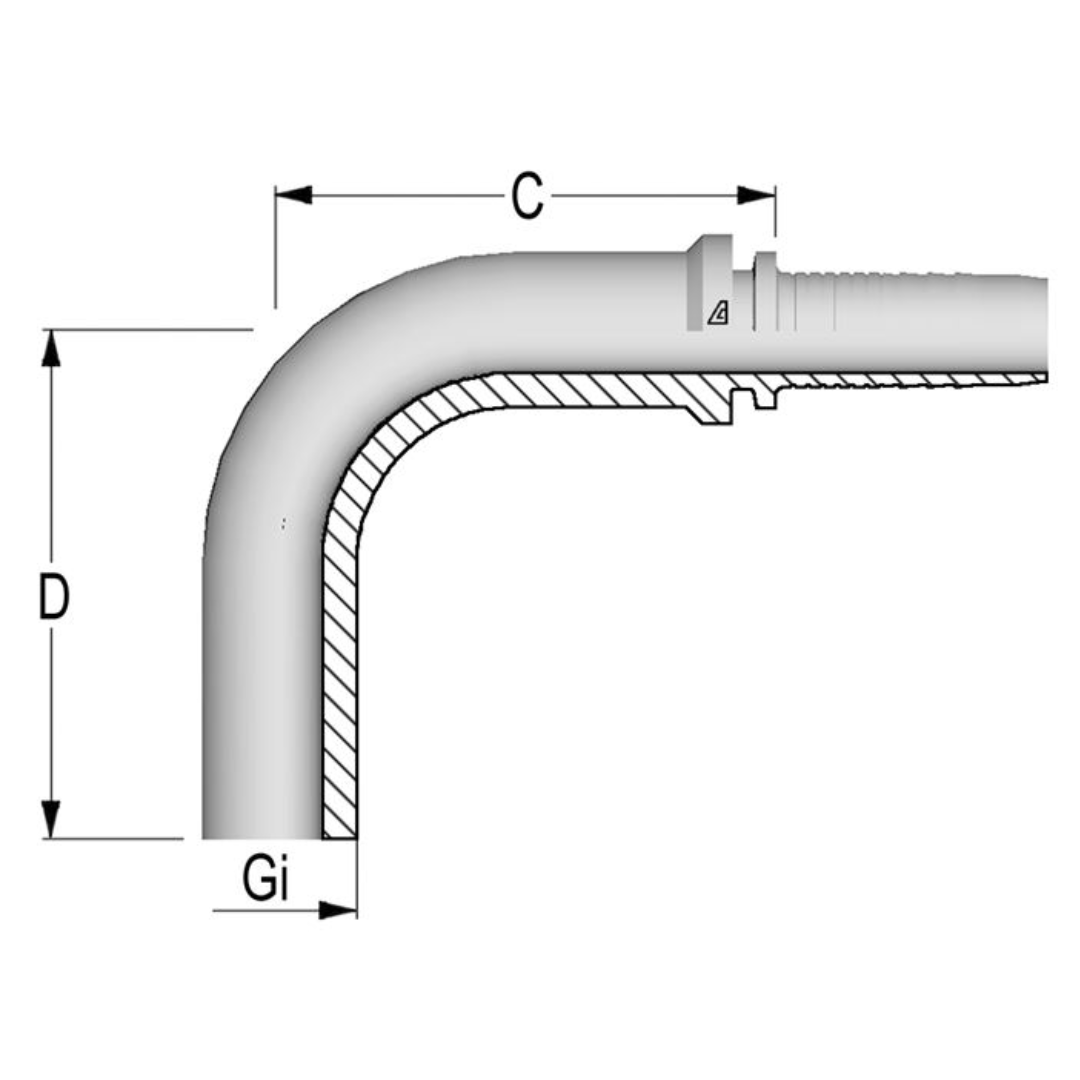

The Alfagomma A-MSP9 Two-Piece Fittings are 90-degree, carbon steel hose fittings designed to create secure connections in high-pressure systems with a 90° metric bent tube standpipe. These fittings are ideal for a wide variety of hoses, including wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech hoses ranging from ³⁄₁₆" to 2" in diameter, as well as certain smaller ID spiral wire reinforced hoses. Ferrules are metal components that are used to tightly grip the hose, ensuring a leak-free connection. The key difference between two-piece and one-piece fittings is that two-piece fittings consist of separate parts (such as the fitting and ferrule), which makes them easier to maintain and replace, while one-piece fittings are a single solid unit that must be replaced entirely if damaged. The A-MSP9 Two-Piece Fittings provide a durable, reliable solution for fluid systems that require robust, flexible, and long-lasting connections.
