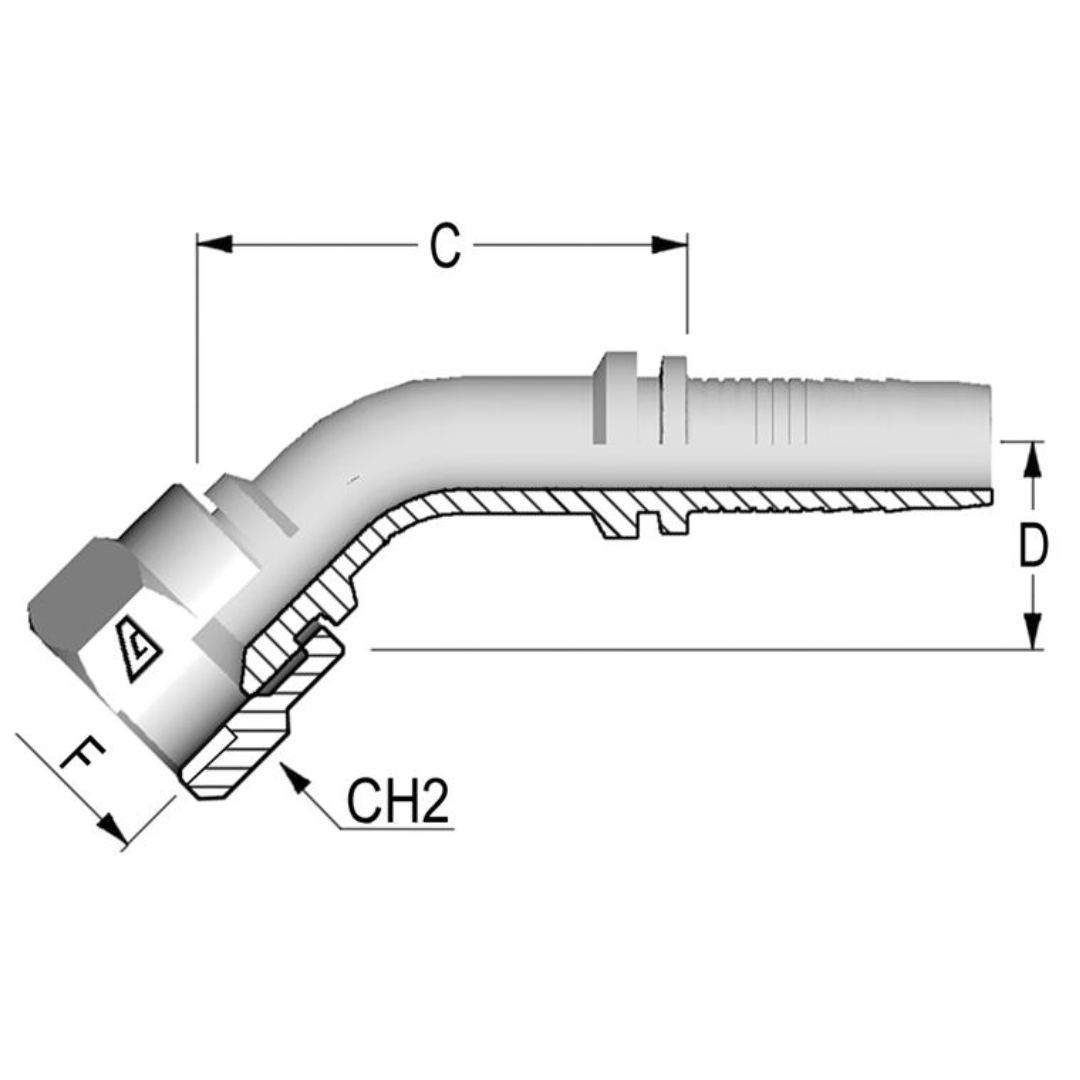

A-1616-FJ45 : Alfagomma 45-Degree Steel Fitting Insert, 1 (-16) Hose x 1 5/16-12 (-16) Female JIC Swivel

The Alfagomma A-FJ45 Two-Piece Fittings are 45-degree, carbon steel fittings designed to connect wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech hoses ranging from ³⁄₁₆" to 2" in diameter. These fittings use a two-piece insert, which includes a ferrule—a metal or plastic component that compresses the hose onto the fitting, ensuring a secure, leak-proof connection. The key difference between two-piece and one-piece fittings is that two-piece fittings consist of separate components—the ferrule and fitting body—offering more flexibility for installation and replacement, while one-piece fittings are pre-assembled for quicker, more streamlined installation. The A-FJ45 fitting features a 45° JIC female swivel with a 37° seat, providing a reliable and durable connection for high-pressure fluid systems. This fitting is ideal for use with Alfabiotech 3000 (1 ¼" and 1 ½") and Alfabiotech 4000 (³⁄₈" to 1 ¼") hoses, as well as smaller ID spiral wire reinforced hoses, making it perfect for industrial applications requiring long-lasting, secure hose connections.
