Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Swivel |
| Series | A-FJDH |
| Country of Manufacture | Italy |
| Height | 1.26 |
| Length | 2.53 |
| Width | 1.26 |
| Weight | 0.46 |
| Side 1 Size | 7/8 (-14) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 1 5/16-12 (-16) |
| Side 2 Type | JIC |
Description

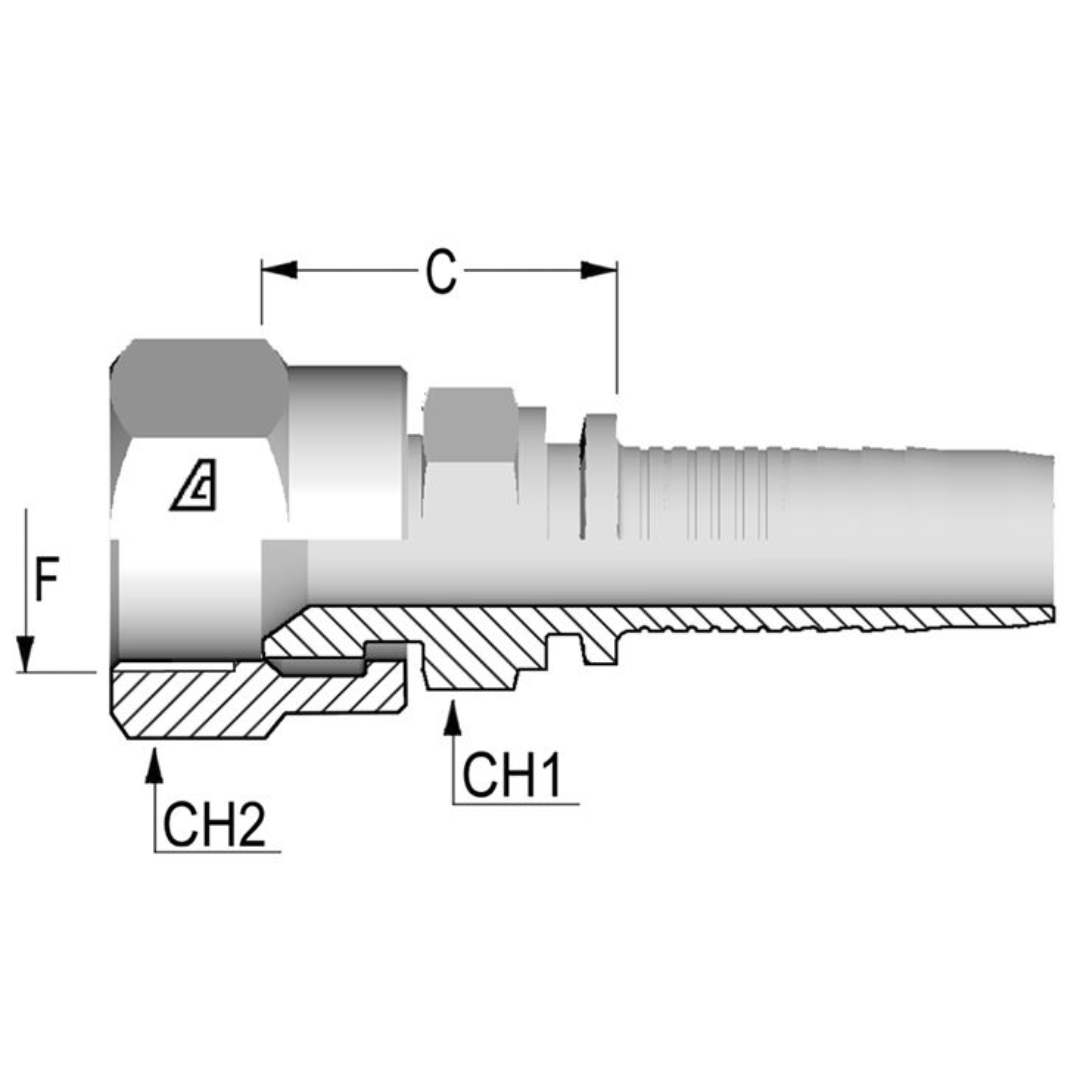

The Alfagomma A-FJDH Two-Piece Fittings are straight, carbon steel fittings designed to connect wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech hoses, ranging from ³⁄₁₆" to 2" in diameter. These fittings feature a two-piece insert, which includes a ferrule—a metal or plastic component that compresses the hose tightly onto the fitting, ensuring a secure, leak-proof connection. The difference between two-piece and one-piece fittings is that two-piece fittings are made of separate parts (the ferrule and fitting body), offering more flexibility for installation and replacement, while one-piece fittings are pre-assembled for quicker use. The A-FJDH fitting features a JIC female 37° seat with a double hex design, providing a reliable, durable connection for high-pressure fluid systems. This fitting is perfect for use with Alfabiotech 3000 (1 ¼" and 1 ½") and Alfabiotech 4000 (³⁄₈" to 1 ¼") hoses, as well as smaller ID spiral wire reinforced hoses, ensuring long-lasting and secure hose connections for demanding industrial applications.
