Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | A-MMFR |
| Country of Manufacture | Italy |
| Height | 1.42 |
| Length | 2.65 |
| Width | 1.42 |
| Weight | 0.34 |
| Side 1 Size | 3/4 (-12) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | M36x1.5 (26.75mm Tube OD) |
| Side 2 Type | Metric |
Description

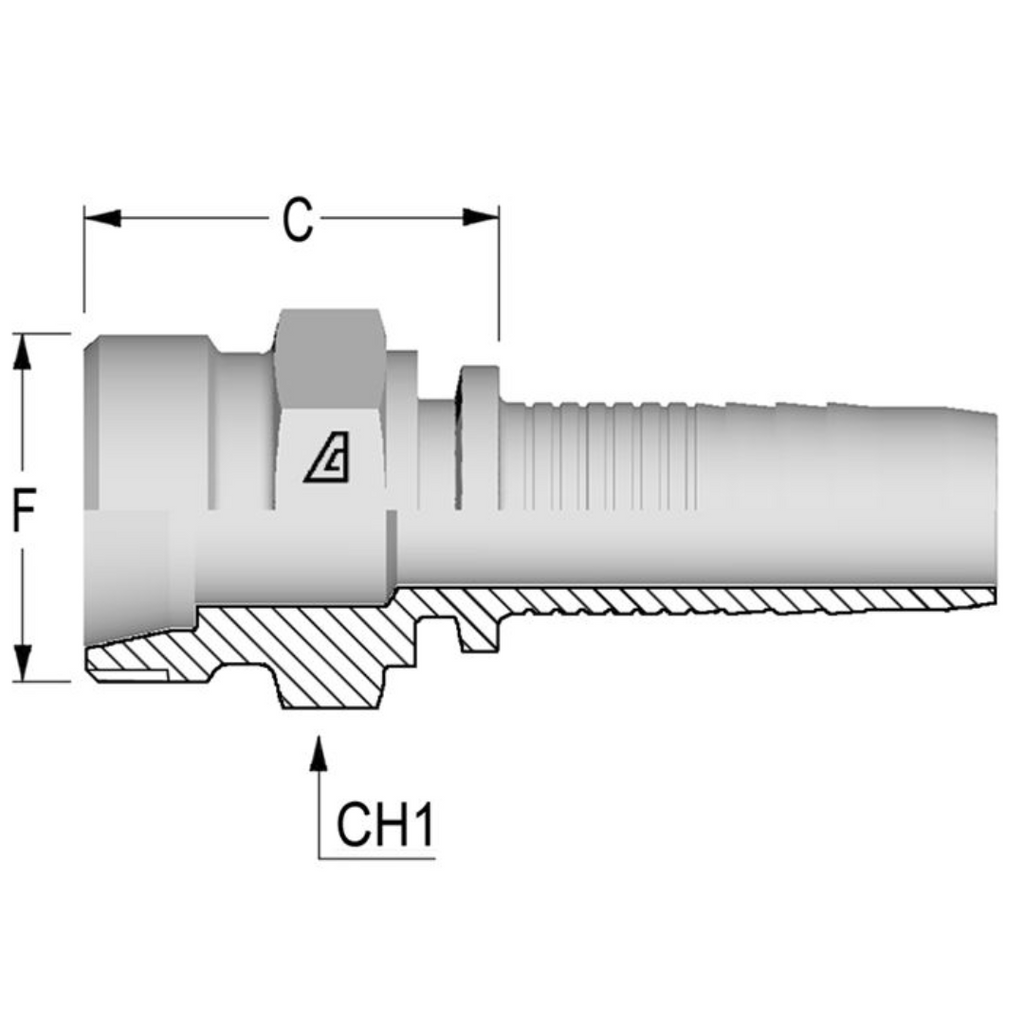

The Alfagomma A-MMFR Two-Piece Fittings are straight, carbon steel hose ends designed to connect to Metric Male French Type (GAZ) threaded connections, commonly used in various fluid and hydraulic applications. These fittings are part of a two-piece system, meaning they consist of separate components, such as a fitting and ferrule, that are assembled to form a secure and leak-proof connection. Ferrules are metal inserts that help seal the joint between the hose and the fitting, ensuring no leaks under pressure. Two-piece fittings offer greater flexibility and ease of maintenance compared to one-piece fittings, which are solid and require complete replacement if damaged. The A Series two-piece insert is compatible with wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech hoses, providing a durable and strong connection for various hose types ranging from ³⁄₁₆" to 2" in size. These fittings are ideal for applications requiring high-performance connections and reliable sealing in hydraulic systems.
