Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Fitting Style | Swivel |
| Series | A-FM9L |
| Country of Manufacture | Italy |
| Height | 1.42 |
| Length | 4.1 |
| Width | 1.42 |
| Weight | 0.57 |
| Side 1 Size | 3/4 (-12) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | M30x2 (-L22) |
| Side 2 Type | Light Duty DIN Tube |
Description

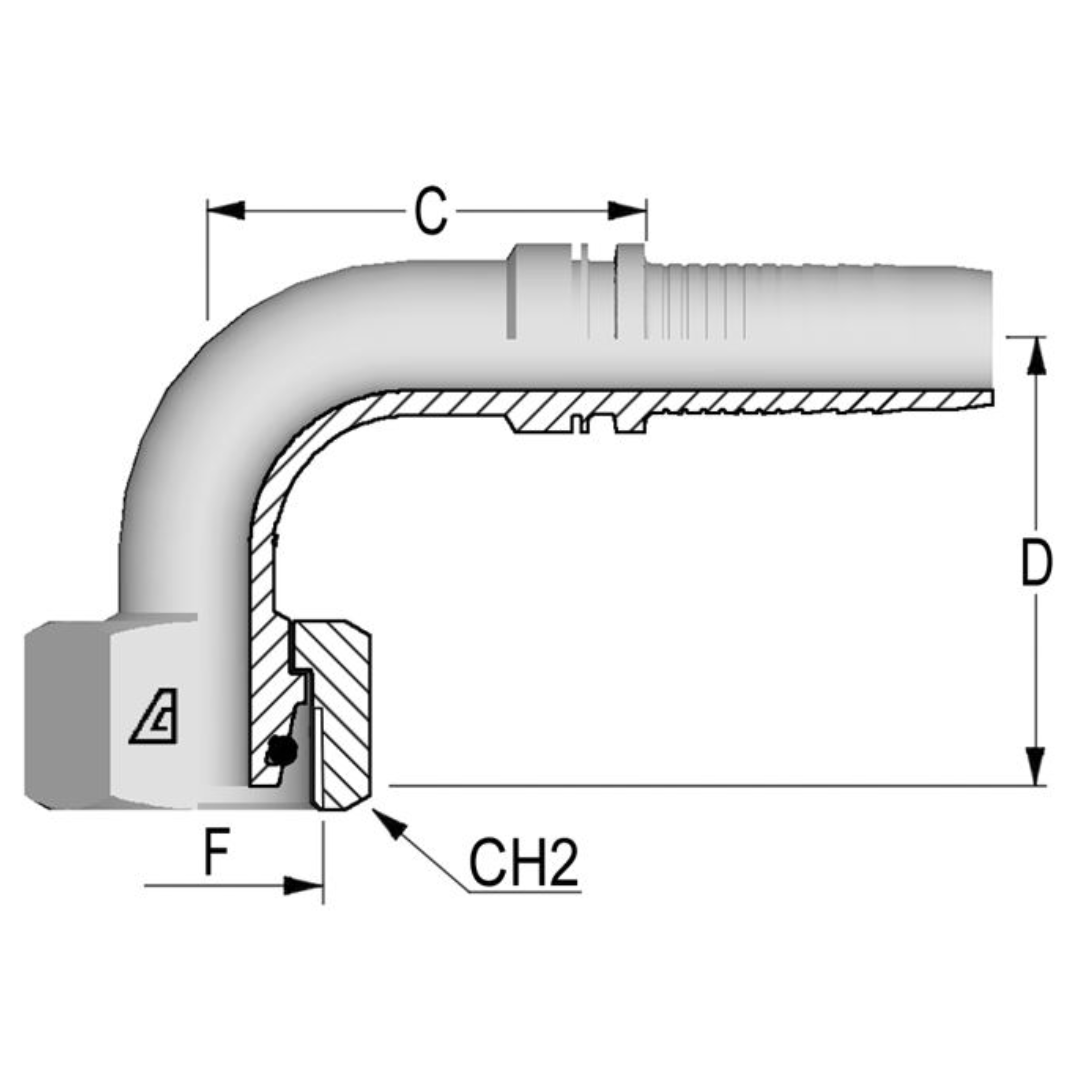

The Alfagomma A-FM9L Two-Piece Fittings are 90-degree carbon steel hose end fittings designed for connecting hoses to metric O-ring female swivel connections with a 24° seat, specifically used with DIN 3865 light-duty DIN tubes. These fittings are part of the A Series and are compatible with wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and smaller ID spiral wire reinforced hoses, ranging from ³⁄₁₆" to 2" in diameter. Ferrules are small metal pieces that secure the hose to the fitting, ensuring a tight, leak-free connection. The main difference between two-piece and one-piece fittings is that two-piece fittings consist of separate components, allowing for flexibility and easier maintenance, while one-piece fittings are a single, fixed unit, which offers more durability but less flexibility for repairs or adjustments. The two-piece design is ideal for a wide range of applications, providing reliable, long-lasting performance in fluid systems.
