Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 2-3 Weeks |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Swivel |
| Series | A-FM6S |
| Country of Manufacture | Italy |
| Height | 1.42 |
| Length | 1.75 |
| Width | 1.42 |
| Weight | 0.31 |
| Side 1 Size | 3/4 (-12) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | M30x1.5 |
| Side 2 Type | DIN |
Description

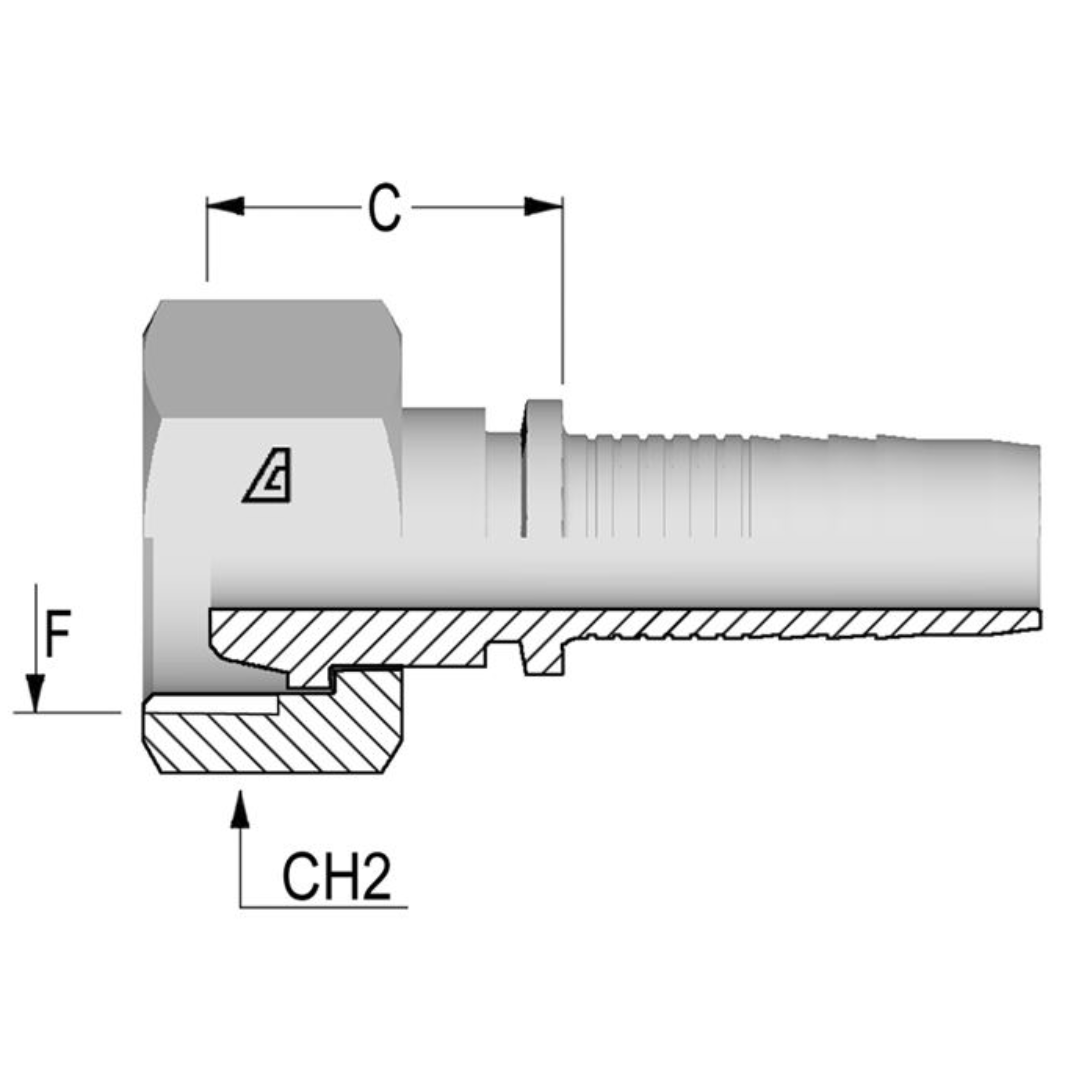

The Alfagomma A-FM6S Two-Piece Fittings are straight, carbon steel hose fittings designed to connect hoses to a system. These fittings feature a hose end with a metric swivel female connection and a 60° cone, conforming to DIN 3863 standards. They are compatible with a variety of hose types, including wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech 3000 and 4000 hoses, ranging from ³⁄₁₆" to 2" in diameter. Ferrules are metal components used to securely attach hoses to fittings, ensuring a tight, leak-free seal. The key difference between two-piece and one-piece fittings is that two-piece fittings have separate parts (usually a fitting and a ferrule), allowing for easier maintenance and replacement, while one-piece fittings are solid, requiring full replacement if damaged. Two-piece fittings provide flexibility and ease of use, making them a popular choice for various industrial applications.
