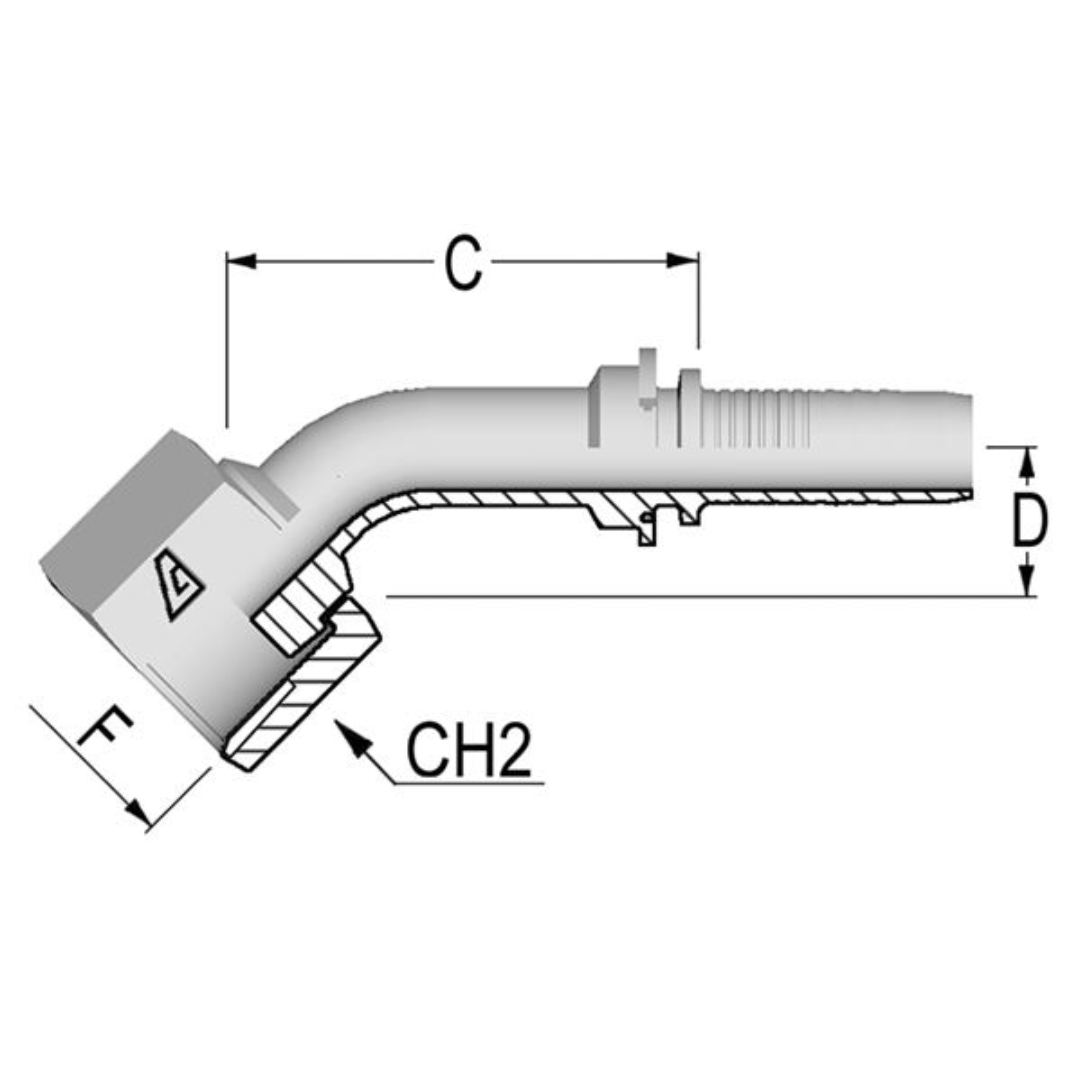

A-1216-FO45 : Alfagomma 45-Degree Steel Fitting Insert, 3/4 (-12) Hose x 1 7/16-12 (-16) Female ORFS Swivel

The Alfagomma A-FO45 Two-Piece Fittings are 45-degree, carbon steel fittings designed to connect wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech hoses ranging from ³⁄₁₆" to 2" in diameter. These fittings feature a two-piece insert, which includes a ferrule—a metal or plastic component that compresses the hose onto the fitting, creating a secure, leak-proof seal. The difference between two-piece and one-piece fittings is that two-piece fittings have separate components—the ferrule and the fitting body—allowing for more flexibility in installation and easier replacement, while one-piece fittings are pre-assembled, making them faster to install but offering less flexibility. The A-FO45 fitting features a 45° ORFS (O-Ring Face Seal) female swivel connection, making it ideal for high-pressure fluid systems. These fittings are perfect for use with Alfabiotech 3000 (1 ¼" and 1 ½") and Alfabiotech 4000 (³⁄₈" to 1 ¼") hoses, as well as smaller ID spiral wire reinforced hoses, ensuring a reliable, durable hose connection for demanding industrial applications.
