Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 45-Degree |
| Pressure Rating | 5000 |
| Fitting Style | Rigid |
| Series | A-C614 |
| Country of Manufacture | Italy |
| Height | 1.75 |
| Length | 5.35 |
| Width | 1.75 |
| Weight | 0.6 |
| Side 1 Size | 3/4 (-12) |
| Side 1 Type | Hose |
| Side 2 Gender | Flange |
| Side 2 Size | 1 (-16) |
| Side 2 Type | Code 61 |
Description

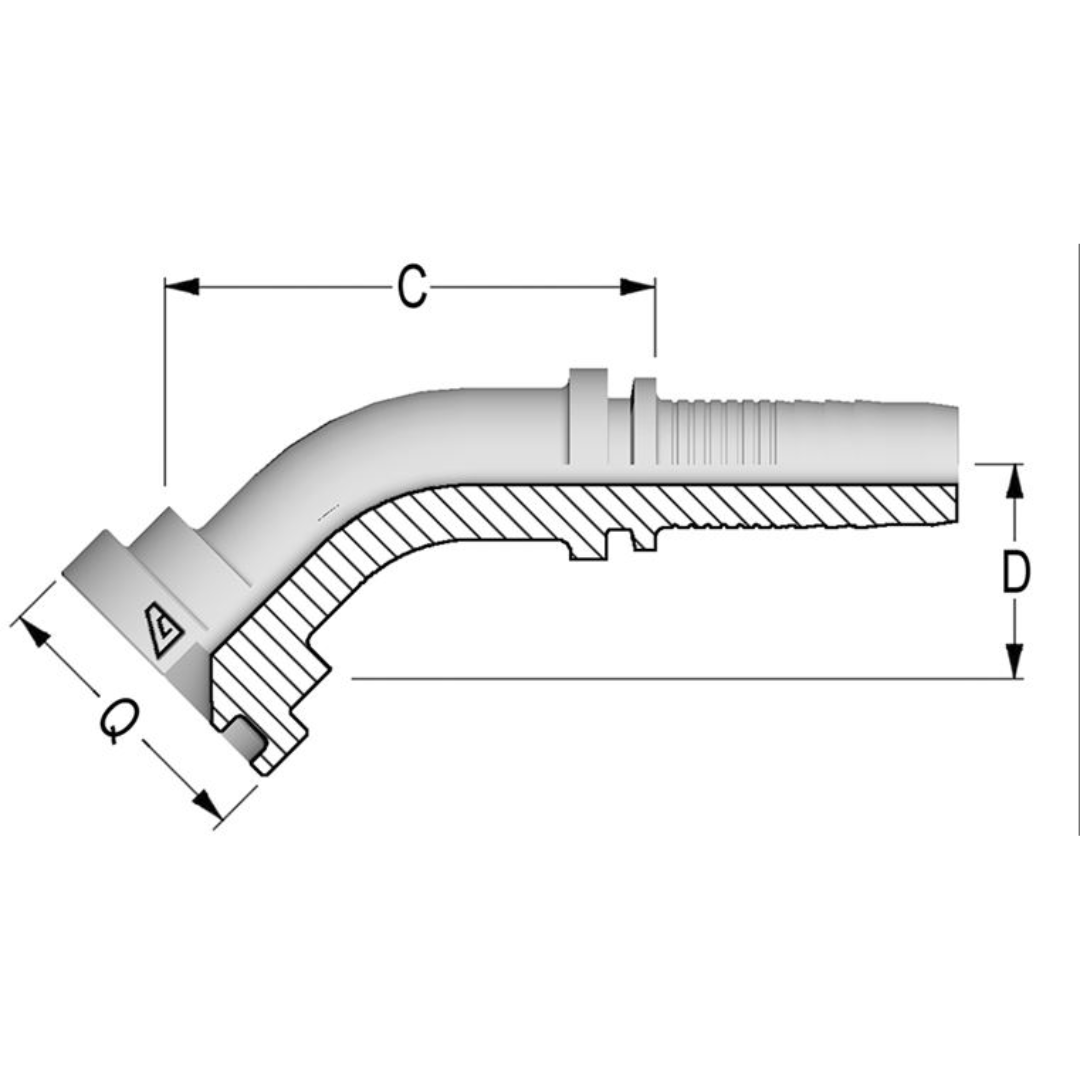

The Alfagomma A-C614 Two-Piece Fittings are 45-degree, carbon steel hose fittings designed with an O-ring flange that meets SAE J518 Code 61 standards, providing secure connections for hoses in high-pressure systems. These fittings use a two-piece design, which includes a ferrule—a metal or plastic component that compresses the hose against the fitting, ensuring a tight, leak-proof seal. The key difference between two-piece and one-piece fittings is that two-piece fittings are made of separate parts (the ferrule and fitting body), offering flexibility for maintenance and easier installation, while one-piece fittings are pre-assembled and ready to use but offer less flexibility. The A-C614 fitting is compatible with wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech hoses in sizes ranging from ³⁄₁₆" to 2" in diameter, including Alfabiotech 3000 (1 ¼" and 1 ½") and Alfabiotech 4000 (³⁄₈" to 1 ¼") hoses. This durable and reliable fitting is perfect for use in demanding industrial applications, ensuring long-lasting, secure connections.
