Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Swivel |
| Series | A-FPMS |
| Country of Manufacture | Italy |
| Height | 1.18 |
| Length | 2.25 |
| Width | 1.18 |
| Weight | 0.26 |
| Side 1 Size | 3/4 (-12) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 3/4-14 (-12) |
| Side 2 Type | NPSM |
Description

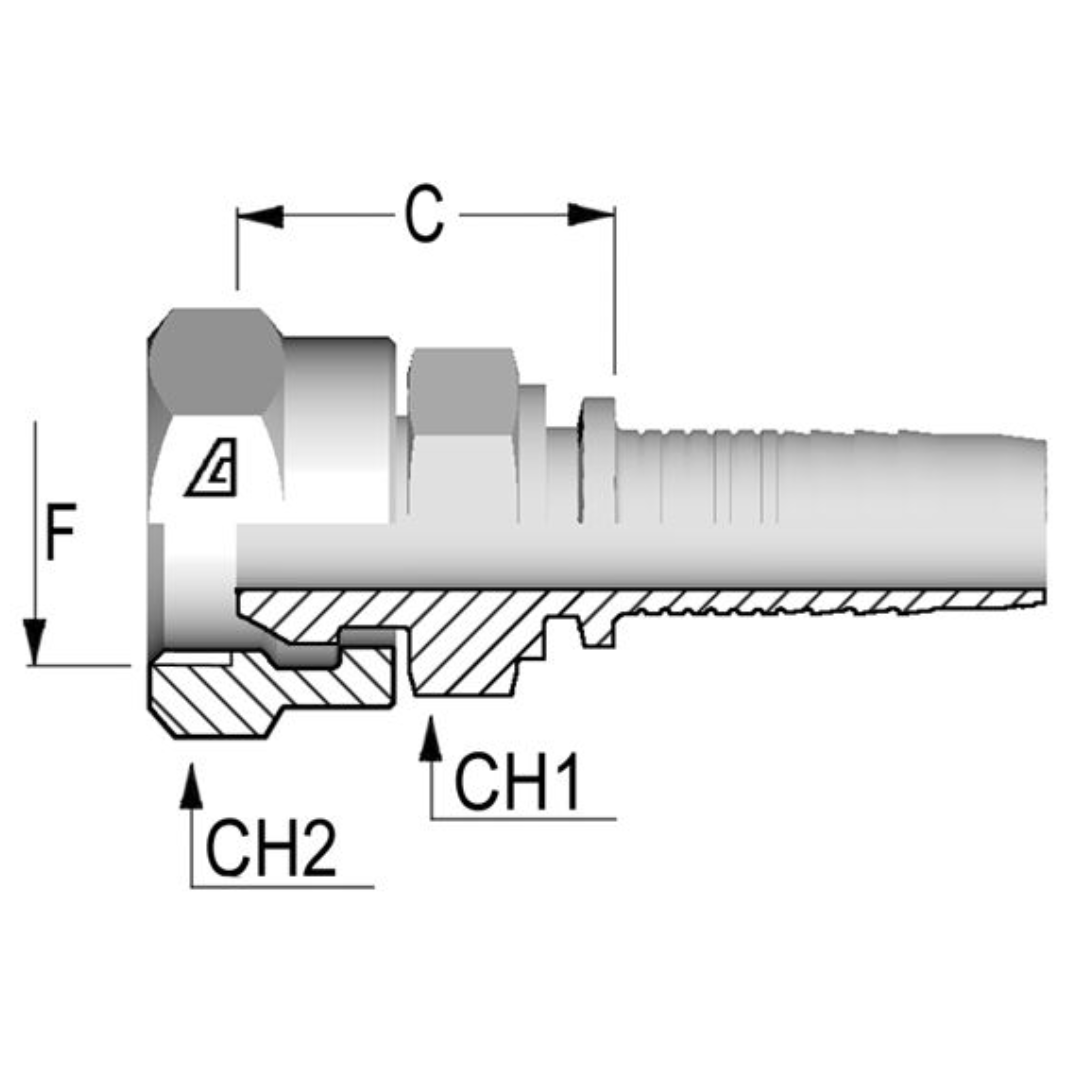

The Alfagomma A-FMPS Two-Piece Fittings are straight, carbon steel fittings designed to connect wire-braided hoses, textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech hoses ranging from ³⁄₁₆" to 2" in diameter. These fittings use a two-piece insert, which includes a ferrule—a metal or plastic component that compresses the hose tightly onto the fitting, ensuring a secure, leak-proof seal. The difference between two-piece and one-piece fittings is that two-piece fittings consist of separate components (the ferrule and fitting body), offering more flexibility and ease of installation or replacement, while one-piece fittings are pre-assembled for quicker installation. The A-FMPS fitting features an NPSM (National Pipe Straight Mechanical) female swivel with a 60° seat, providing a durable and reliable connection for high-pressure fluid systems. This fitting is ideal for use with Alfabiotech 3000 (1 ¼" and 1 ½") and Alfabiotech 4000 (³⁄₈" to 1 ¼") hoses, as well as smaller ID spiral wire reinforced hoses, making it perfect for industrial applications that require secure, long-lasting hose connections.
