Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 45-Degree |
| Fitting Style | Swivel |
| Series | A-FO45 |
| Country of Manufacture | Italy |
| Height | 1.42 |
| Length | 5 |
| Width | 1.42 |
| Weight | 0.6 |
| Side 1 Size | 3/4 (-12) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 1 3/16-12 (-12) |
| Side 2 Type | ORFS |
Description

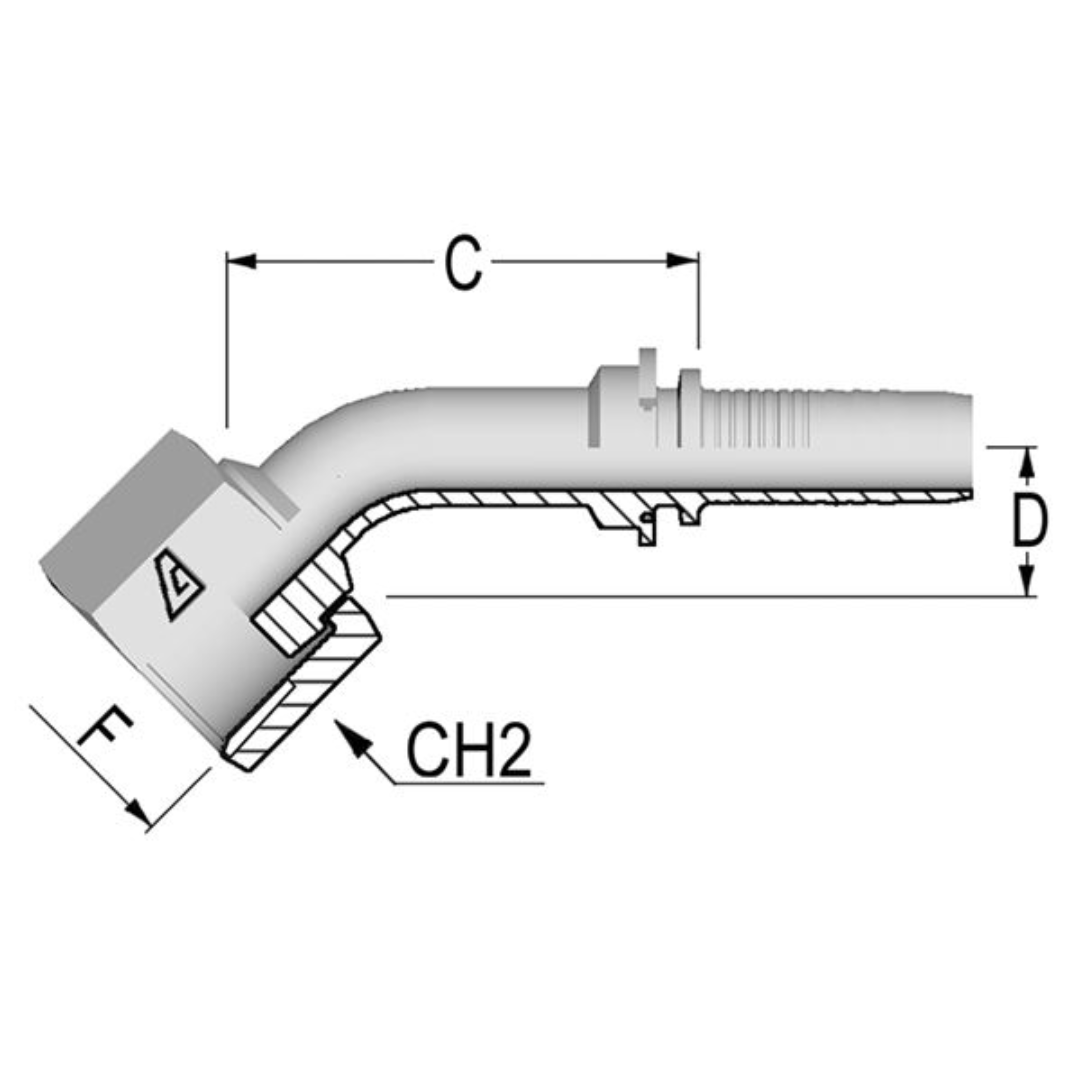

The Alfagomma A-FO45 Two-Piece Fittings are 45-degree, carbon steel fittings designed to connect wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech hoses ranging from ³⁄₁₆" to 2" in diameter. These fittings feature a two-piece insert, which includes a ferrule—a metal or plastic component that compresses the hose onto the fitting, creating a secure, leak-proof seal. The difference between two-piece and one-piece fittings is that two-piece fittings have separate components—the ferrule and the fitting body—allowing for more flexibility in installation and easier replacement, while one-piece fittings are pre-assembled, making them faster to install but offering less flexibility. The A-FO45 fitting features a 45° ORFS (O-Ring Face Seal) female swivel connection, making it ideal for high-pressure fluid systems. These fittings are perfect for use with Alfabiotech 3000 (1 ¼" and 1 ½") and Alfabiotech 4000 (³⁄₈" to 1 ¼") hoses, as well as smaller ID spiral wire reinforced hoses, ensuring a reliable, durable hose connection for demanding industrial applications.
