Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Fitting Style | Swivel |
| Series | A-MBS9 |
| Country of Manufacture | Italy |
| Height | 1.26 |
| Length | 2.13 |
| Width | 1.26 |
| Weight | 0.33 |
| Side 1 Size | 5/8 (-10) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 1 1/16-12 (-12) |
| Side 2 Type | ORB |
Description

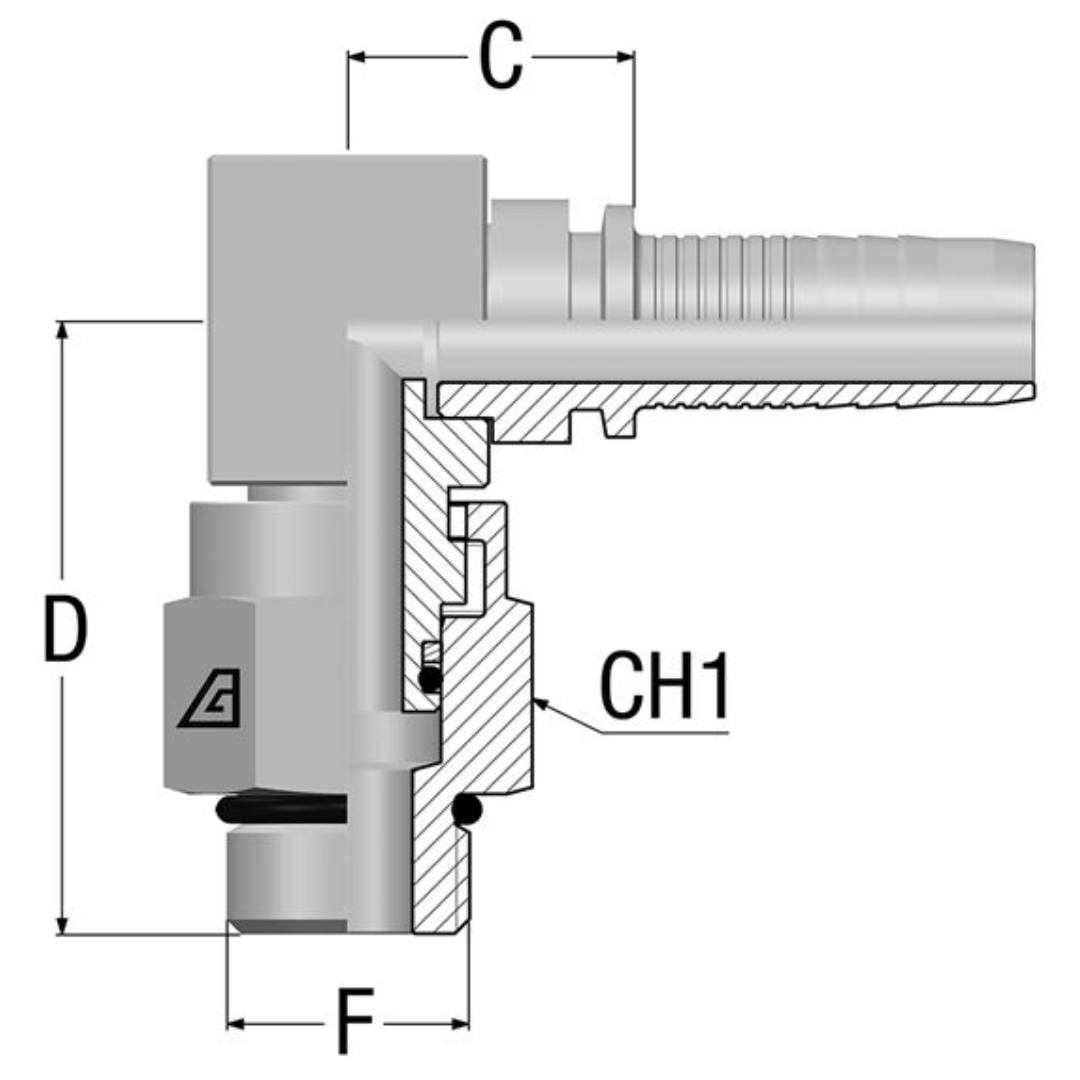

The Alfagomma A-MBS9 Two-Piece Fittings are robust, 90-degree angle hose fittings made from carbon steel, designed to connect hoses to SAE Male O-Ring Boss (ORB) ports with a swivel feature. These fittings are particularly suited for wire and textile braided hoses, thermoplastic hoses, Flexor 4, and PTFE hoses in sizes ranging from ³⁄₁₆" to 2", as well as Alfabiotech hoses in sizes ³⁄₈" to 1 ½". The "two-piece" design consists of an insert and a ferrule, which work together to ensure a tight, leak-free connection between the hose and the fitting. Ferrules are metal rings that help securely clamp the hose onto the fitting, creating a strong seal under pressure. The key difference between two-piece and one-piece fittings is that two-piece fittings allow more flexibility and ease of assembly, while one-piece fittings are pre-assembled, offering a quicker but less customizable option. The A-MBS9 Two-Piece Fittings are ideal for high-pressure applications, ensuring long-lasting, reliable connections in various hydraulic systems.
