Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | A-FSAE |
| Country of Manufacture | Italy |
| Height | 1.06 |
| Length | 2.21 |
| Width | 1.06 |
| Weight | 0.34 |
| Side 1 Size | 5/8 (-10) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 1 1/16-14 (-12) |
| Side 2 Type | SAE 45 |
Description

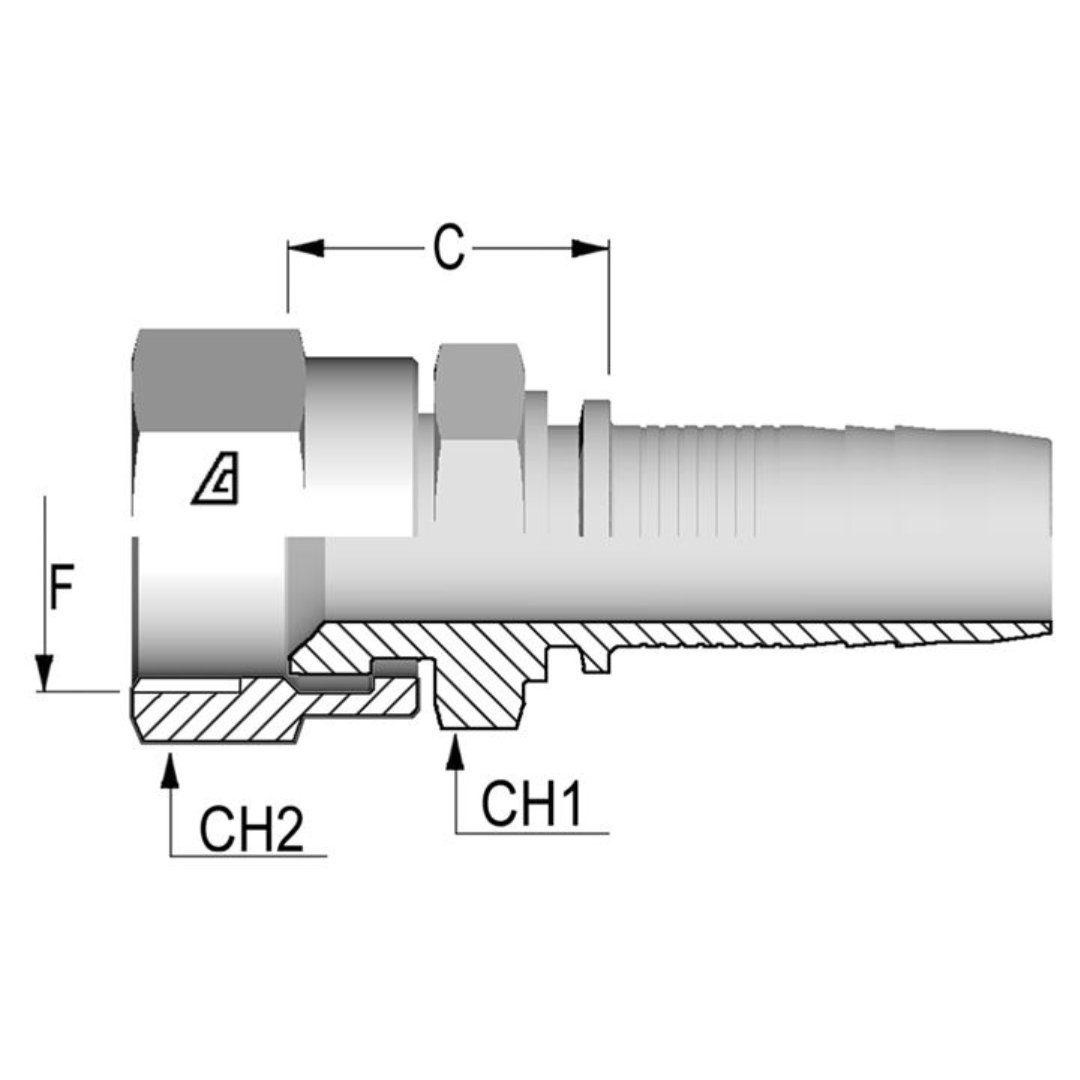

The Alfagomma A-FSAE Two-Piece Fittings are straight, carbon steel fittings designed to securely connect wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech hoses ranging from ³⁄₁₆" to 2" in diameter. These fittings use a two-piece insert, which includes a ferrule—a metal or plastic component that compresses the hose onto the fitting, creating a tight, leak-proof seal. The difference between two-piece and one-piece fittings is that two-piece fittings are made of separate components (the ferrule and fitting body), offering more flexibility during installation and making replacement easier. In contrast, one-piece fittings are pre-assembled and faster to install. The A-FSAE fitting features an SAE female 45° seat with a double hex design, providing a secure, reliable connection for high-pressure fluid systems. This fitting is perfect for use with Alfabiotech 3000 (1 ¼" and 1 ½") and Alfabiotech 4000 (³⁄₈" to 1 ¼") hoses, as well as smaller ID spiral wire reinforced hoses, ensuring durable, long-lasting hose connections for demanding industrial applications.
