Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Swivel |
| Series | A-FBFS |
| Country of Manufacture | Italy |
| Height | 1.26 |
| Length | 1.39 |
| Width | 1.26 |
| Weight | 0.44 |
| Side 1 Size | 5/8 (-10) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 3/4-14 (-12) |
| Side 2 Type | BSPP |
Description

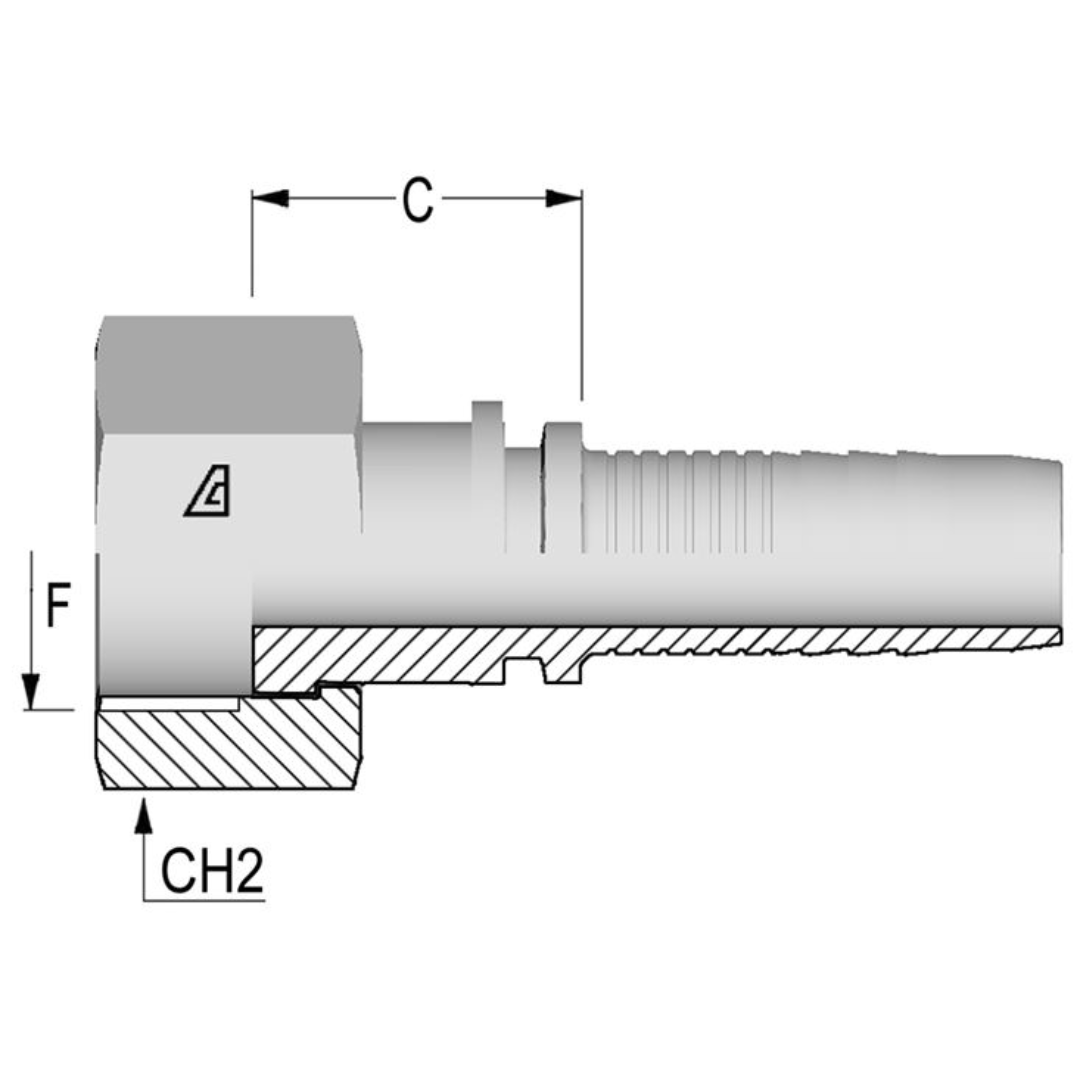

The Alfagomma A-FBFS Two-Piece Fittings are straight, carbon steel hose fittings designed to connect hoses to BSP female swivel fittings with a flat seat. These fittings are part of the A Series, specifically designed for use with a range of hoses, including wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and some smaller ID spiral wire reinforced hoses. Ferrules are small, durable components that help secure the hose to the fitting, ensuring a leak-free connection. The main difference between two-piece and one-piece fittings is that two-piece fittings consist of separate parts that allow for easier maintenance and replacement of individual components, while one-piece fittings are a single, fixed unit. The A-FBFS fittings provide a reliable and flexible connection for fluid power systems, offering durability and performance across various hose types and applications.
