Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | A-MBPP |
| Country of Manufacture | Italy |
| Height | 1.06 |
| Length | 2.53 |
| Width | 1.06 |
| Weight | 0.2 |
| Side 1 Size | 1/2 (-08) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 1/2-14 (-08) |
| Side 2 Type | BSPP |
Description

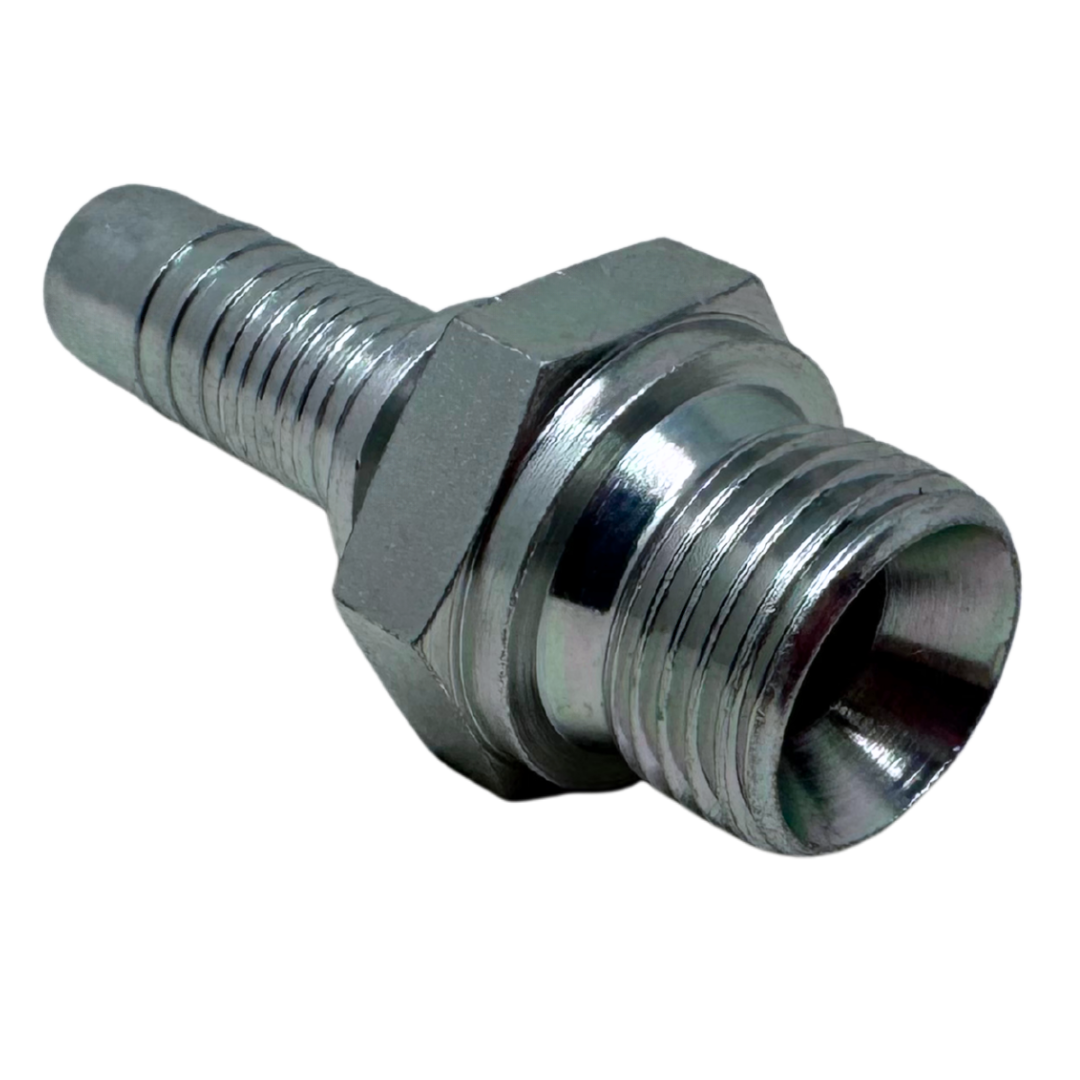

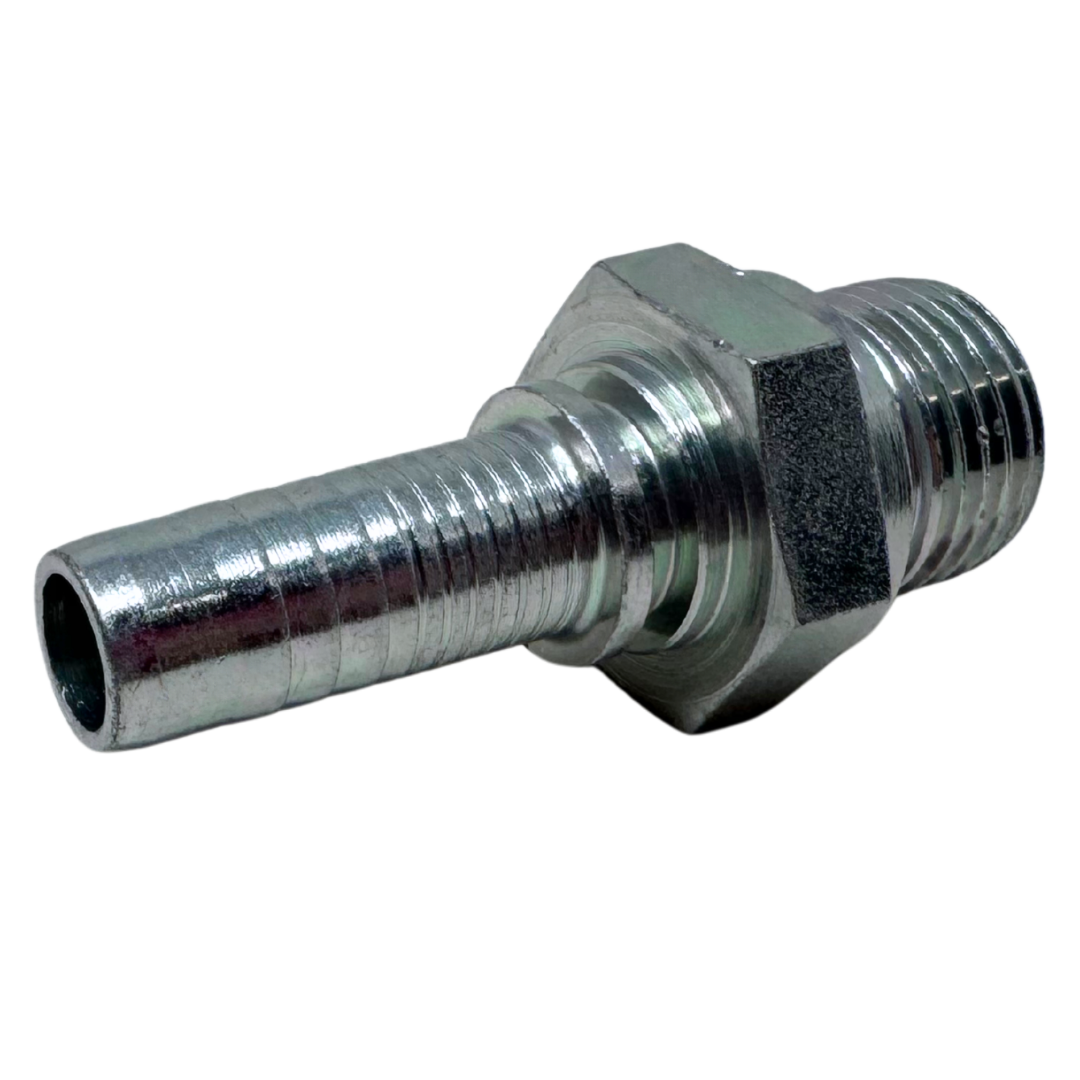

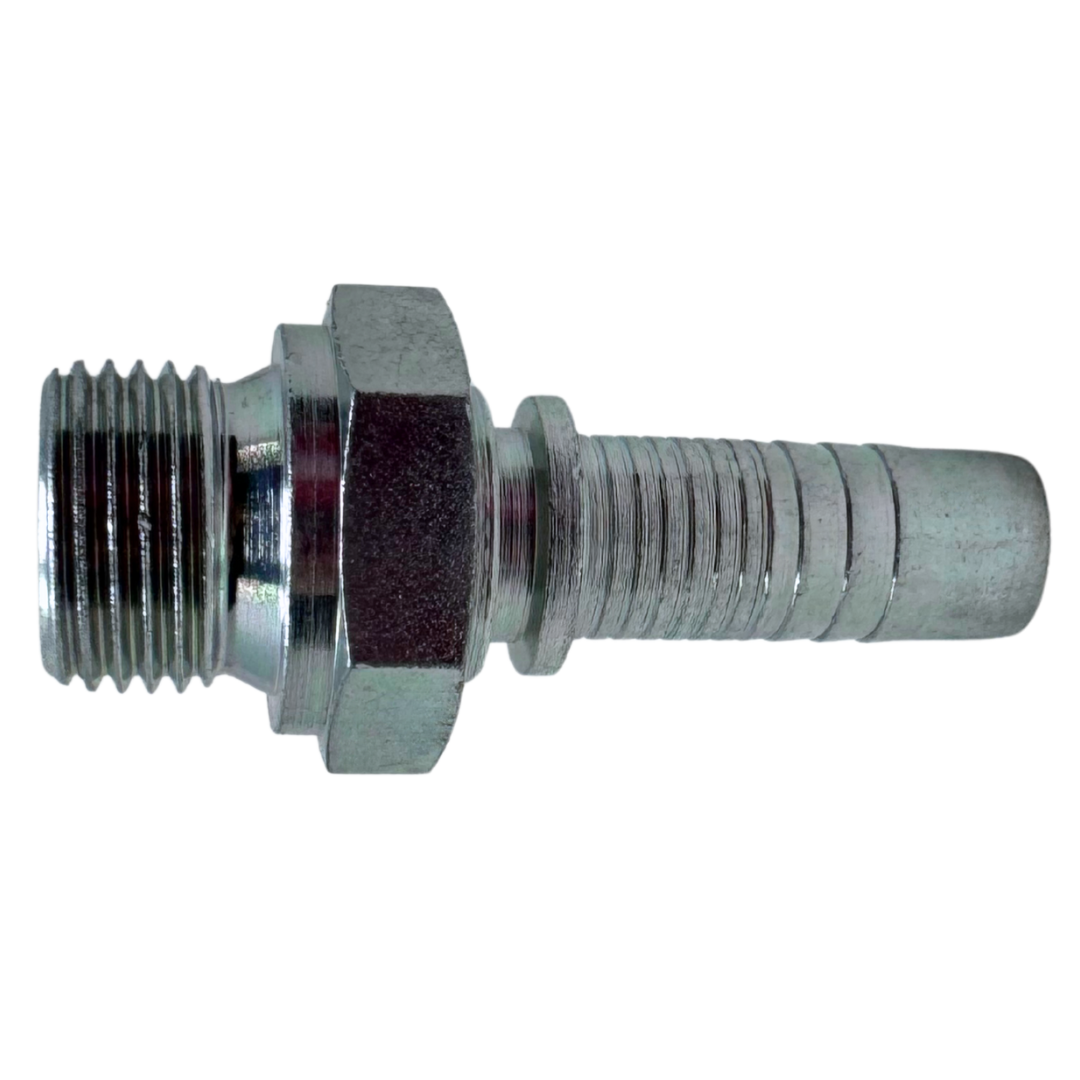

The Alfagomma A-MBPP Two-Piece Fittings are high-quality, straight, carbon steel fittings designed to connect hoses to BSP (British Standard Pipe) male parallel threaded connections with a 60° seat. These fittings are commonly used for wire and textile braided hoses, thermoplastic hoses, and Flexor 4 and PTFE hoses, with sizes ranging from ³⁄₁₆" to 2" ID. The two-piece fitting design includes a hose end and a ferrule, a metal sleeve that helps securely clamp the hose to the fitting, ensuring a leak-proof connection. The difference between two-piece and one-piece fittings is that two-piece fittings consist of separate parts that are assembled together, allowing for easier installation and replacement, while one-piece fittings are a single unit, providing a more compact but less flexible option. Ferrules are essential components in a two-piece fitting setup, helping to ensure that the hose is tightly and securely attached to the fitting. These fittings are ideal for applications requiring strength, durability, and reliability, particularly in high-pressure systems.
