Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | A-MMSH |
| Country of Manufacture | Italy |
| Height | 0.87 |
| Length | 2.15 |
| Width | 0.87 |
| Weight | 0.12 |
| Side 1 Size | 3/8 (-06) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | M22x1.5 (-S14) |
| Side 2 Type | Heavy Duty DIN Tube |
Description

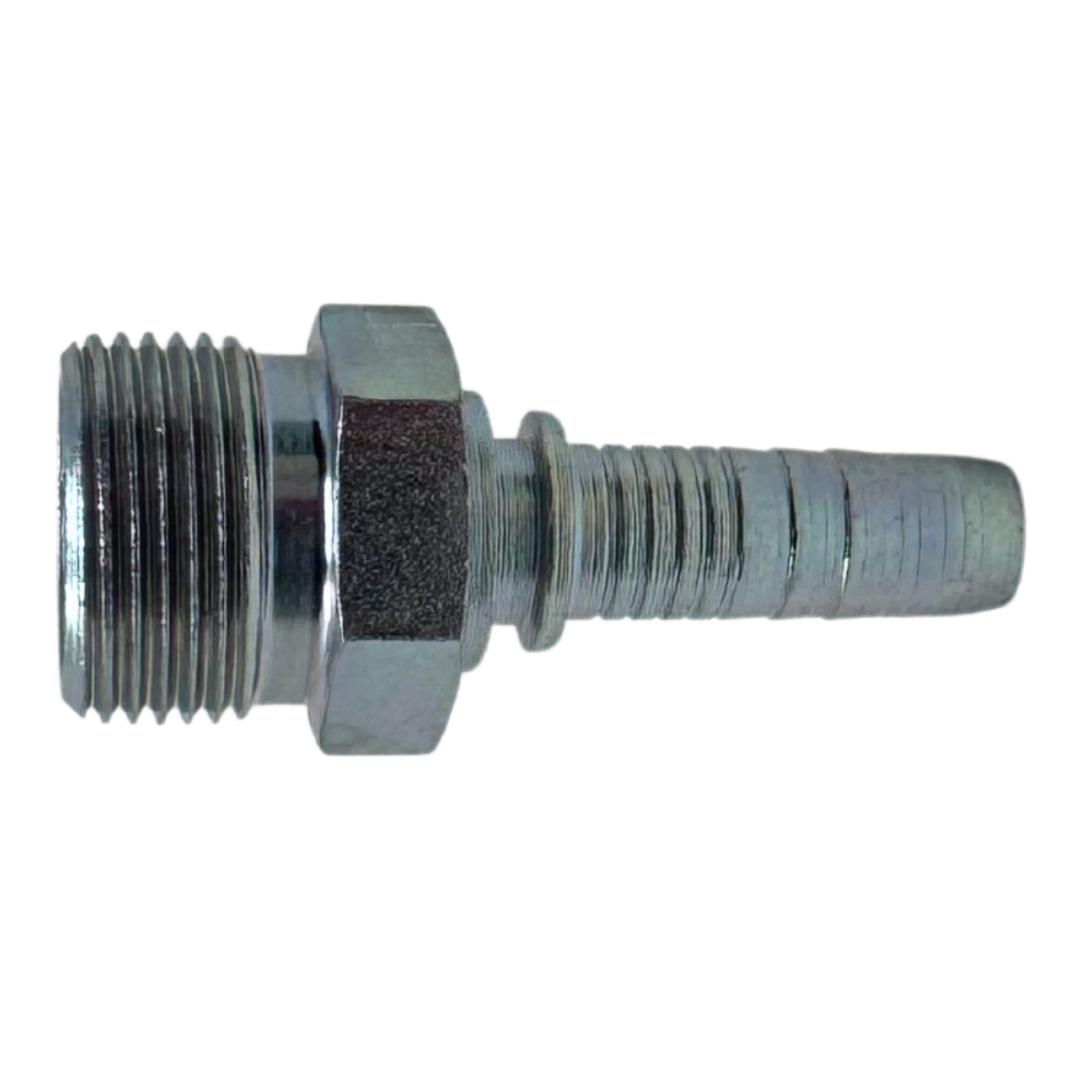

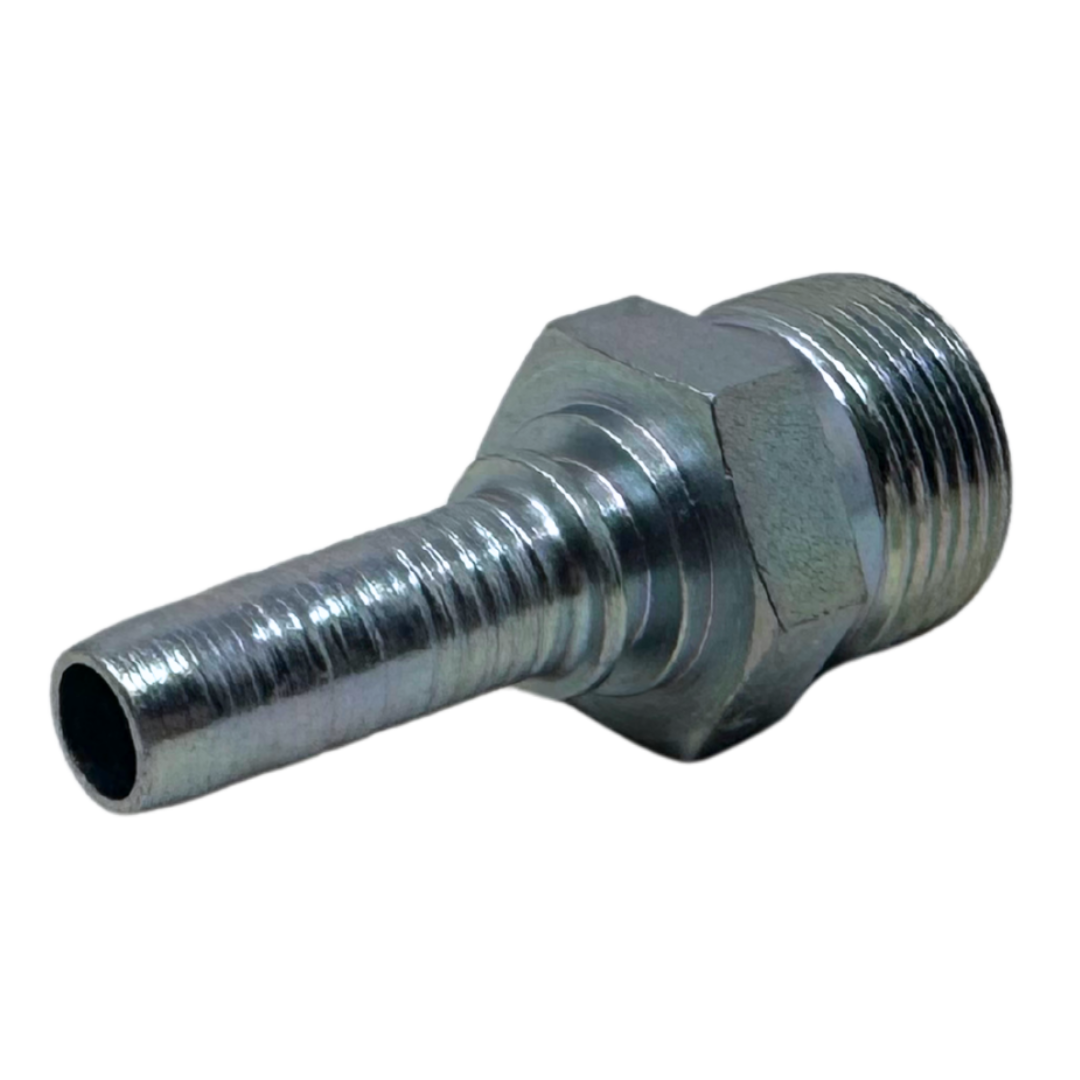

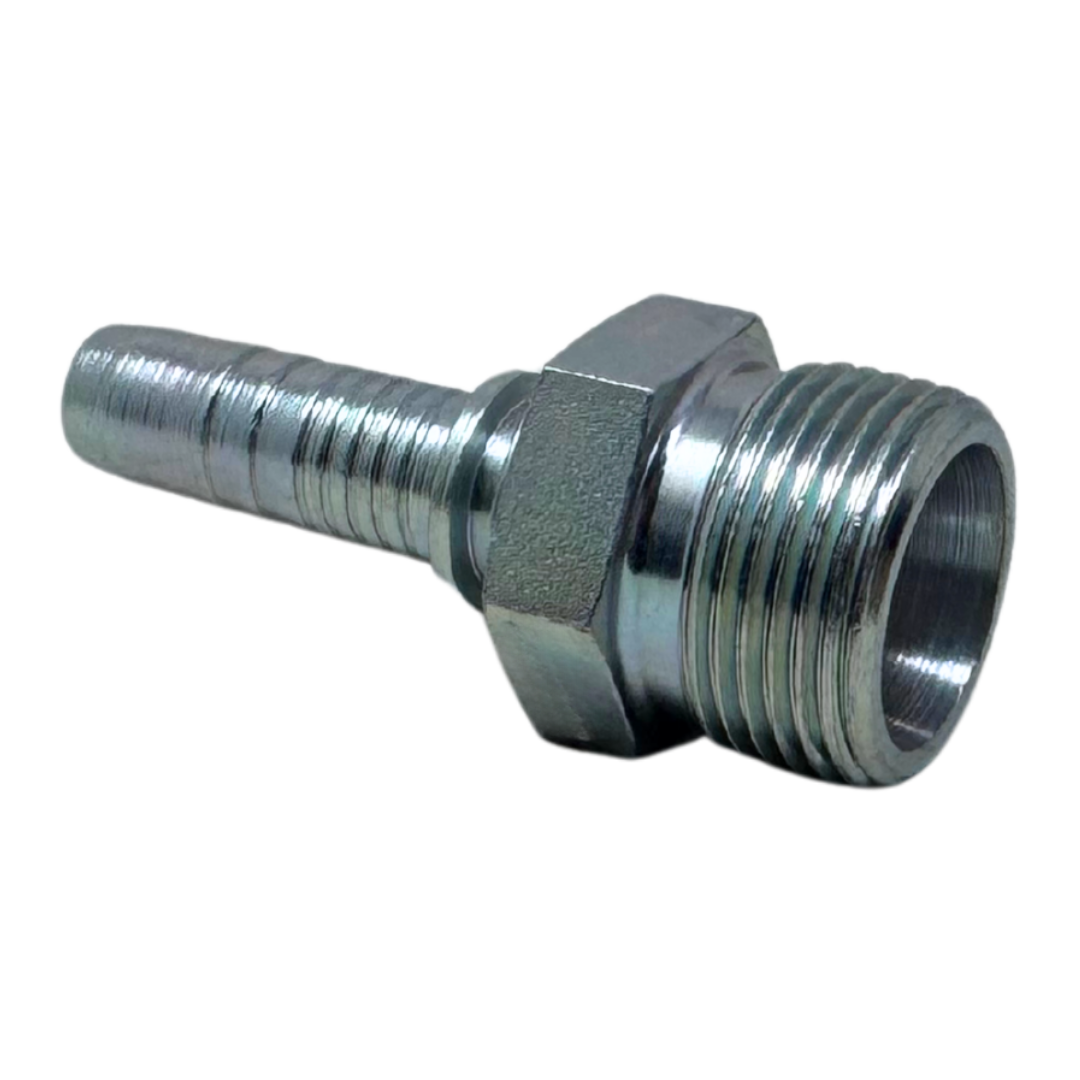

The Alfagomma A-MMSH Two-Piece Fittings are straight, carbon steel hose end fittings designed for use with metric male 24° seat connections, specifically for DIN 3853 heavy-duty DIN tubes. These fittings are ideal for wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech hoses, ranging from ³⁄₁₆" to 2" in diameter, and for some smaller ID spiral wire reinforced hoses. Ferrules are metal inserts that are used to tightly secure the hose to the fitting, ensuring a durable, leak-proof connection. Two-piece fittings consist of two parts that work together, providing flexibility and ease of maintenance, while one-piece fittings are solid, durable, and less adjustable. The two-piece design offers easy repair and replacement of components, making it ideal for industries where flexibility and reliability are key.
