Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | A-MORB |
| Country of Manufacture | Italy |
| Height | 1.06 |
| Length | 2.11 |
| Width | 1.06 |
| Weight | 0.16 |
| Side 1 Size | 3/8 (-06) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 7/8-14 (-10) |
| Side 2 Type | ORB |
Description

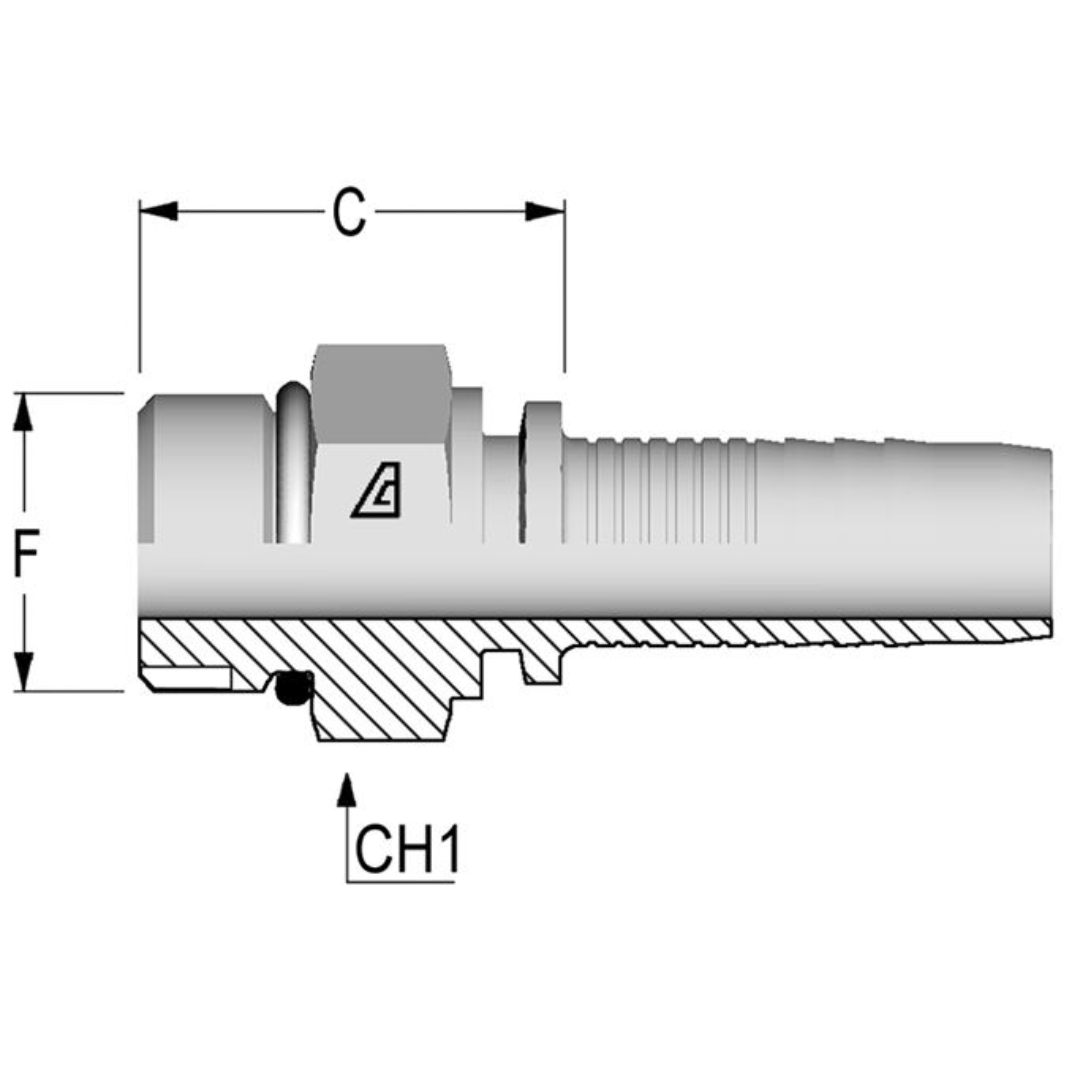

The Alfagomma A-MORB Two-Piece Fittings are straight, carbon steel fittings designed to securely connect wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech hoses ranging from ³⁄₁₆" to 2" in diameter. These fittings use a two-piece insert, which includes a ferrule—a metal or plastic component that compresses the hose tightly onto the fitting to ensure a strong, leak-proof seal. The key difference between two-piece and one-piece fittings is that two-piece fittings allow for more flexibility during installation, as the ferrule and fitting body are separate, making it easier to install or replace. In contrast, one-piece fittings are pre-assembled for a quicker installation process. The A-MORB fitting features an SAE male O-ring boss connection, providing a secure and reliable seal for high-pressure fluid systems. This fitting is ideal for use with Alfabiotech 3000 (1 ¼" and 1 ½") and Alfabiotech 4000 (³⁄₈" to 1 ¼") hoses, as well as smaller ID spiral wire reinforced hoses, ensuring durable and long-lasting hose connections in demanding industrial environments.
