Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | A-MOFS |
| Country of Manufacture | Italy |
| Height | 0.75 |
| Length | 1.91 |
| Width | 0.75 |
| Weight | 0.11 |
| Side 1 Size | 3/8 (-06) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 11/16-16 (-06) |
| Side 2 Type | ORFS |
Description

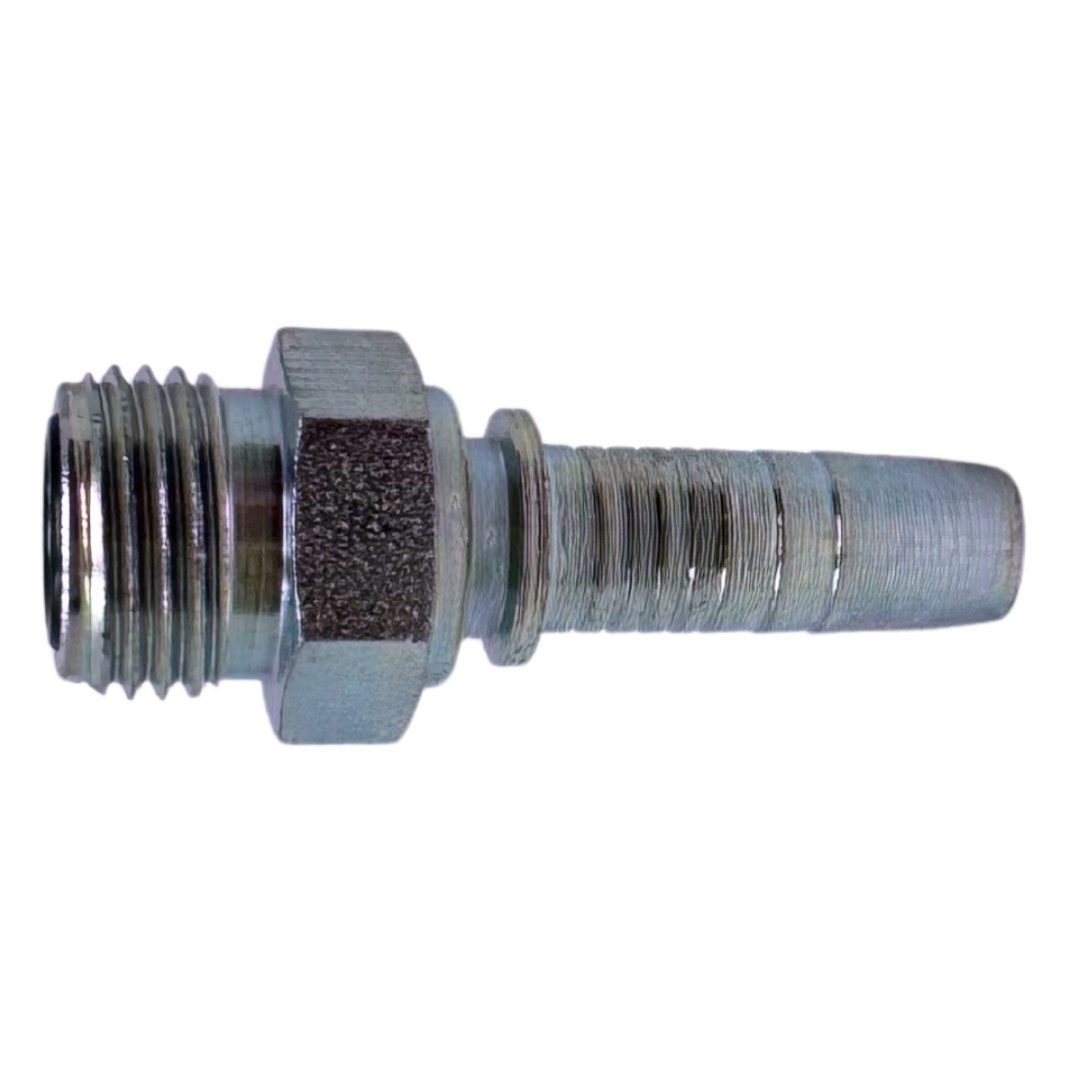

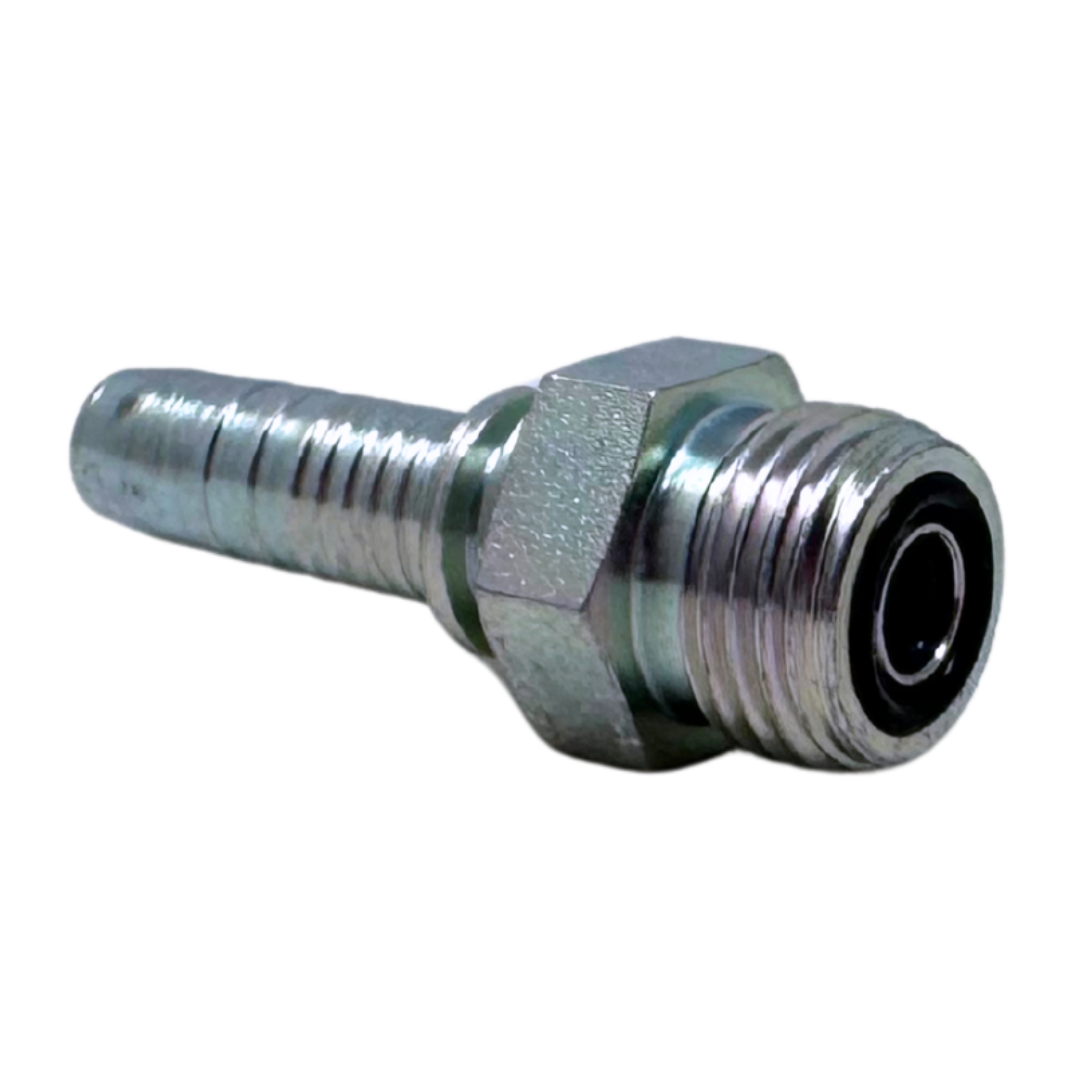

The Alfagomma A-MOFS Two-Piece Fittings are straight, carbon steel fittings designed to securely connect wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech hoses ranging from ³⁄₁₆" to 2" in diameter. These fittings feature a two-piece insert, which includes a ferrule—a metal or plastic component that compresses the hose tightly onto the fitting to create a strong, leak-proof seal. The main difference between two-piece and one-piece fittings is that two-piece fittings consist of separate components—the ferrule and the fitting body—offering flexibility in installation and easier replacement. One-piece fittings, in contrast, are pre-assembled for faster installation but offer less flexibility. The A-MOFS fitting features an ORFS (O-Ring Face Seal) male connection, providing a reliable, durable connection for high-pressure fluid systems. Ideal for use with Alfabiotech 3000 (1 ¼" and 1 ½") and Alfabiotech 4000 (³⁄₈" to 1 ¼") hoses, as well as smaller ID spiral wire reinforced hoses, this fitting ensures long-lasting, secure hose connections in demanding industrial applications.
