Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Fitting Style | Swivel |
| Series | A-FBC9 |
| Country of Manufacture | Italy |
| Height | 0.87 |
| Length | 1.54 |
| Width | 0.87 |
| Weight | 0.2 |
| Side 1 Size | 3/8 (-06) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 3/8-19 (-06) |
| Side 2 Type | BSPP |
Description

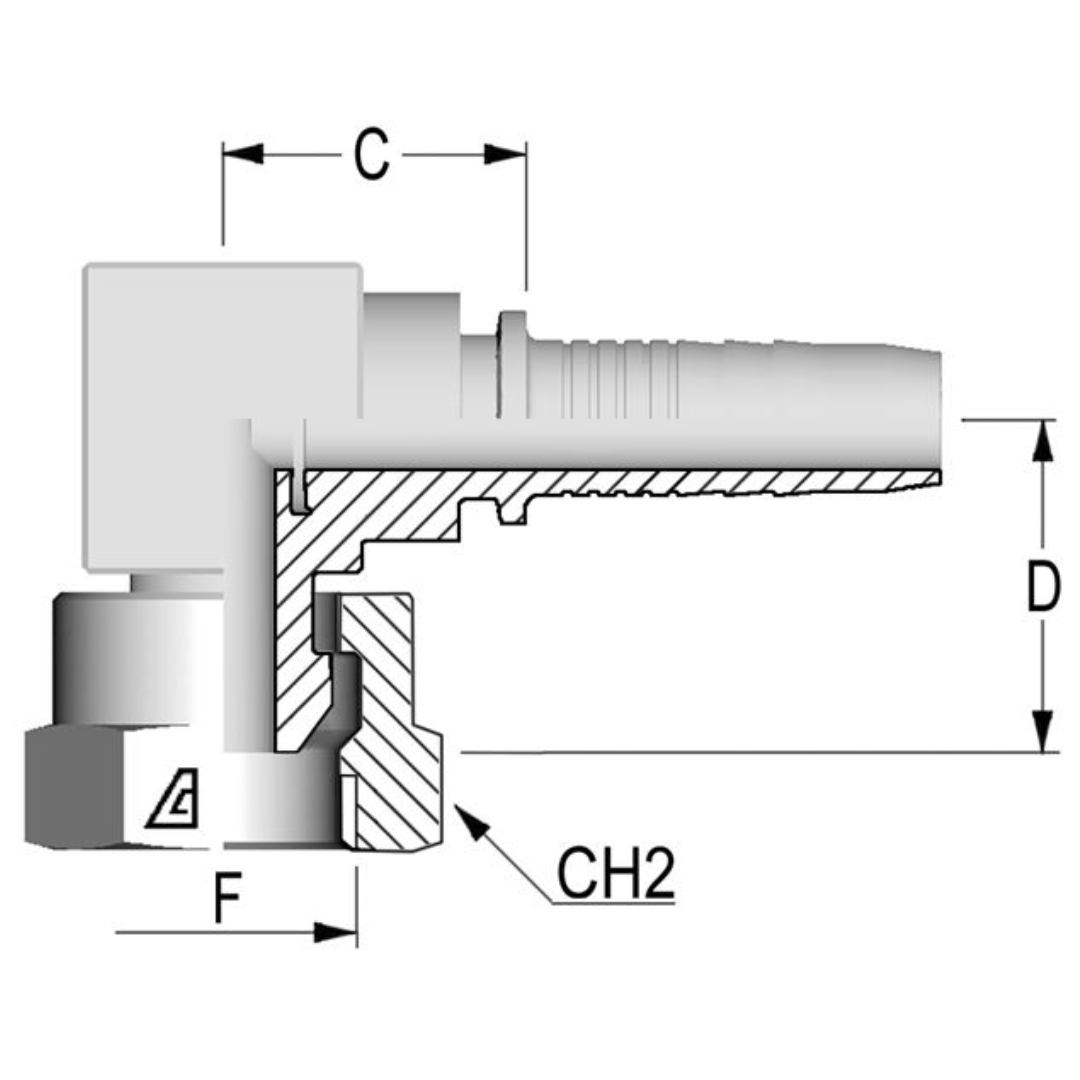

The Alfagomma A-FBC9 Two-Piece Fittings are 90-degree carbon steel hose fittings designed to connect hoses to a BSP (British Standard Pipe) compact female elbow with a 60° cone. These fittings feature a two-piece design, meaning the hose end and the connector are separate parts, which makes maintenance and replacement of individual components easier. Ferrules are small cylindrical rings used to securely attach the hose to the fitting, ensuring a tight, leak-free connection. The key difference between two-piece and one-piece fittings is that two-piece fittings provide greater flexibility by allowing each part to be replaced separately, while one-piece fittings are a single unit. The A-FBC9 fittings are suitable for a variety of hoses, including wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and smaller ID spiral wire reinforced hoses. This combination of versatility and durability makes them ideal for high-performance fluid systems.
