Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Fitting Style | Rigid |
| Series | A-FAE9 |
| Country of Manufacture | Italy |
| Height | 1.38 |
| Length | 2.48 |
| Width | 1.38 |
| Weight | 0.17 |
| Side 1 Size | 5/16 (-5) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 5/8-18 (-6) |
| Side 2 Type | SAE 45 |
Description

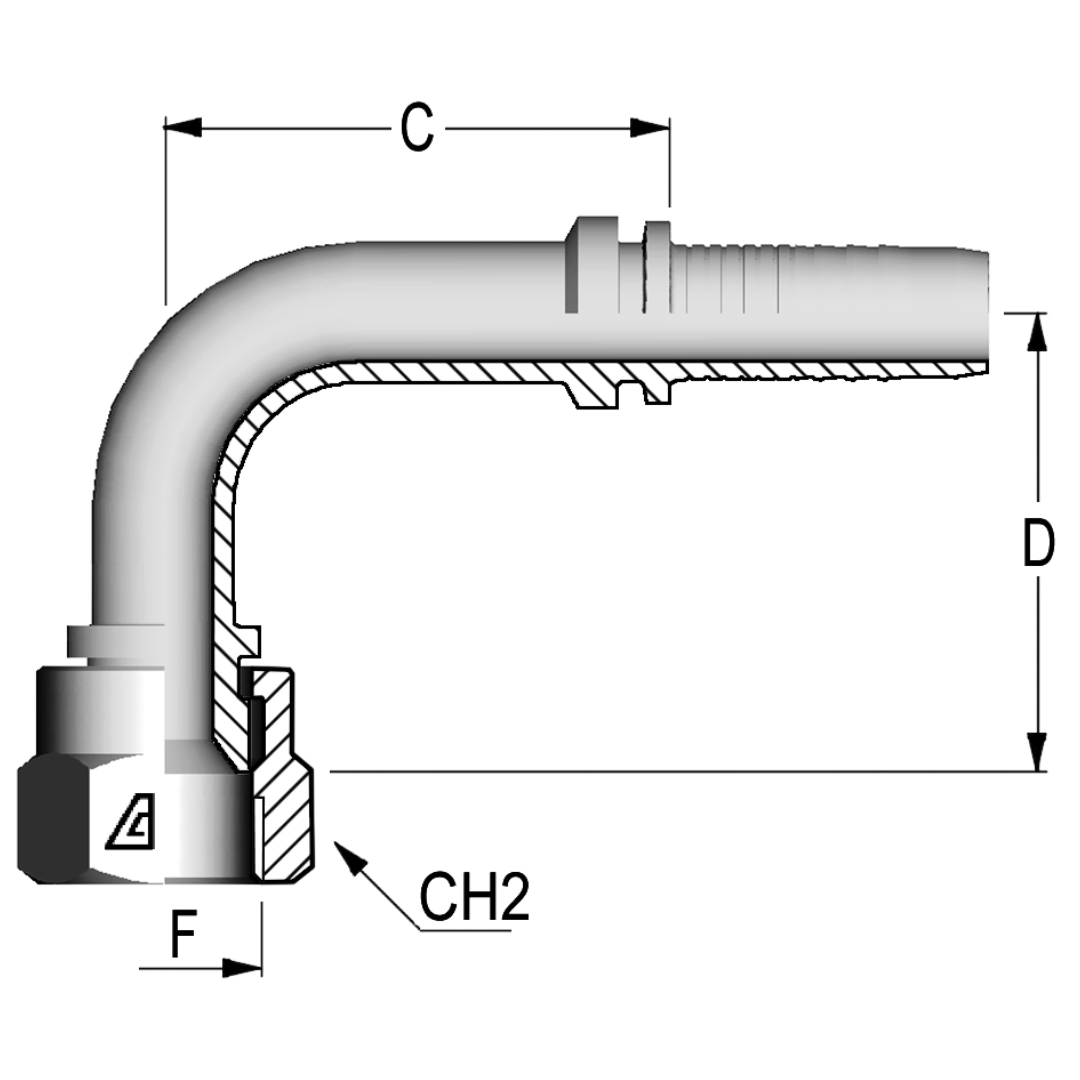

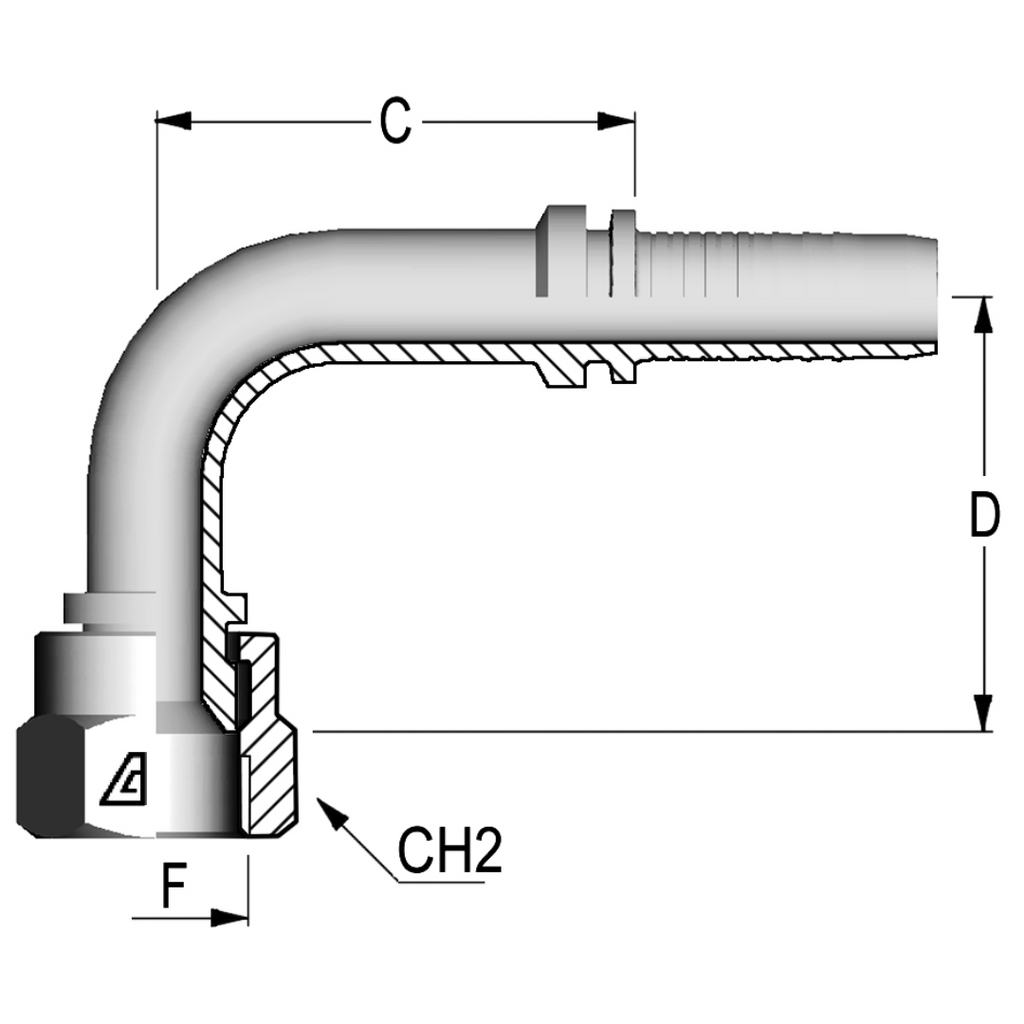

The Alfagomma A-FAE9 Two-Piece Fittings are 90-degree, carbon steel fittings designed to connect wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech hoses ranging from ³⁄₁₆" to 2" in diameter. These fittings feature a two-piece insert, which includes a ferrule, a metal or plastic component that tightly compresses the hose onto the fitting, ensuring a secure, leak-proof connection. The difference between two-piece and one-piece fittings is that two-piece fittings have separate components—the ferrule and fitting body—which offer more flexibility during installation, easier replacement, and customization. In contrast, one-piece fittings are pre-assembled, allowing for faster installation but with less flexibility. The A-FAE9 fitting features a 90° female SAE 45° seat, ensuring a durable and reliable connection for high-pressure fluid systems. These fittings are ideal for use with Alfabiotech 3000 (1 ¼" and 1 ½") and Alfabiotech 4000 (³⁄₈" to 1 ¼") hoses, as well as smaller ID spiral wire reinforced hoses, offering a secure and long-lasting solution for demanding industrial applications.
