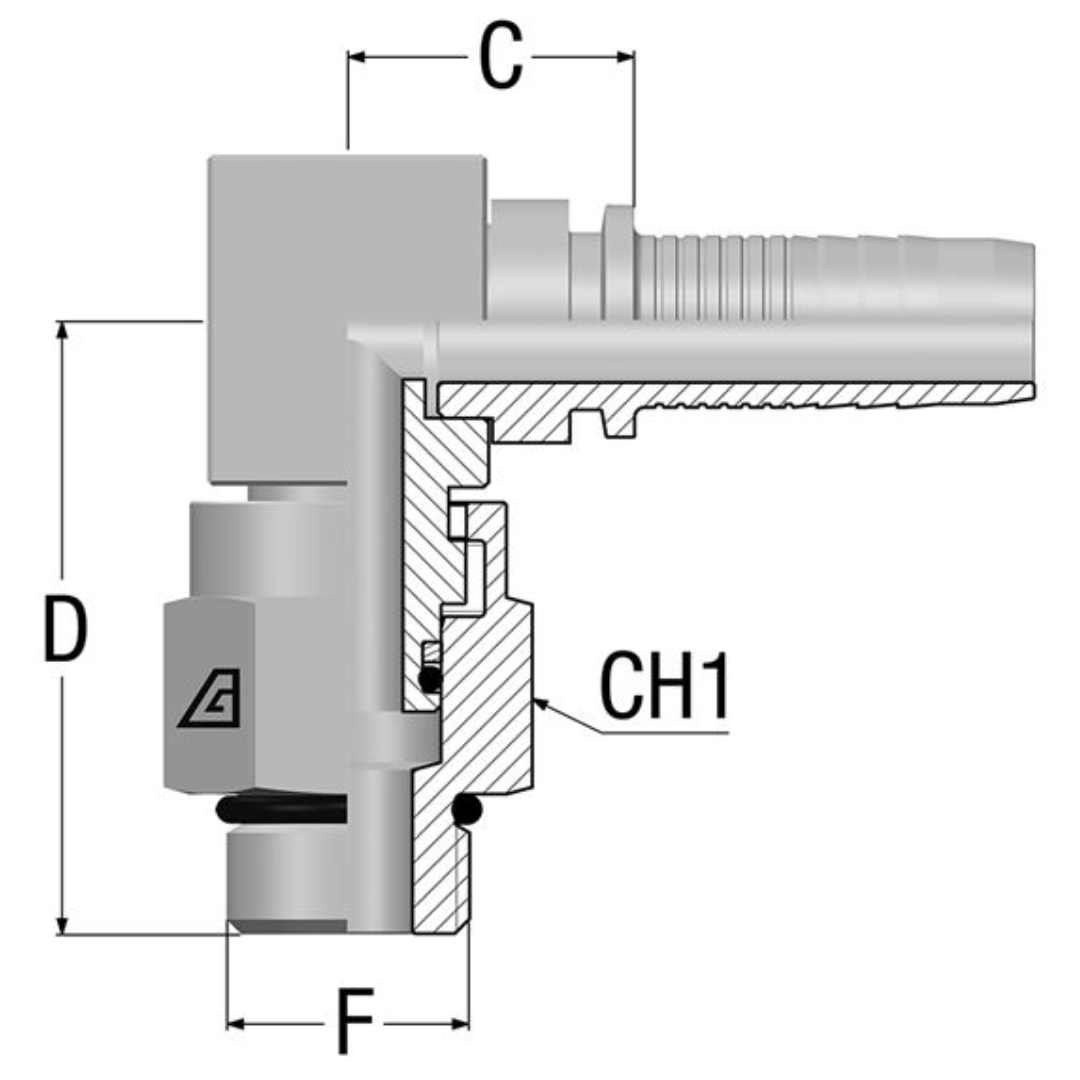

A-0405-MBS9 : Alfagomma 90-Degree Compact Steel Fitting, 1/4 (-04) Hose x 1/2-20 (-05) Male ORB Swivel

The Alfagomma A-MBS9 Two-Piece Fittings are robust, 90-degree angle hose fittings made from carbon steel, designed to connect hoses to SAE Male O-Ring Boss (ORB) ports with a swivel feature. These fittings are particularly suited for wire and textile braided hoses, thermoplastic hoses, Flexor 4, and PTFE hoses in sizes ranging from ³⁄₁₆" to 2", as well as Alfabiotech hoses in sizes ³⁄₈" to 1 ½". The "two-piece" design consists of an insert and a ferrule, which work together to ensure a tight, leak-free connection between the hose and the fitting. Ferrules are metal rings that help securely clamp the hose onto the fitting, creating a strong seal under pressure. The key difference between two-piece and one-piece fittings is that two-piece fittings allow more flexibility and ease of assembly, while one-piece fittings are pre-assembled, offering a quicker but less customizable option. The A-MBS9 Two-Piece Fittings are ideal for high-pressure applications, ensuring long-lasting, reliable connections in various hydraulic systems.
