Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 2-3 Weeks |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Swivel |
| Series | A-MOBS |
| Country of Manufacture | Italy |
| Height | 0.67 |
| Length | 1.34 |
| Width | 0.67 |
| Weight | 0.13 |
| Side 1 Size | 1/4 (-04) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 7/16-20 (-04) |
| Side 2 Type | ORB |
Description

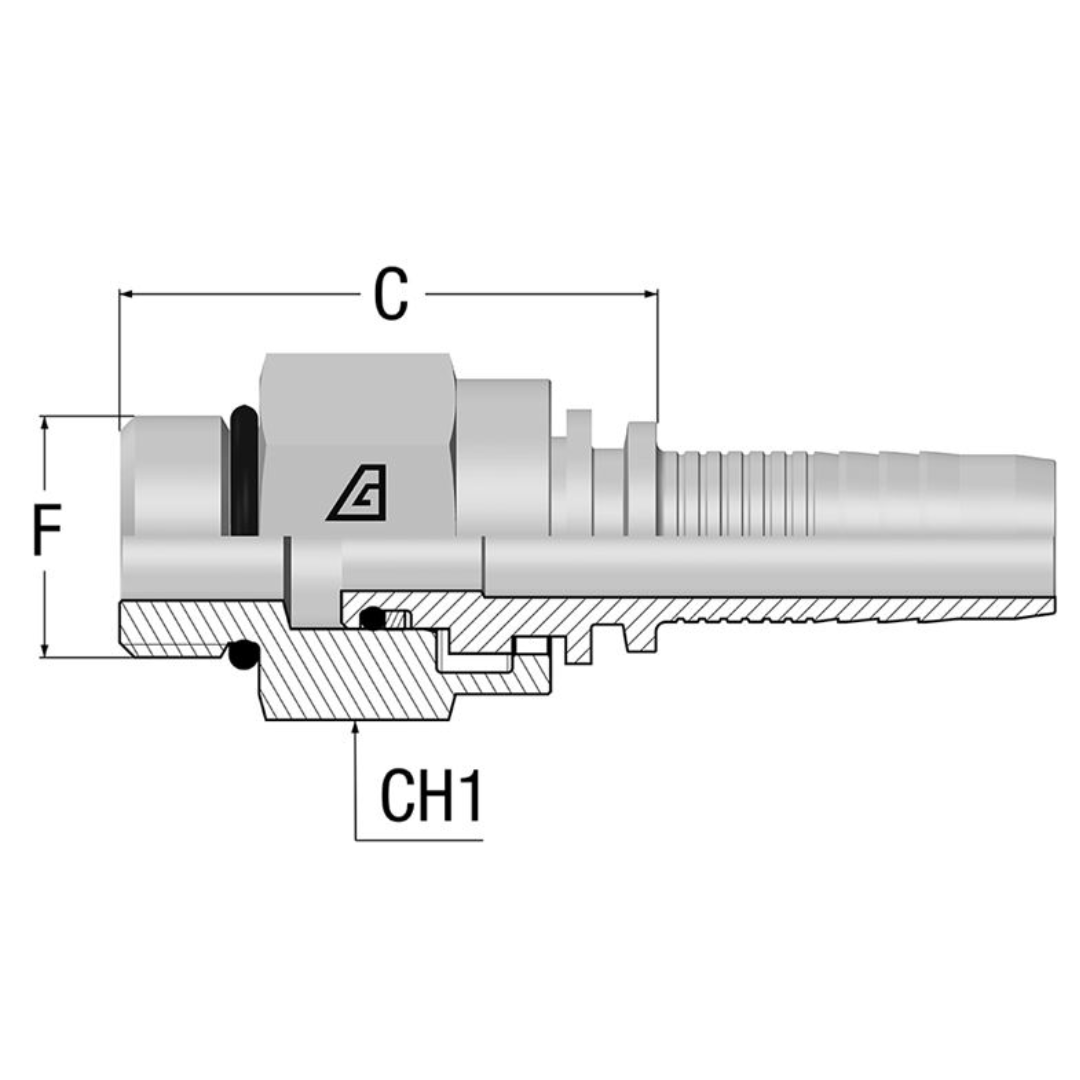

Alfagomma A-MOBS Two-Piece Fittings are durable, high-performance fittings designed to connect hoses to SAE Male O-Ring Boss (ORB) ports with a swivel, typically made of carbon steel for added strength. These fittings are specifically engineered for wire and textile braided hoses, thermoplastic hoses, Flexor 4, and PTFE hoses, in sizes ranging from ³⁄₁₆" to 2" and including Alfabiotech hoses from ³⁄₈" to 1 ½". The "two-piece" design consists of an insert and a ferrule that work together to securely clamp the hose, preventing leaks and ensuring a solid connection. Ferrules are metal rings that tightly hold the hose onto the fitting, ensuring a leak-free seal under pressure. The main difference between two-piece and one-piece fittings is that two-piece fittings allow for easier customization and more flexibility in assembly, while one-piece fittings are pre-assembled for quicker installation. The A-MOBS Two-Piece Fittings are ideal for applications that require a reliable connection with high pressure and swivel capabilities, making them versatile and durable for various hydraulic systems.
