Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Fitting Style | Swivel |
| Series | A-FO9L |
| Country of Manufacture | Italy |
| Height | 0.67 |
| Length | 2.58 |
| Width | 0.67 |
| Weight | 0.11 |
| Side 1 Size | 1/4 (-04) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 9/16-18 (-04) |
| Side 2 Type | ORFS |
Description

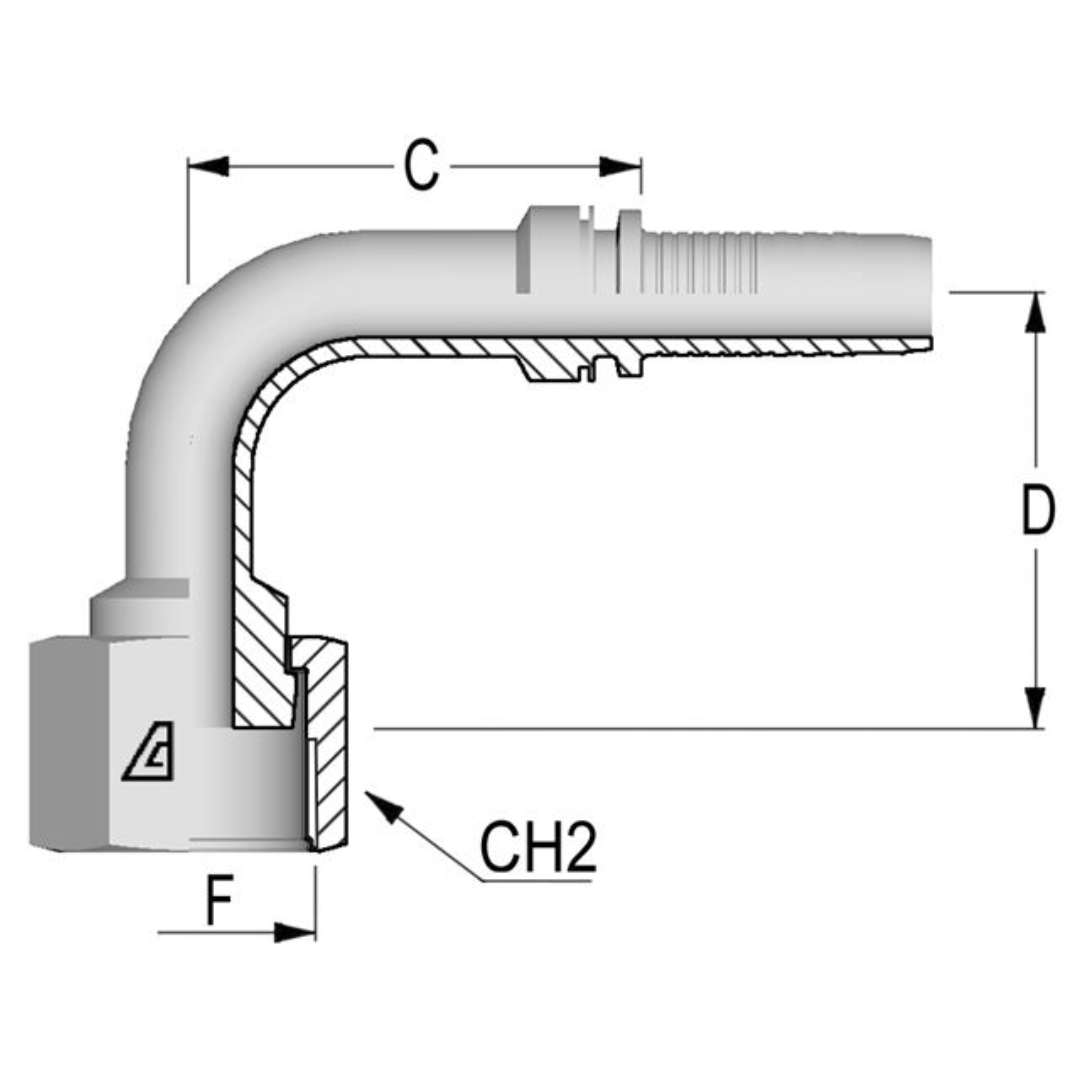

The Alfagomma A-FO9L Two-Piece Fittings are 90-degree, carbon steel hose fittings designed for use with wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech hoses ranging from ³⁄₁₆" to 2" in diameter. These fittings feature a two-piece insert that includes a ferrule—a metal or plastic component that tightly compresses the hose onto the fitting, creating a secure, leak-proof seal. The key difference between two-piece and one-piece fittings is that two-piece fittings consist of separate components—the ferrule and the fitting body—allowing for more flexibility in installation and replacement, while one-piece fittings are pre-assembled for quicker installation but offer less flexibility. The A-FO9L fitting has a 90° ORFS (O-Ring Face Seal) female swivel connection with a long drop, ideal for high-pressure fluid systems where extra clearance is needed. These fittings are compatible with Alfabiotech 3000 (1 ¼" and 1 ½") and Alfabiotech 4000 (³⁄₈" to 1 ¼") hoses, as well as smaller ID spiral wire reinforced hoses, providing a reliable and durable connection for demanding industrial applications.
