Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 45-Degree |
| Fitting Style | Swivel |
| Series | A-FBO4 |
| Country of Manufacture | Italy |
| Height | 0.75 |
| Length | 3.5 |
| Width | 0.75 |
| Weight | 0.1 |
| Side 1 Size | 1/4 (-04) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 1/4-19 (-04) |
| Side 2 Type | BSPP |
Description

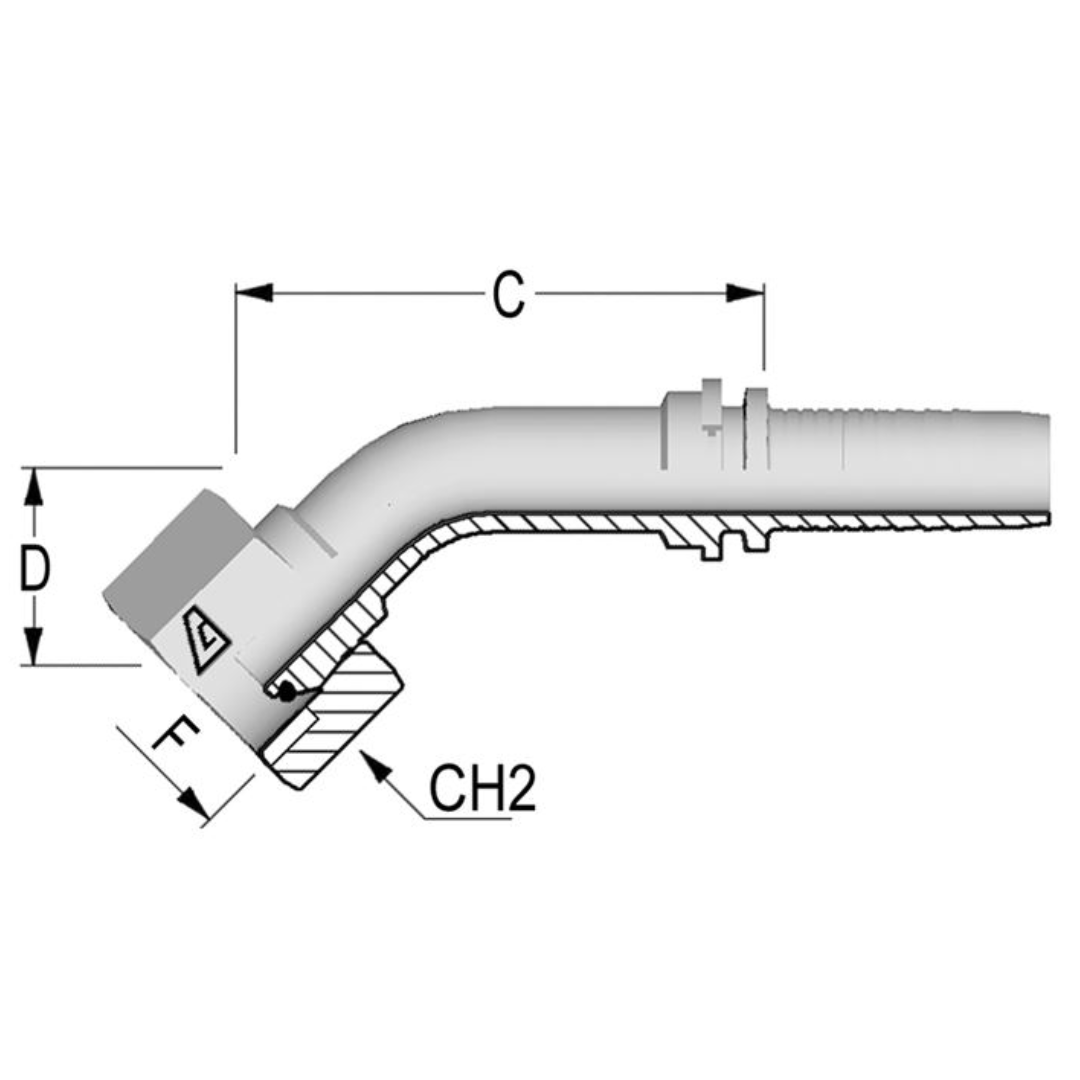

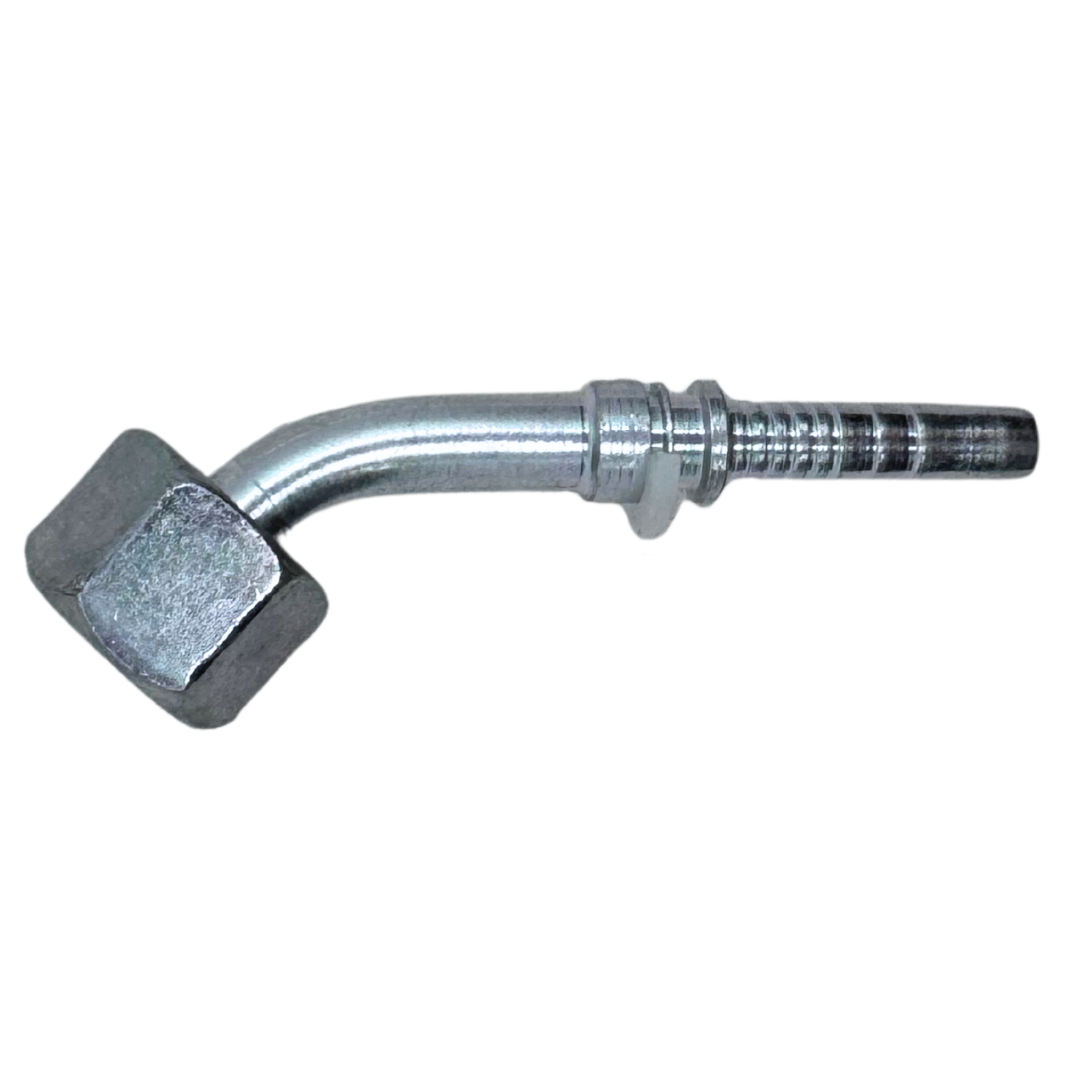

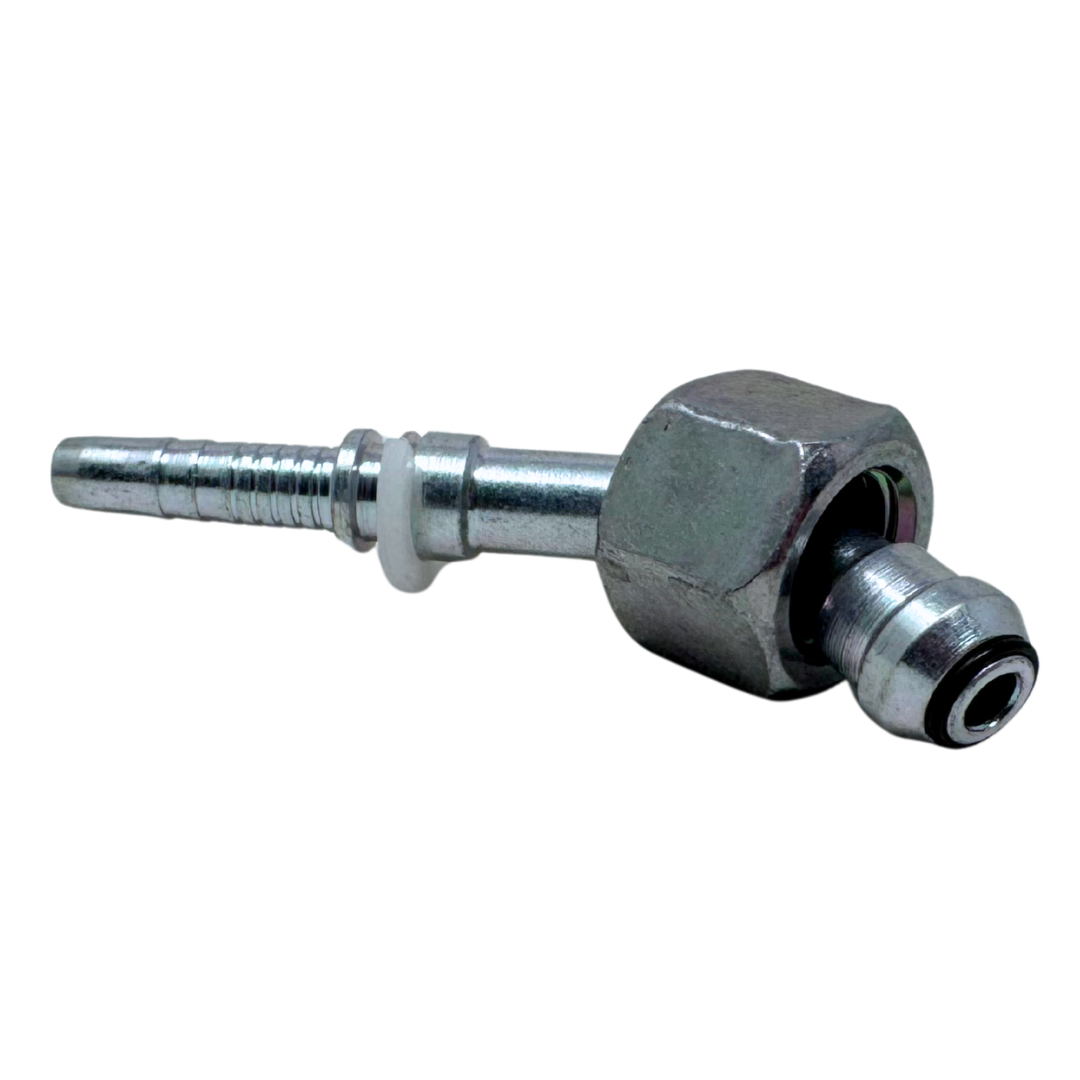

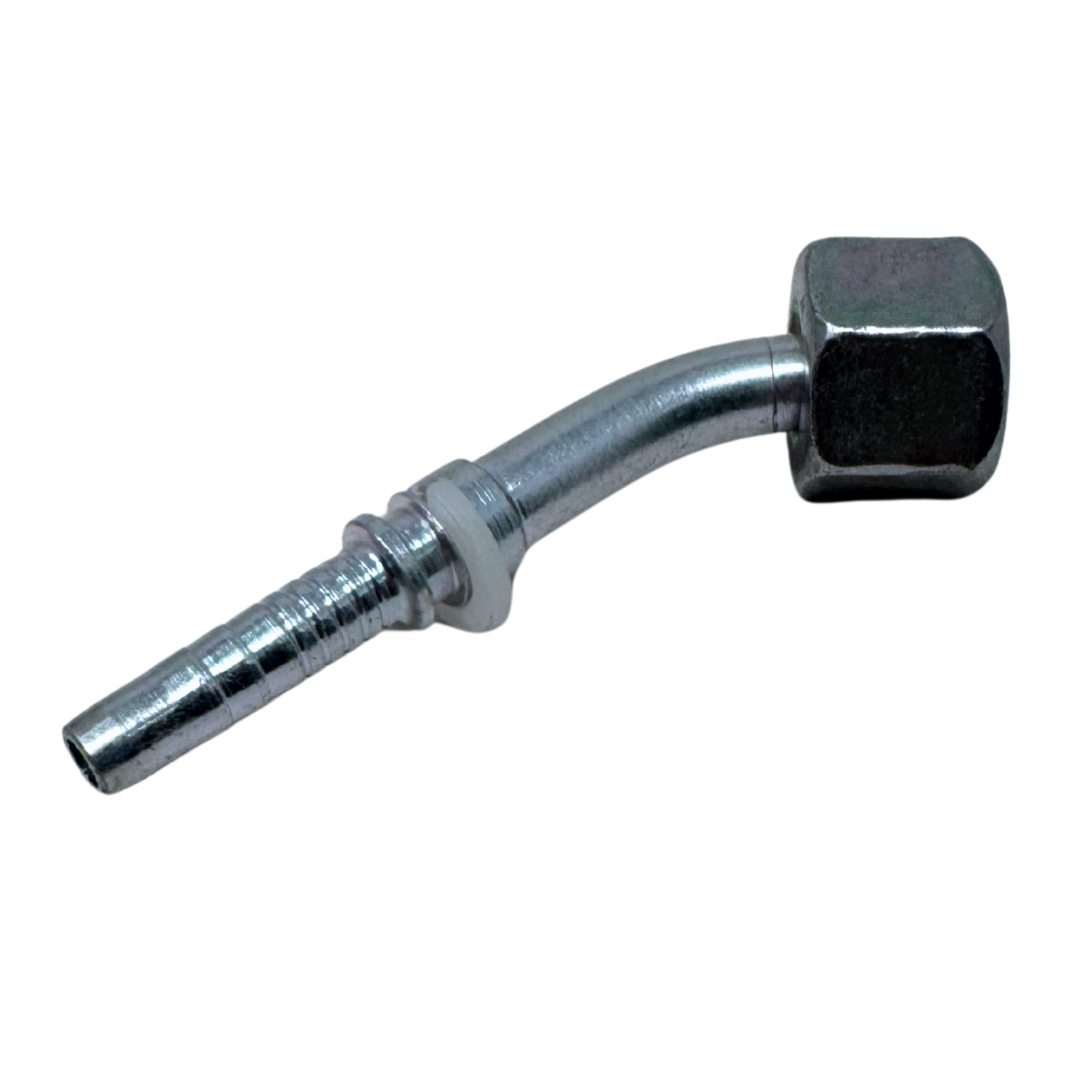

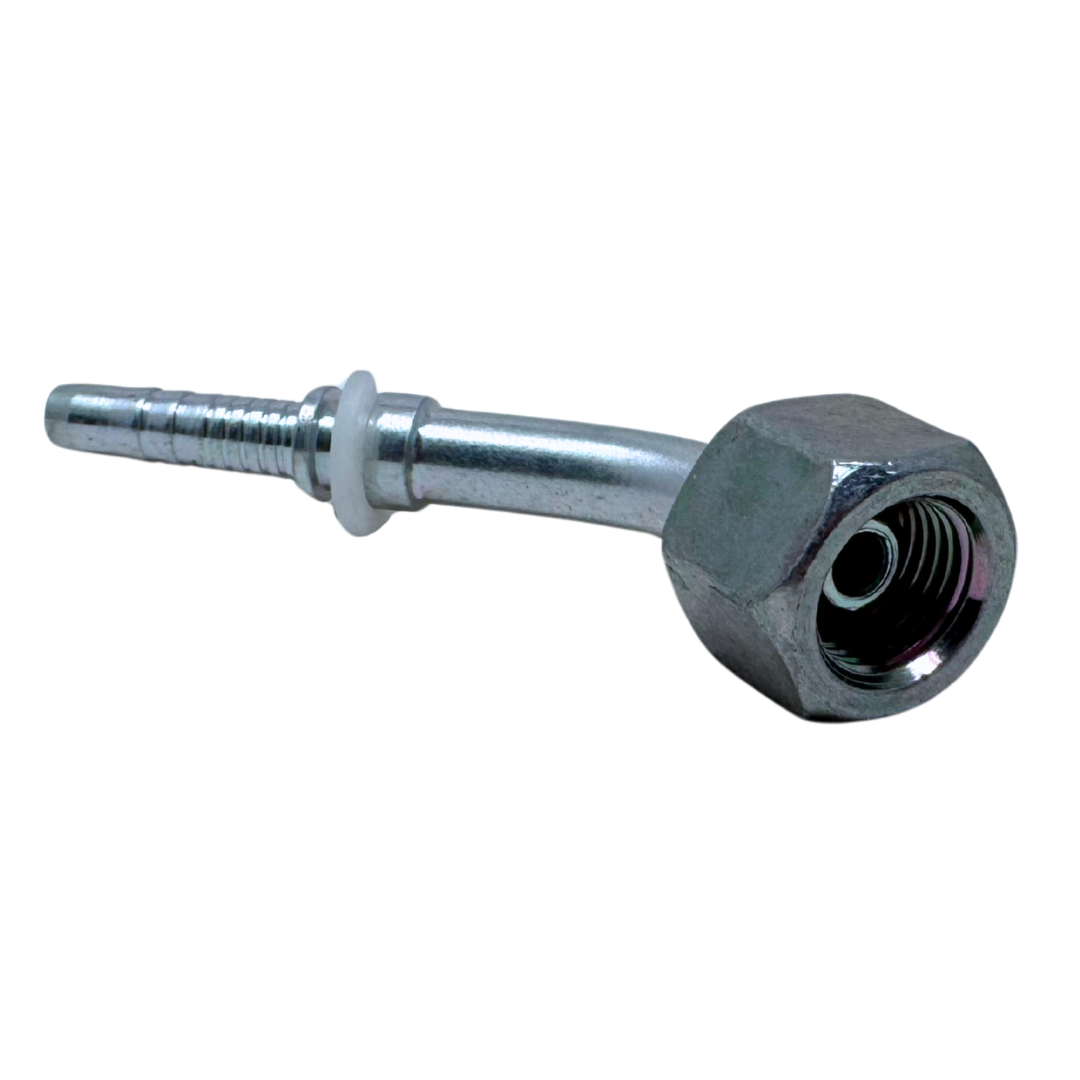

The Alfagomma A-FBO4 Two-Piece Fittings are designed to connect hoses to BSP (British Standard Pipe) O-ring female swivel 60° cone connections at a 45-degree angle. Made from carbon steel, these fittings consist of two parts: the hose end and a separate O-ring female swivel. The ferrules, small cylindrical rings, are used to secure the hose to the fitting, ensuring a tight seal that prevents leaks under pressure. The key difference between two-piece and one-piece fittings is that two-piece fittings allow for easier maintenance, as each component can be replaced individually, while one-piece fittings are a single unit that cannot be separated. The A-FBO4 fittings are suitable for use with wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and smaller ID spiral wire reinforced hoses, providing a reliable and high-performance solution for fluid systems.
