Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | A-MNPT |
| Country of Manufacture | Italy |
| Height | 0.47 |
| Length | 1.56 |
| Width | 0.47 |
| Weight | 0.03 |
| Side 1 Size | 3/16 (-03) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 1/8-27 (-02) |
| Side 2 Type | NPT |
Description

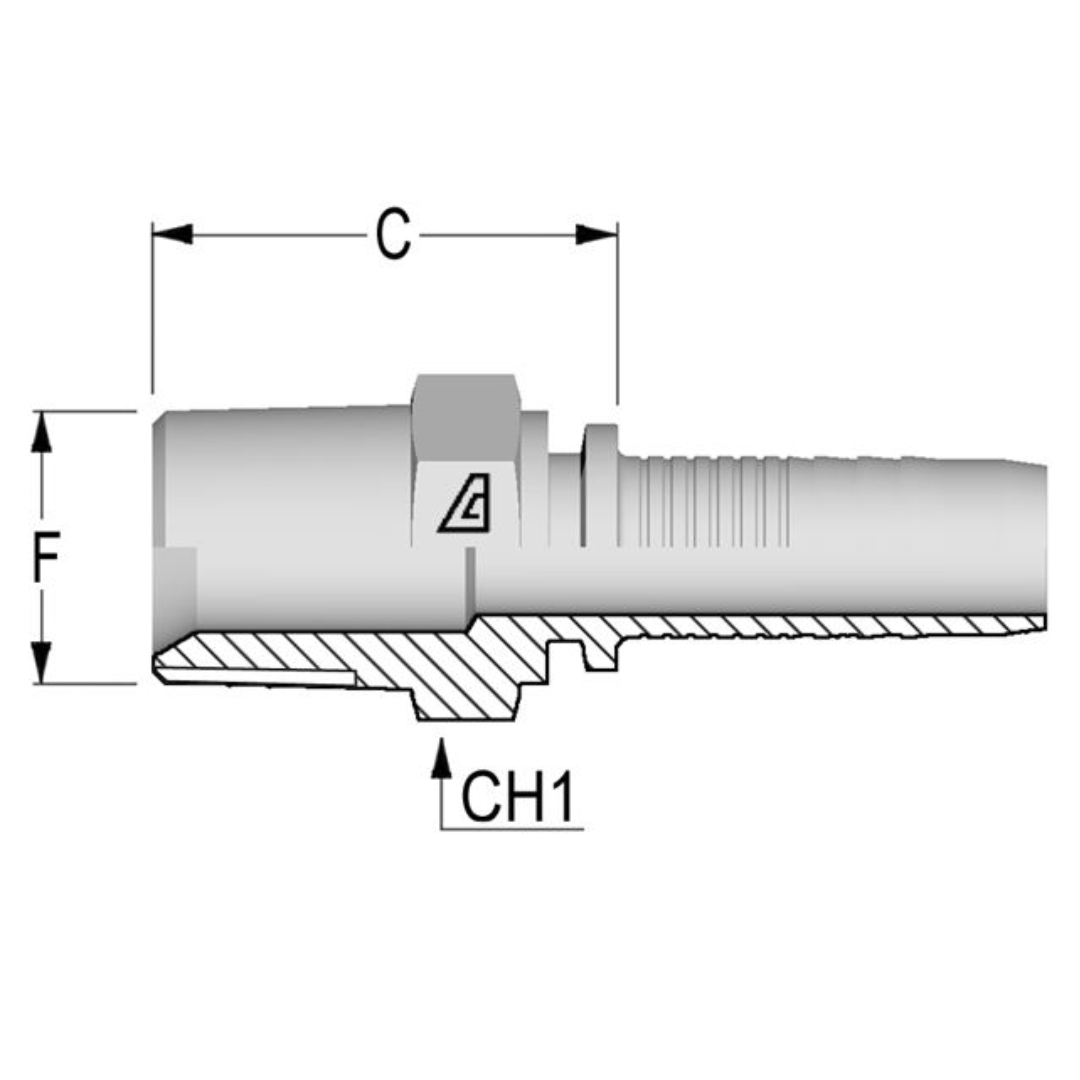

The Alfagomma A-MNPT Two-Piece Fittings are straight, carbon steel fittings designed to connect wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech hoses with sizes ranging from ³⁄₁₆" to 2" in diameter. These fittings feature a two-piece insert, which includes a ferrule—a metal or plastic component that tightly compresses the hose onto the fitting, ensuring a secure, leak-proof seal. The main difference between two-piece and one-piece fittings is that two-piece fittings allow for more flexibility during installation, as the ferrule and fitting body are separate, whereas one-piece fittings are pre-assembled and ready to use. The A-MNPT fittings, with a male NPTF 60° seat, are ideal for high-pressure applications, providing a durable, reliable connection for Alfabiotech 3000 (1 ¼" and 1 ½") and Alfabiotech 4000 (³⁄₈" to 1 ¼") hoses, as well as smaller ID spiral wire reinforced hoses. These fittings are essential for fluid power systems requiring long-lasting and secure hose connections.
