Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Minneapolis, Minnesota |
| Material | Zinc |
| Shape | 90-Degree |
| Style | 90-Degree, Standard Pressure |
| Pressure Rating | 5000 |
| Fitting Style | Standard |
| Seal Material | Viton Extreme (ETP) |
| Series | SS90 MORB X MORFS |
| Country of Manufacture | United States |
| Length | 3.045 |
| Side 1 Gender | Male |
| Side 1 Size | -08 |
| Side 1 Type | ORFS |
| Side 2 Gender | Male |
| Side 2 Size | -10 |
| Side 2 Type | ORB |
Description

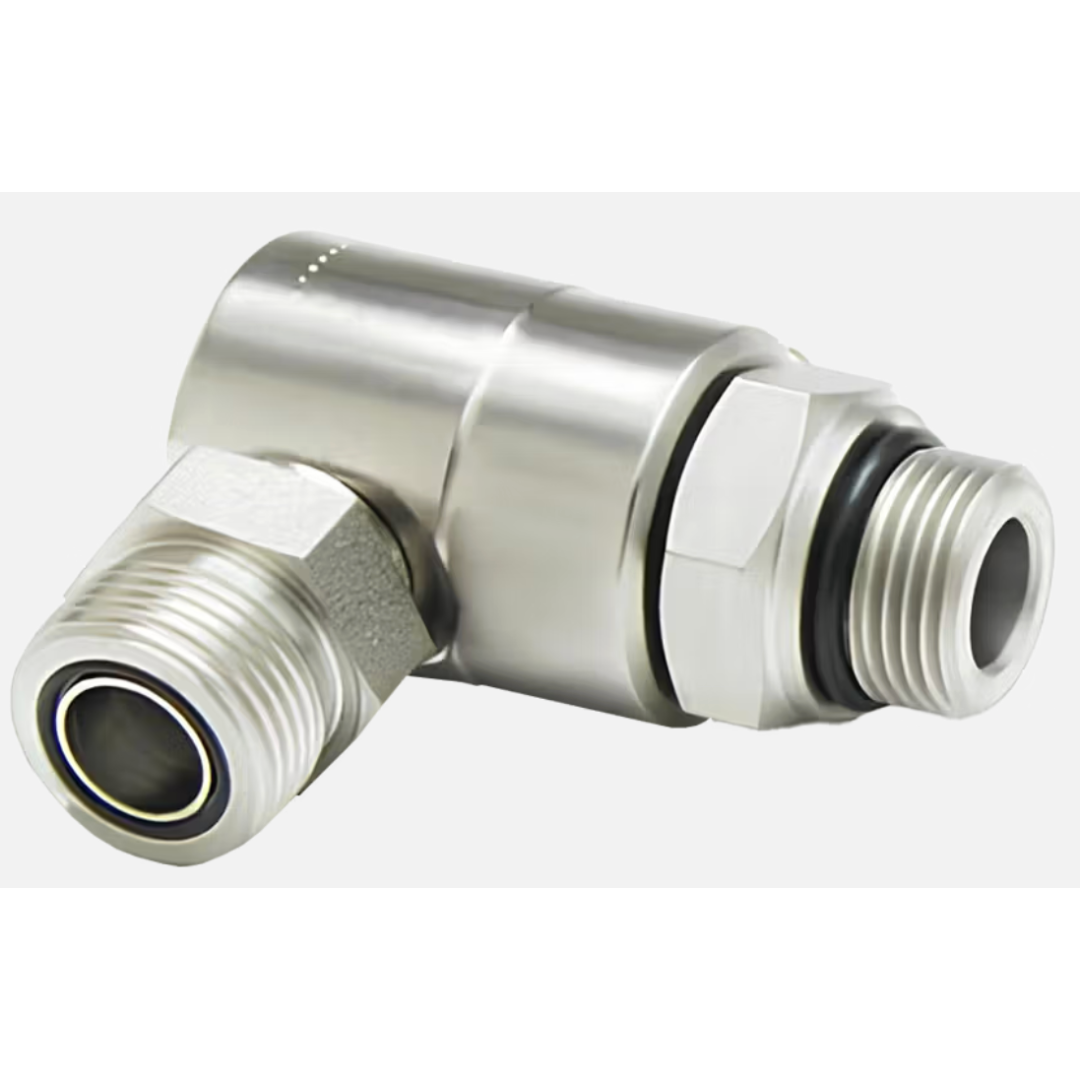

Super Swivels 90-Degree Standard Pressure Male O-Ring Boss (ORB) x Male Face Seal (MFS) hydraulic swivels provide free rotation on one axis while creating a compact right-angle change in the fluid path. The male SAE straight-thread ORB connection uses an O-ring for dependable sealing at the port, while the male O-ring face seal—also called an ORFS connection—provides reliable, leak-resistant performance at the hose connection. The full-flow design reduces hose-line complexity and bend radius, allowing hoses and piping to move more freely while helping prevent twisting, kinking, shock damage, and premature hose failure. A heavy-duty ball-bearing race withstands side loads to minimize internal seal wear and leakage, while the ORB-to-MFS configuration connects directly to compatible hydraulic lines without additional adapters. Available in matching and reducing configurations from -4 through -24, these hydraulic swivel fittings have maximum working pressures from 4,000 to 5,000 PSI, depending on size.
Warning: Select the correct swivel size and seal material for the system fluid, temperature, operating pressure, and application. Never exceed the maximum pressure specified for the individual part number. Depressurize the hydraulic system before installation, inspection, or service; escaping fluid under pressure can penetrate the skin and cause serious injury. Do not apply pipe-thread sealant or sealing tape to either connection. Verify that the ORB and face-seal O-rings and all sealing surfaces are clean, undamaged, properly seated, and compatible with the hydraulic fluid. Avoid overtightening and replace any swivel that is worn, damaged, or leaking.
