Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Minneapolis, Minnesota |
| Material | Nickel |
| Shape | 90-Degree |
| Style | 90-Degree, Standard Pressure |
| Pressure Rating | 3500 |
| Fitting Style | Standard |
| Seal Material | Aflas (AL) |
| Series | SS90 MJIC X MJIC |
| Country of Manufacture | United States |
| Length | 3.07 |
| Side 1 Gender | Male |
| Side 1 Size | -08 |
| Side 1 Type | JIC |
| Side 2 Gender | Male |
| Side 2 Size | -08 |
| Side 2 Type | JIC |
Description

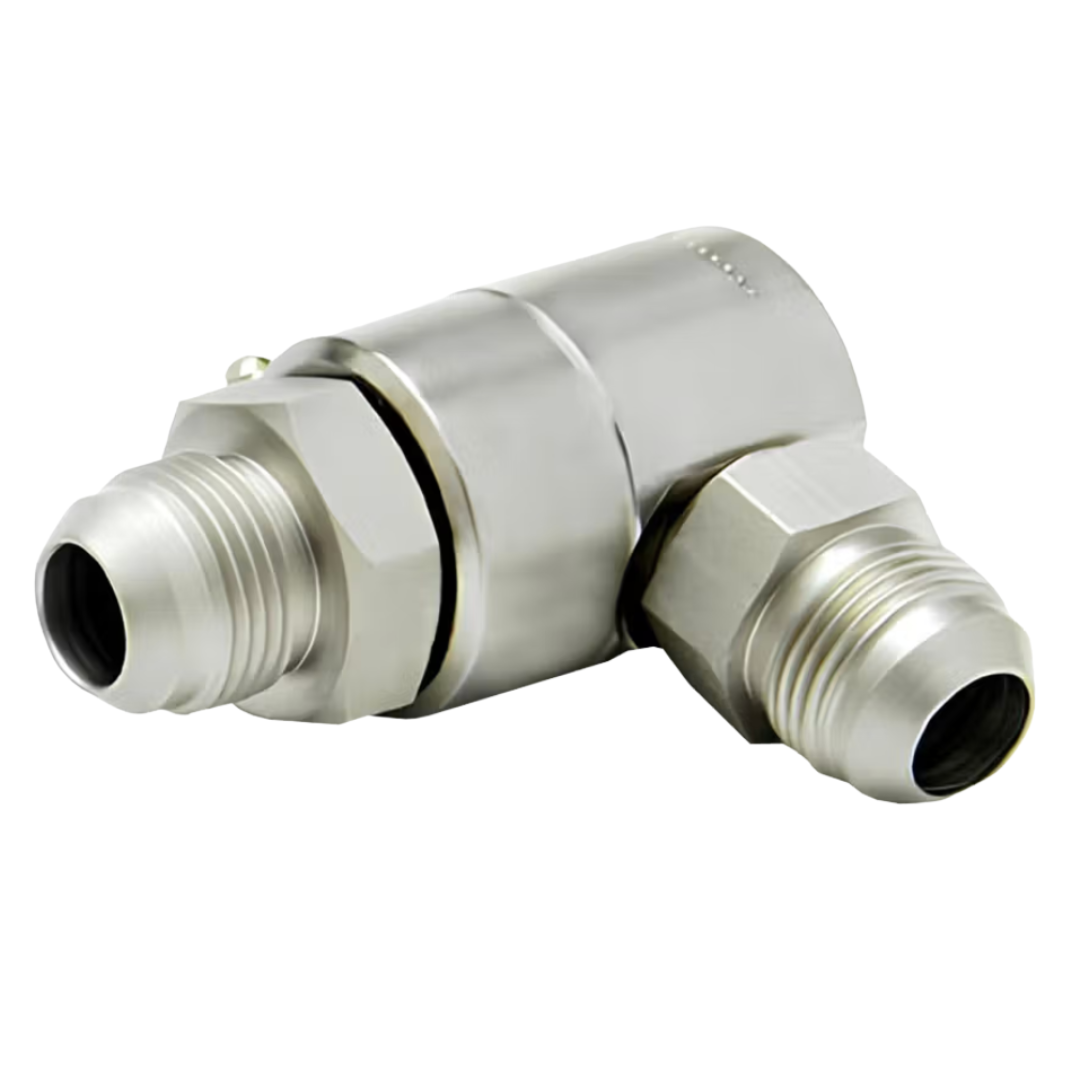

Super Swivels 90-Degree Standard Pressure Male JIC x Male JIC hydraulic swivels provide free rotation on one axis while creating a compact right-angle change in the fluid path. Both connections use industry-standard 37-degree JIC flare sealing surfaces for dependable metal-to-metal seals in hydraulic systems. The full-flow design reduces hose-line complexity and bend radius, allowing hoses and piping to move more freely while helping prevent twisting, kinking, shock damage, and premature hose failure. A heavy-duty ball-bearing race withstands side loads to minimize internal seal wear and leakage, while the male JIC-to-male JIC configuration connects directly to compatible hydraulic hose ends without additional adapters. Available in JIC sizes from -4 through -24, these 90-degree hydraulic swivel fittings have a maximum working pressure of 3,500 PSI.
Warning: Select the correct swivel size and seal material for the system fluid, temperature, operating pressure, and application. Never exceed the maximum working pressure specified for the individual part number. Depressurize the hydraulic system before installation, inspection, or service; escaping fluid under pressure can penetrate the skin and cause serious injury. Do not apply pipe-thread sealant or sealing tape to either JIC connection; both seal at the 37-degree flare. Keep all flare surfaces clean and undamaged, avoid overtightening, and replace any swivel that is worn, damaged, or leaking.
