Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Minneapolis, Minnesota |
| Material | Zinc |
| Shape | 90-Degree |
| Style | 90-Degree, Standard Pressure |
| Pressure Rating | 5000 |
| Fitting Style | Standard |
| Seal Material | Viton |
| Series | SS90 FNPT X FNPT |
| Country of Manufacture | United States |
| Height | 1.495 |
| Length | 2.82 |
| Width | 1.495 |
| Side 1 Gender | Female |
| Side 1 Size | -08 |
| Side 1 Type | NPTF |
| Side 2 Gender | Female |
| Side 2 Size | -08 |
| Side 2 Type | NPTF |
Description

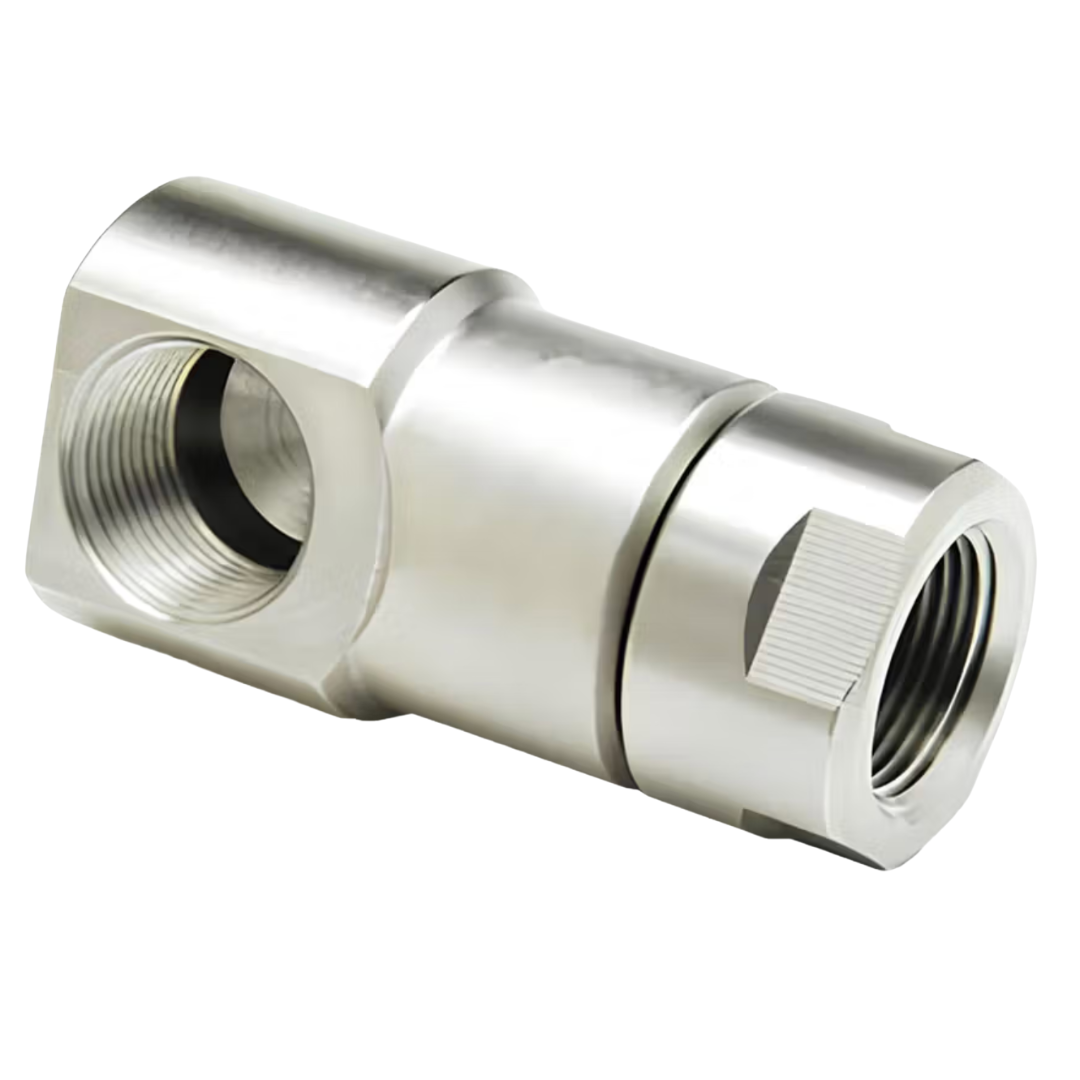

Super Swivels 90-Degree Standard Pressure Female Pipe (NPTF) x Female Pipe (NPTF) hydraulic swivels provide free rotation on one axis while creating a compact right-angle change in the fluid path. The full-flow design reduces hose-line complexity and bend radius, allowing hoses and piping to move more freely while helping prevent twisting, kinking, shock damage, and premature hose failure. A heavy-duty ball-bearing race withstands side loads to minimize seal wear and leakage, and the female NPTF connections attach directly to compatible hydraulic lines without additional adapters. Available in sizes from 1/8" through 2", these hydraulic swivel fittings are rated for maximum working pressures from 3,000 to 5,000 PSI, depending on size, with multiple plating and seal options available.
Warning: Select the correct swivel size, seal material, and pressure rating for the system fluid, temperature, operating pressure, and application. Never exceed the maximum pressure specified for the individual part number. Depressurize the hydraulic system before installation, inspection, or service; escaping fluid under pressure can penetrate the skin and cause serious injury. Use a compatible hydraulic thread sealant on both NPTF connections, keeping excess sealant away from the fluid passage. Inspect the swivel regularly and replace it if damaged, excessively worn, or leaking.
