Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Minneapolis, Minnesota |
| Material | Zinc |
| Shape | 90-Degree |
| Style | 90-Degree, Standard Pressure |
| Pressure Rating | 3500 |
| Fitting Style | Standard |
| Seal Material | Viton |
| Series | SS90 FNPT X MNPT |
| Country of Manufacture | United States |
| Length | 2.67 |
| Side 1 Gender | Female |
| Side 1 Size | -06 |
| Side 1 Type | NPTF |
| Side 2 Gender | Male |
| Side 2 Size | -06 |
| Side 2 Type | NPTF |
Description

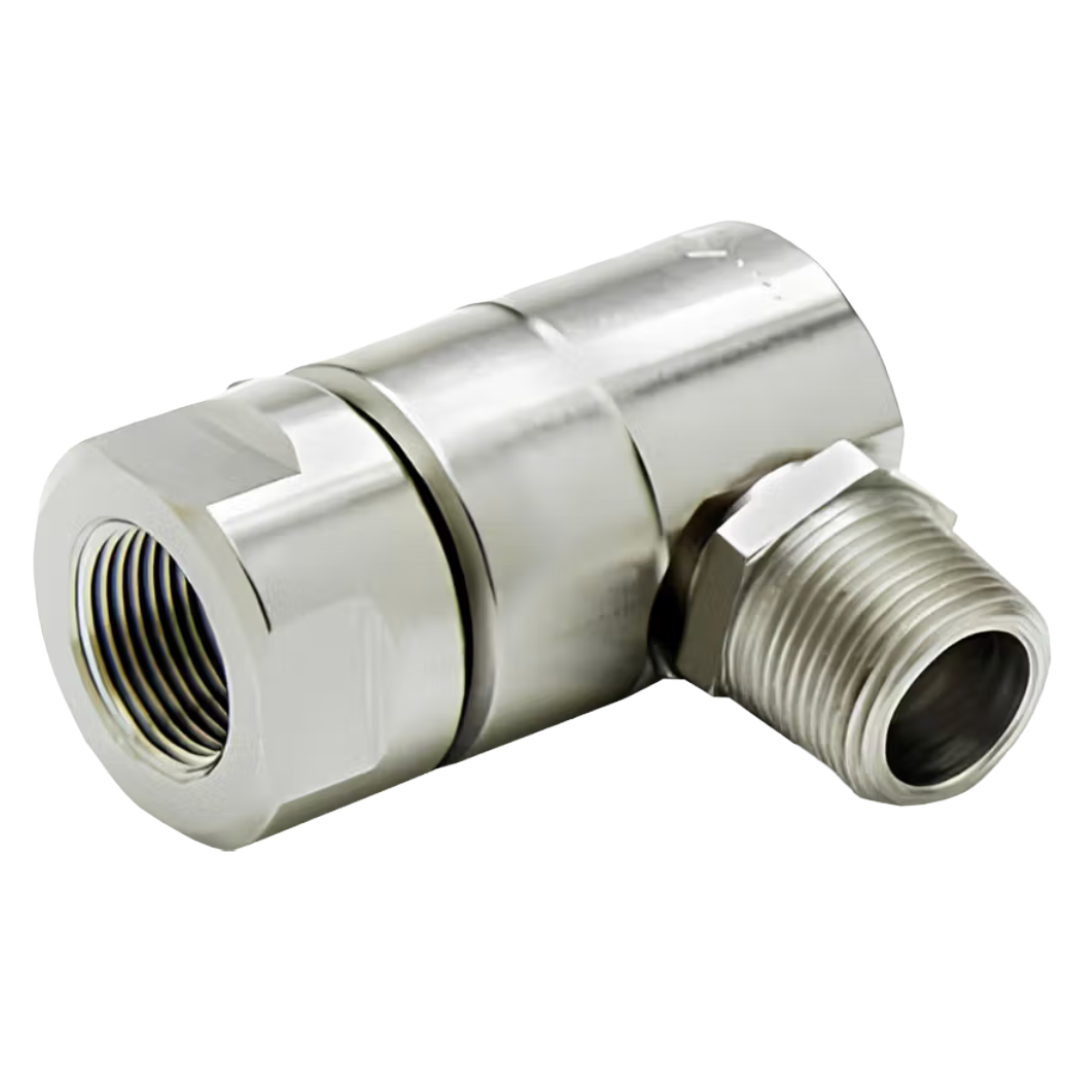

Super Swivels 90-Degree Standard Pressure Female Pipe (NPTF) x Male Pipe (NPTF) hydraulic swivels provide free rotation on one axis while creating a compact right-angle change in the fluid path. The full-flow design reduces hose-line complexity and bend radius, allowing hoses and piping to move more freely while helping prevent twisting, kinking, shock damage, and premature hose failure. A heavy-duty ball-bearing race withstands side loads to minimize seal wear and leakage, and the female-to-male NPTF configuration connects directly to compatible hydraulic lines without additional adapters. Available in matching and reducing configurations from 1/4" through 1-1/2" NPTF, these hydraulic swivel fittings have a maximum working pressure of 3,500 PSI.
Warning: Select the correct swivel size and seal material for the system fluid, temperature, pressure, and application. Never exceed the maximum working pressure specified for the individual part number. Depressurize the hydraulic system before installation, inspection, or service; escaping fluid under pressure can penetrate the skin and cause serious injury. Apply a compatible hydraulic thread sealant to both NPTF connections, keeping excess sealant away from the fluid passage. Avoid overtightening, inspect the swivel regularly, and replace it if damaged, excessively worn, or leaking.
