Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Minneapolis, Minnesota |
| Material | Zinc |
| Shape | 90-Degree |
| Style | 90-Degree, Standard Pressure |
| Pressure Rating | 3500 |
| Fitting Style | Standard |
| Seal Material | Aflas (AL) |
| Series | SS90 MORB X NPSM |
| Country of Manufacture | United States |
| Height | 0.875 |
| Length | 2.727 |
| Width | 0.875 |
| Side 1 Gender | Female |
| Side 1 Size | -06 |
| Side 1 Type | NPSM |
| Side 2 Gender | Male |
| Side 2 Size | -06 |
| Side 2 Type | ORB |
Description

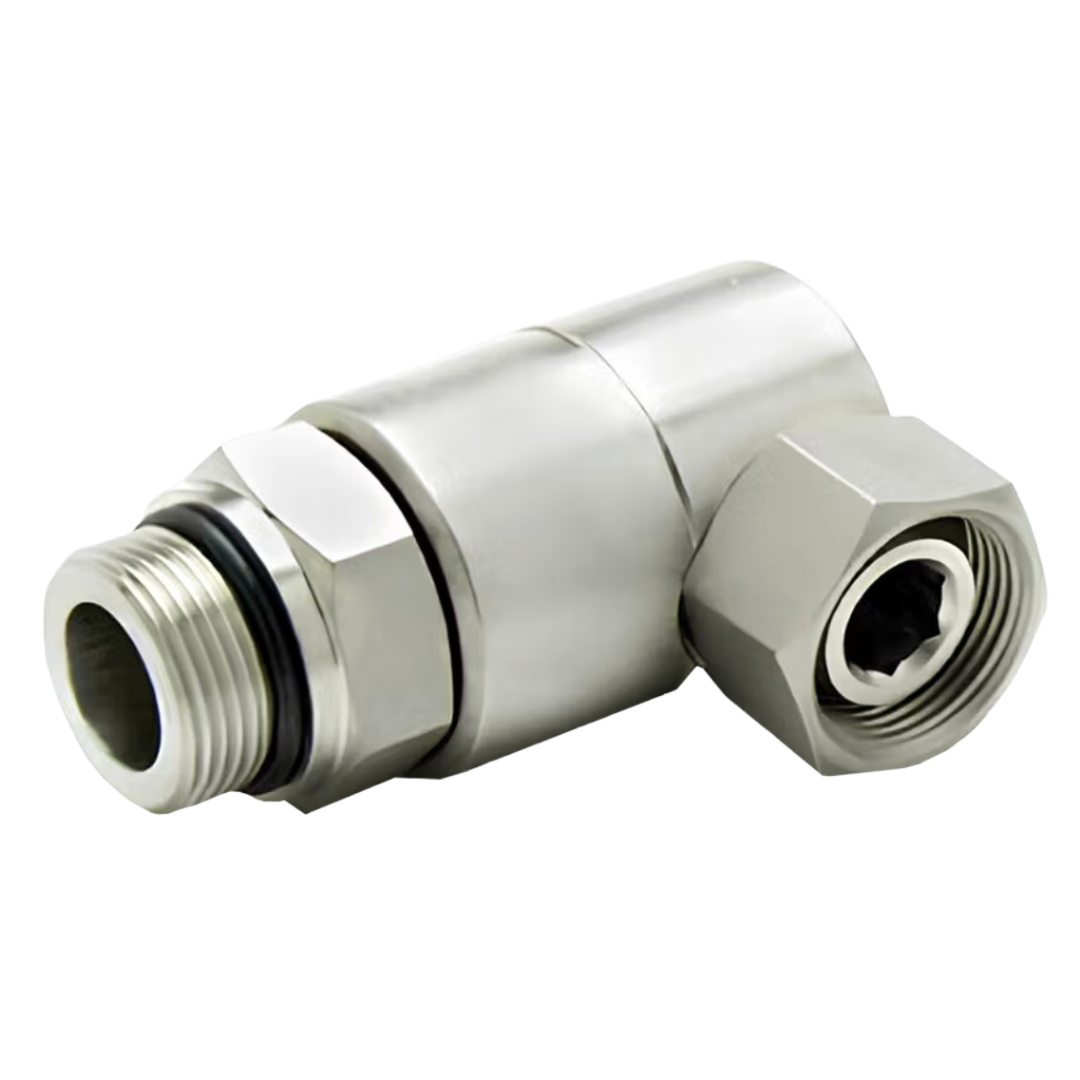

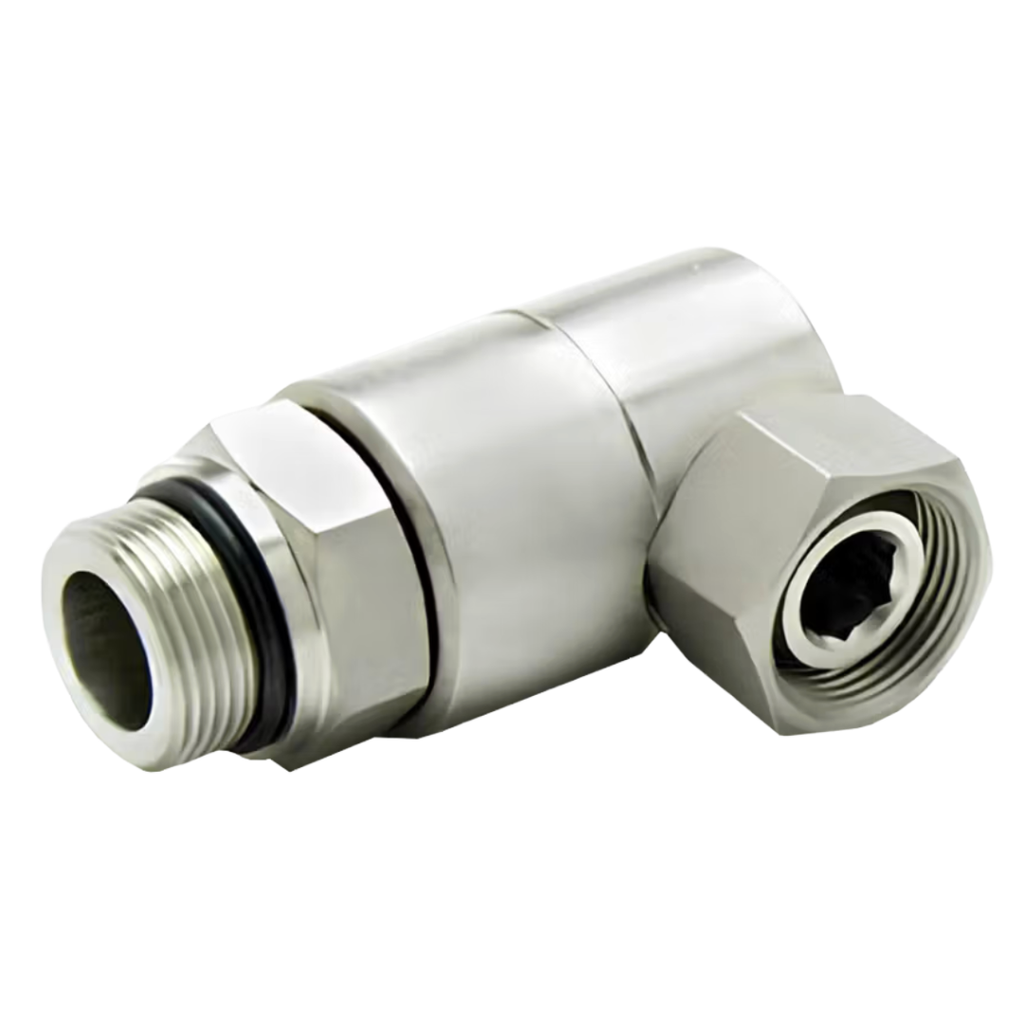

Super Swivels 90-Degree Standard Pressure Male O-Ring Boss (ORB) x Female Pipe Swivel (NPSM) hydraulic swivels provide free rotation on one axis while creating a compact right-angle change in the fluid path. The male SAE straight-thread ORB connection uses an O-ring for dependable, leak-resistant sealing, while the NPSM swivel nut seals against the seat of a compatible male pipe fitting. The full-flow design reduces hose-line complexity and bend radius, allowing hoses and piping to move more freely while helping prevent twisting, kinking, shock damage, and premature hose failure. A heavy-duty ball-bearing race withstands side loads to minimize internal seal wear and leakage, while the ORB-to-NPSM configuration connects directly to compatible hydraulic lines without additional adapters. Available configurations include male ORB sizes from -4 through -24 and NPSM sizes from 1/4" through 1-1/2", with a maximum working pressure of 3,500 PSI.
Warning: Select the correct swivel size and seal material for the system fluid, temperature, operating pressure, and application. Never exceed the maximum working pressure specified for the individual part number. Depressurize the hydraulic system before installation, inspection, or service; escaping fluid under pressure can penetrate the skin and cause serious injury. Do not apply pipe-thread sealant or sealing tape to either connection. Verify that the ORB O-ring and sealing surfaces are clean, undamaged, properly seated, and compatible with the hydraulic fluid. Confirm that the NPSM connection is paired with a compatible mating seat, avoid overtightening, and replace any swivel that is worn, damaged, or leaking.
