Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Minneapolis, Minnesota |
| Material | Zinc |
| Shape | Straight |
| Style | Inline, Standard Pressure |
| Pressure Rating | 5000 |
| Fitting Style | Standard |
| Seal Material | Viton Extreme (ETP) |
| Series | SS MORB X MJIC |
| Country of Manufacture | United States |
| Height | 1.0 |
| Length | 2.54 |
| Width | 1.0 |
| Side 1 Gender | Male |
| Side 1 Size | -06 |
| Side 1 Type | ORB |
| Side 2 Gender | Male |
| Side 2 Size | -06 |
| Side 2 Type | JIC |
Description

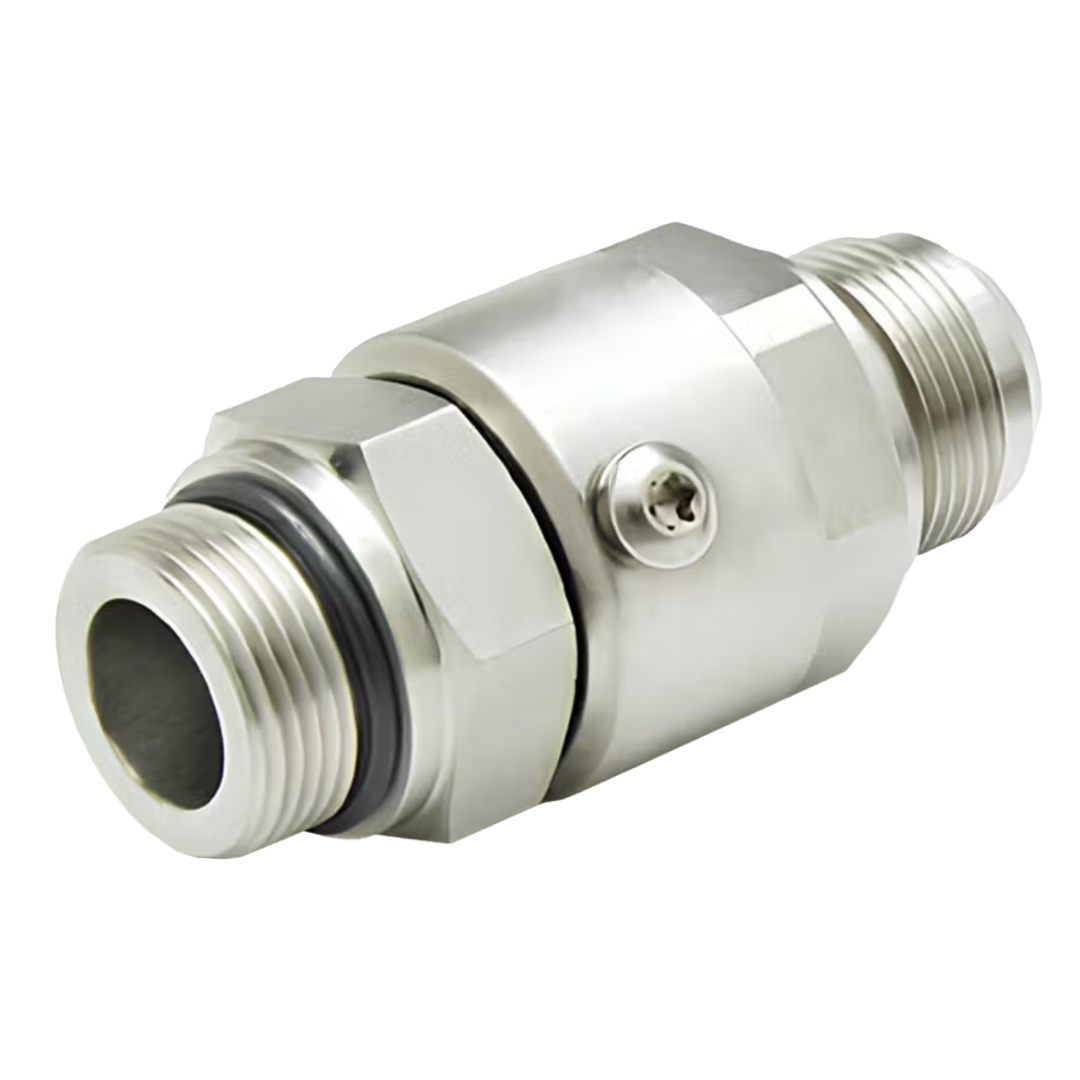

Super Swivels Male O-Ring Boss (ORB) x Male JIC (37-degree) inline hydraulic swivels provide a compact, straight-through rotating transition between an SAE O-ring boss port and a female JIC 37-degree flare hose end or fitting. Their one-piece barrel-and-stem construction and integrated ball-bearing race minimize rotational friction while withstanding heavy side loads, helping reduce hose twisting, kinking, premature seal wear, leaks, system shock, and downtime. Unlike a standard hydraulic adapter—which creates a fixed transition between connection types—a live hydraulic swivel accommodates repeated hose movement during operation. By combining the ORB-to-JIC transition and rotating joint in one component, this design can eliminate additional adapters, reducing connection points, installation space, and overall hydraulic system cost.
Male ORB x Male JIC inline swivels are available in multiple sizes with zinc or nickel plating, several seal options, and model-specific maximum working pressures from 4,000 to 5,000 PSIG. Always confirm the selected part number’s ORB and JIC sizes, pressure rating, seal material, fluid compatibility, and operating temperature. Do not exceed the rated pressure, and fully depressurize the system before installation or service. A flexible connector is required at one end; Super Swivels are not recommended for breathing air, oxygen, or steam service. The installer is responsible for determining California Proposition 65 compliance.
