Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Minneapolis, Minnesota |
| Material | Nickel |
| Shape | 90-Degree |
| Style | 90-Degree, Standard Pressure |
| Pressure Rating | 3500 |
| Fitting Style | Standard |
| Seal Material | Viton Extreme (ETP) |
| Series | SS90 MJIC X FNPSM |
| Country of Manufacture | United States |
| Height | 0.687 |
| Length | 2.887 |
| Width | 0.687 |
| Side 1 Gender | Female |
| Side 1 Size | -04 |
| Side 1 Type | NPSM |
| Side 2 Gender | Male |
| Side 2 Size | -06 |
| Side 2 Type | JIC |
Description

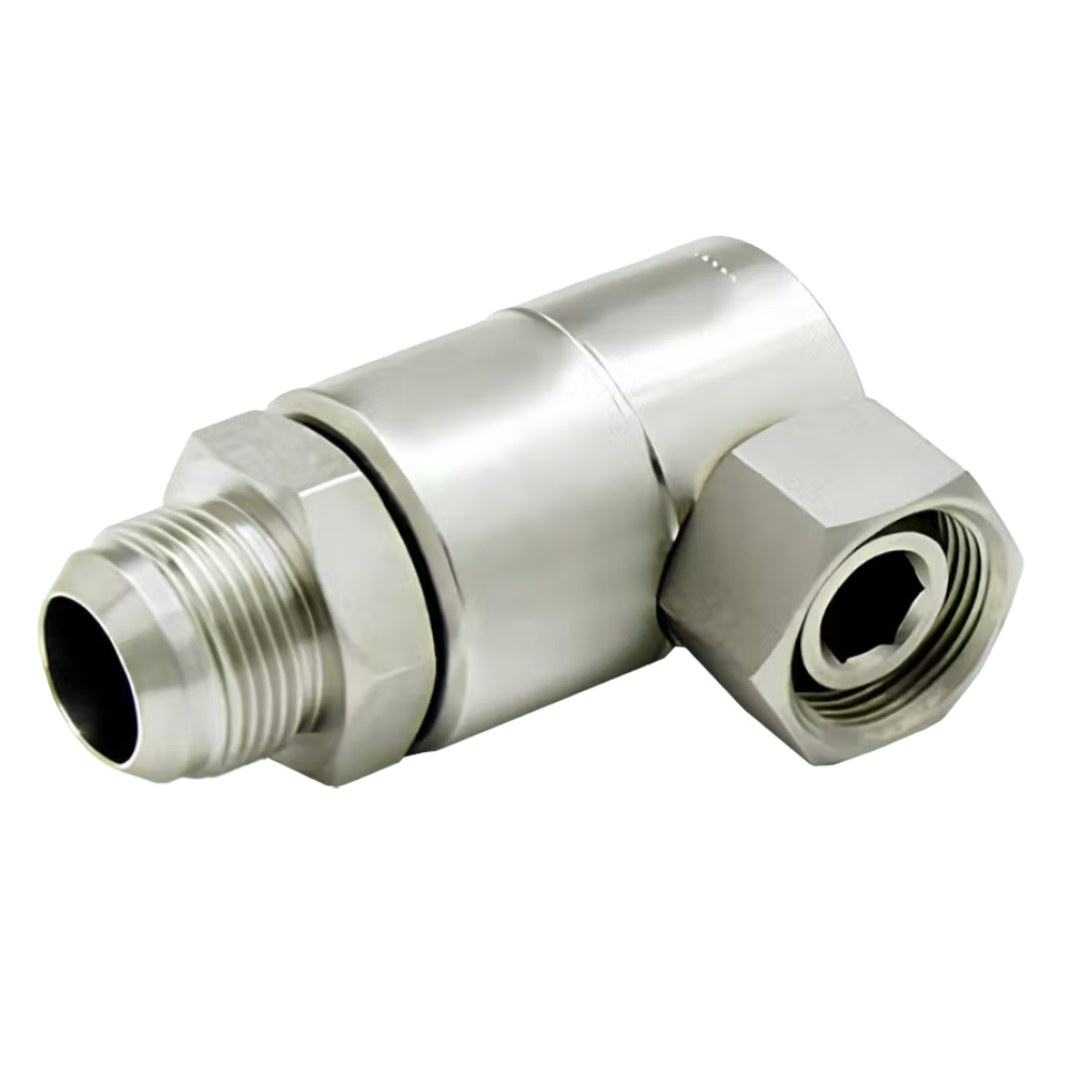

Super Swivels 90-Degree Standard Pressure Male JIC x Female Pipe Swivel (NPSM) hydraulic swivels provide free rotation on one axis while creating a compact right-angle change in the fluid path. The male JIC connection uses a 37-degree flare for a dependable metal-to-metal seal, while the NPSM swivel nut seals against the seat of a compatible male pipe fitting. The full-flow design reduces hose-line complexity and bend radius, allowing hoses and piping to move more freely while helping prevent twisting, kinking, shock damage, and premature hose failure. A heavy-duty ball-bearing race withstands side loads to minimize internal seal wear and leakage, while the JIC-to-NPSM configuration connects directly to compatible hydraulic lines without additional adapters. Available configurations include JIC sizes from -4 through -24 and NPSM sizes from 1/4" through 1-1/2", with a maximum working pressure of 3,500 PSI.
Warning: Select the correct swivel size and seal material for the system fluid, temperature, operating pressure, and application. Never exceed the maximum working pressure specified for the individual part number. Depressurize the hydraulic system before installation, inspection, or service; escaping fluid under pressure can penetrate the skin and cause serious injury. Do not apply pipe-thread sealant or sealing tape to either connection; the JIC connection seals at its 37-degree flare, and the NPSM swivel seals against the mating fitting seat rather than through the threads. Confirm seat compatibility, keep all sealing surfaces clean and undamaged, avoid overtightening, and replace any swivel that is worn, damaged, or leaking.
