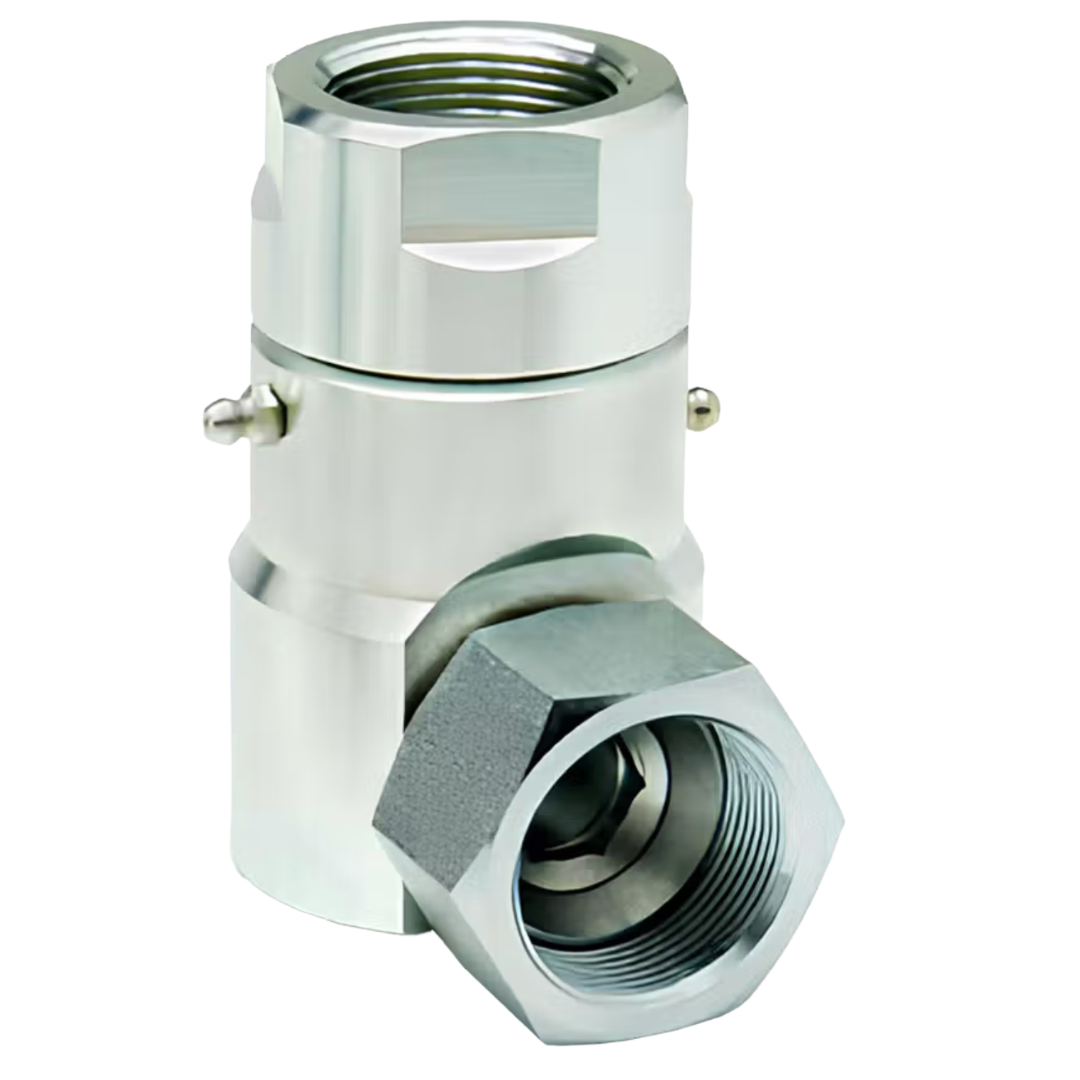

9SS4FP25XFJS4-Z-AL : Super Swivels 90-Degree Live Swivel, -04 Female JIC (7/16 - 20 UN) x -04 Female NPTF (1/4 - 18 NPTF), 3500psi, Zinc Plated, Aflas (AL) Seals

Super Swivels 90-Degree Standard Pressure Female Pipe (NPTF) x Female JIC Swivel Nut hydraulic swivels provide free rotation on one axis while creating a compact right-angle change in the fluid path. The female JIC connection uses a 37-degree flare sealing surface for a reliable metal-to-metal hydraulic connection, while the full-flow swivel design reduces hose-line complexity and bend radius. This allows hoses and piping to move more freely while helping prevent twisting, kinking, shock damage, and premature hose failure. A heavy-duty ball-bearing race withstands side loads to minimize seal wear and leakage, and the NPTF-to-JIC configuration connects directly to compatible hydraulic lines without additional adapters. Available configurations have 1/4" through 1-1/2" NPTF ports with JIC sizes from -4 through -24 and maximum working pressures from 3,500 to 4,500 PSI, depending on the part number.

Warning: Select the correct swivel size, seal material, and pressure rating for the system fluid, temperature, operating pressure, and application. Never exceed the maximum pressure specified for the individual part number. Depressurize the hydraulic system before installation, inspection, or service; escaping fluid under pressure can penetrate the skin and cause serious injury. Apply compatible hydraulic thread sealant only to the NPTF connection. Do not apply pipe-thread sealant to the JIC connection, which seals at the 37-degree flare. Avoid overtightening, inspect the swivel regularly, and replace it if damaged, excessively worn, or leaking.
